Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Convertible Parts

142 part groups · 18 illustrations

Illustrations

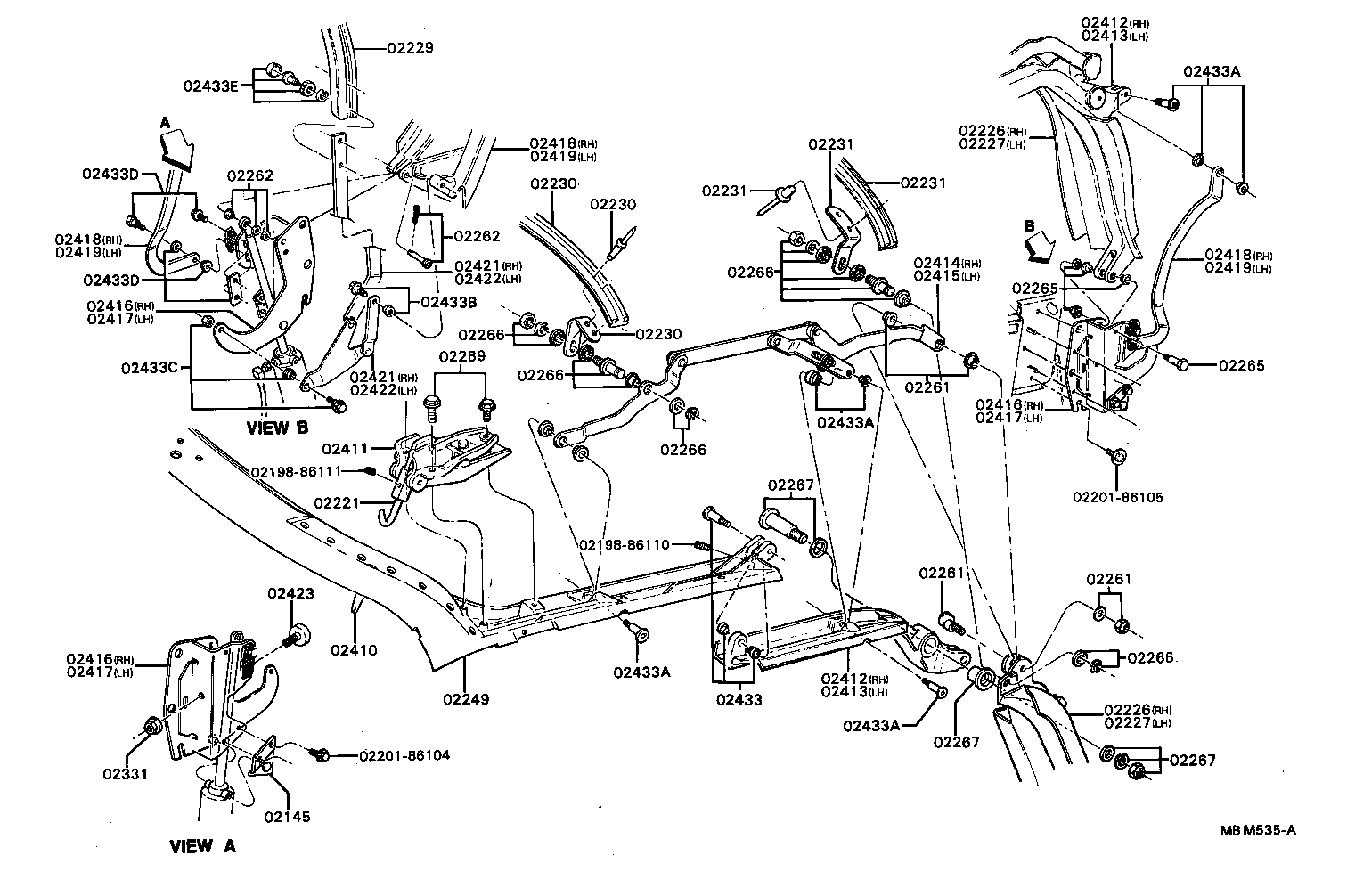

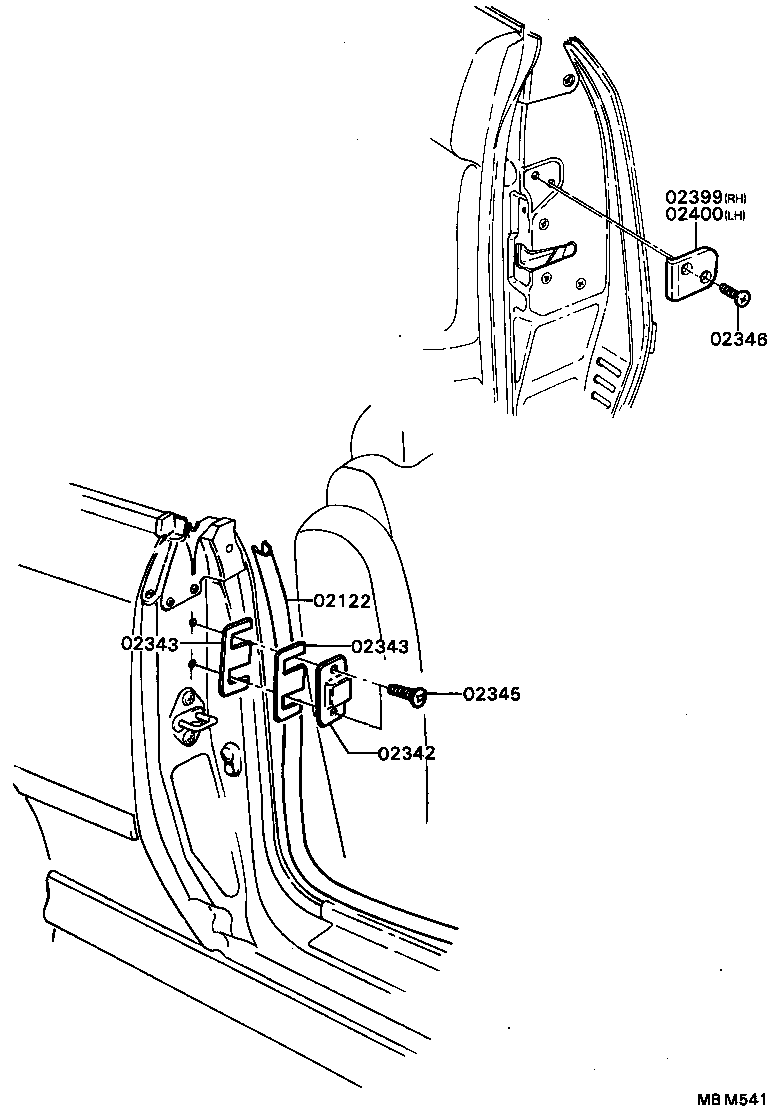

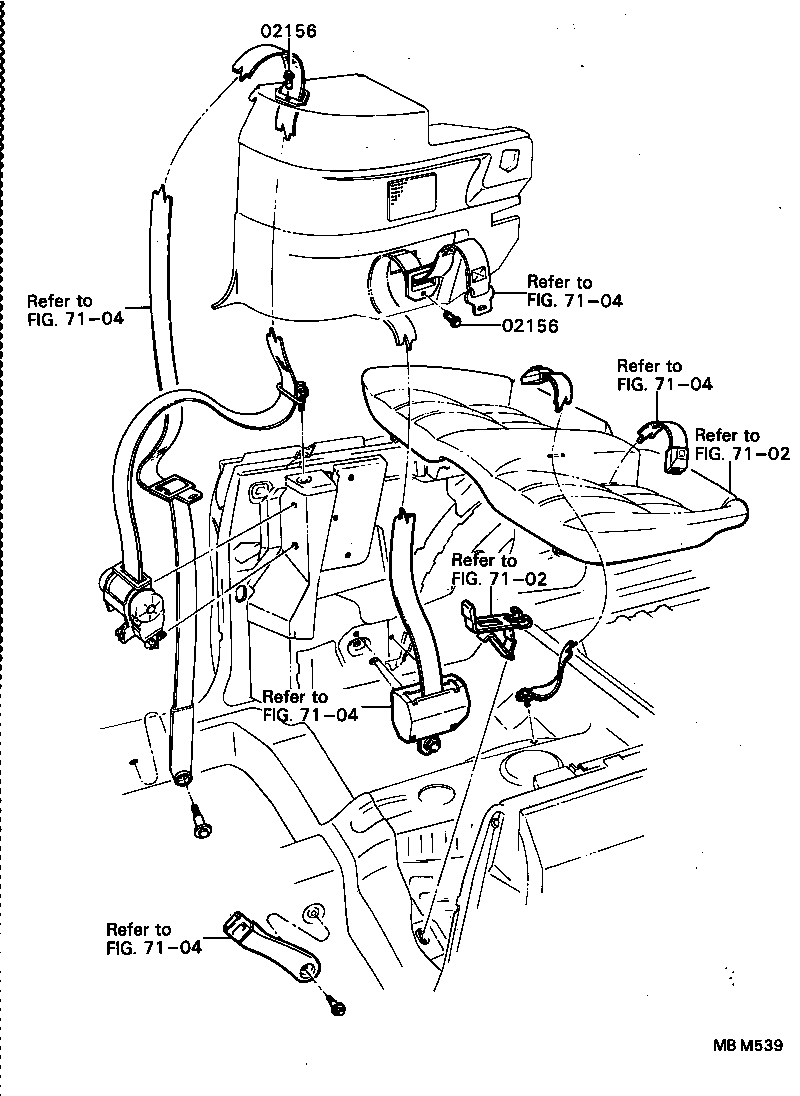

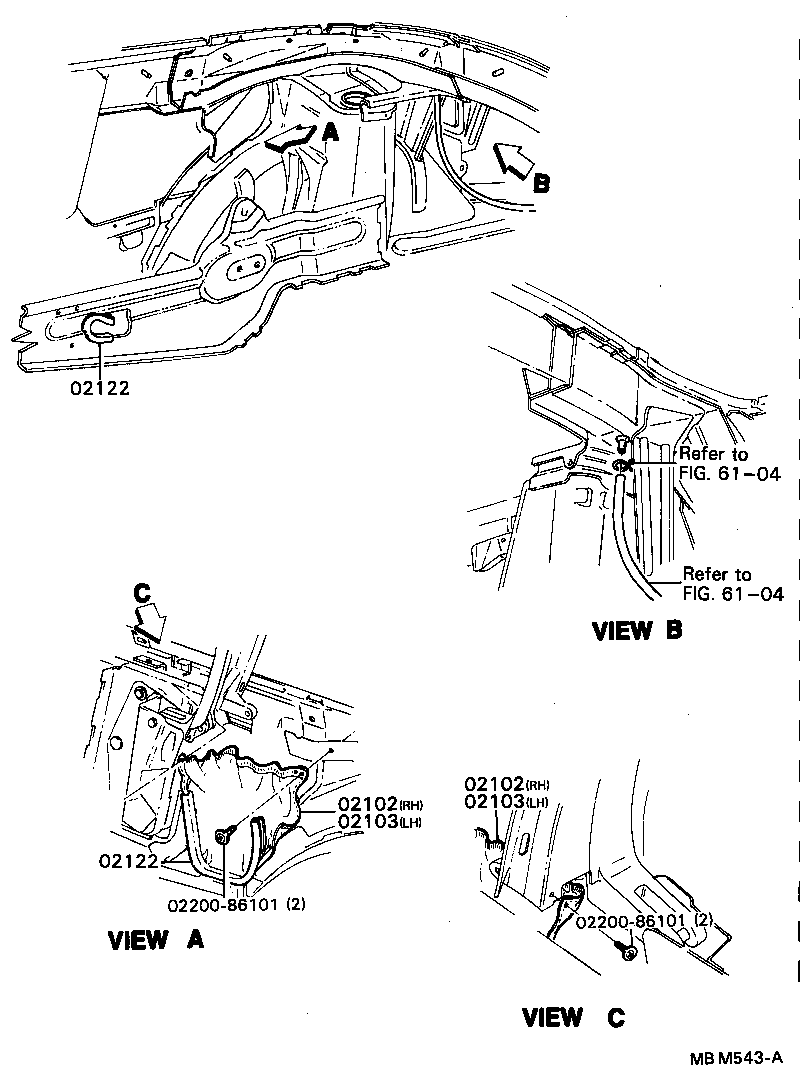

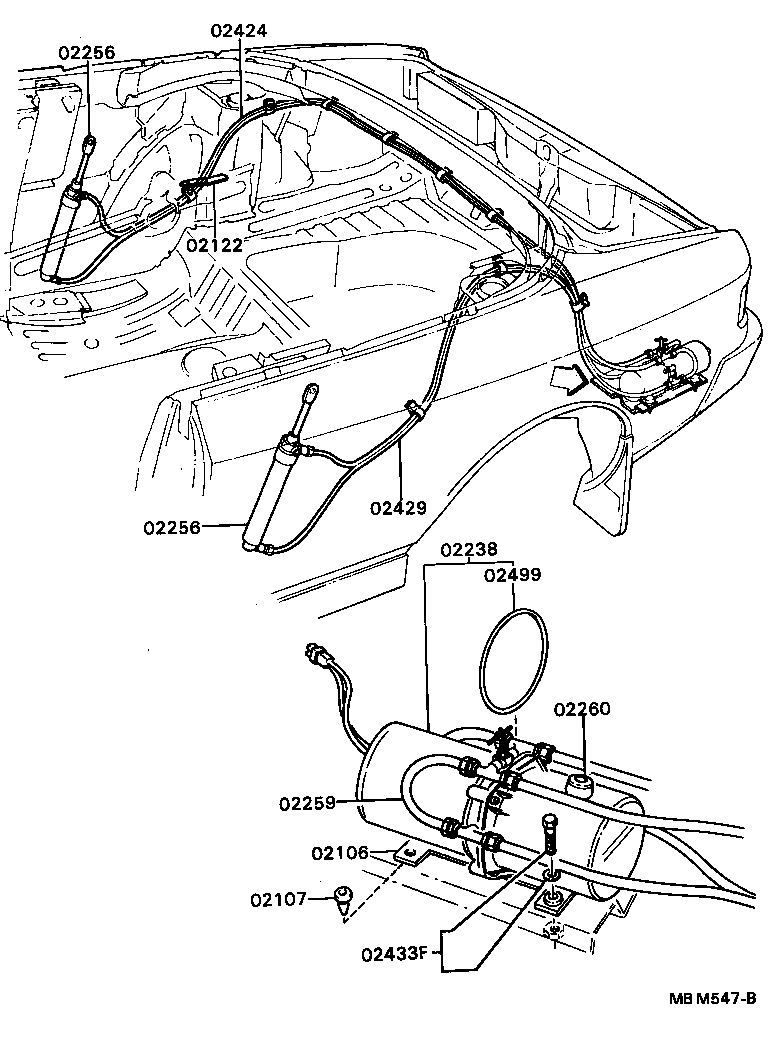

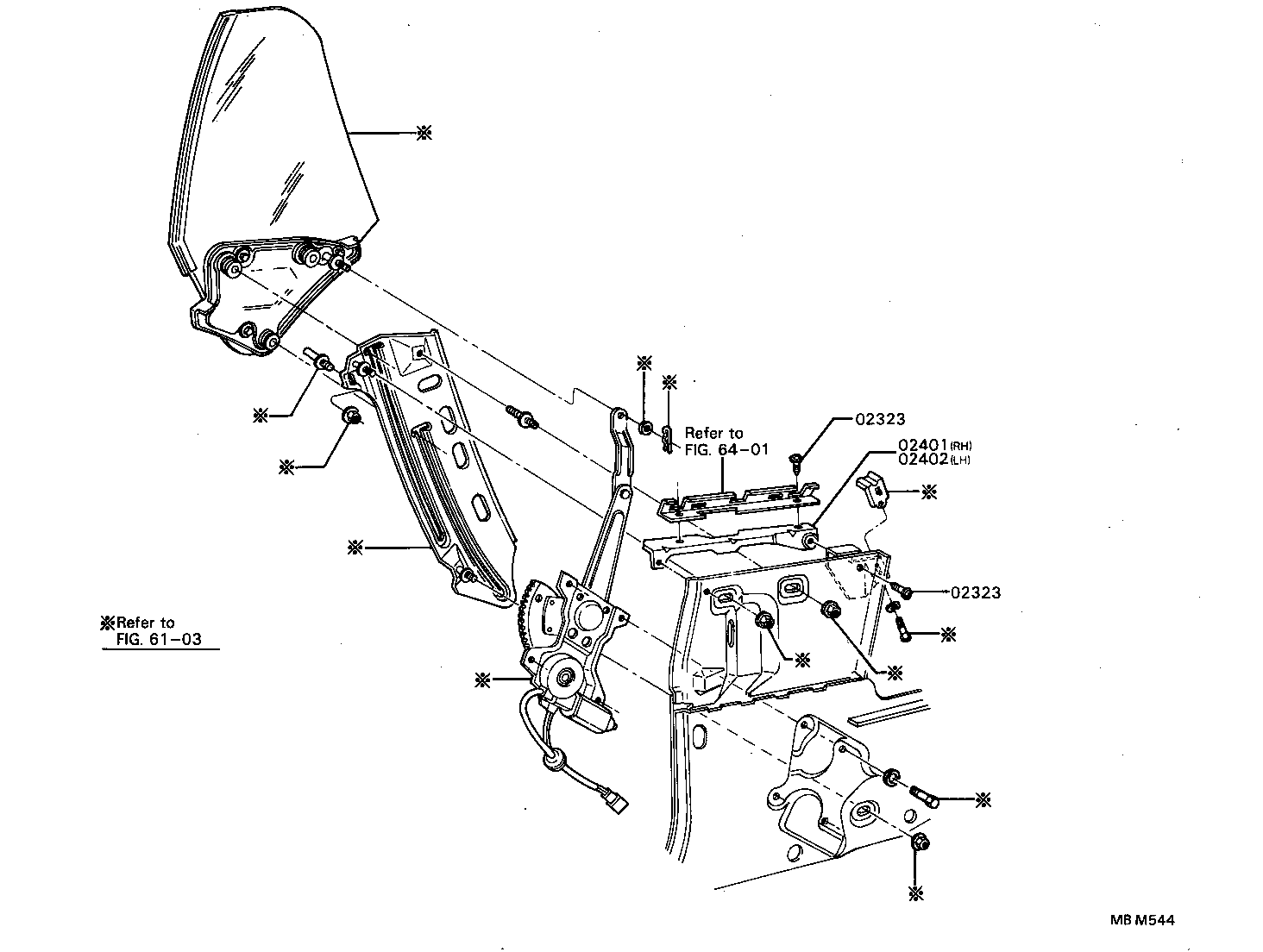

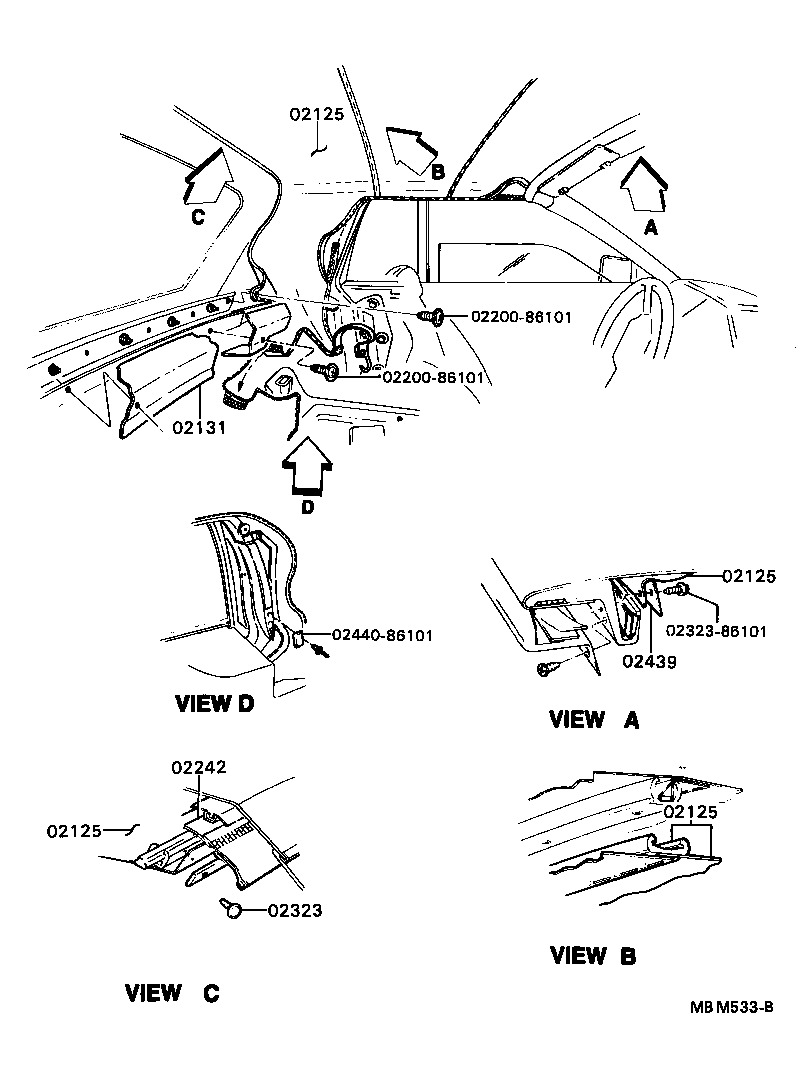

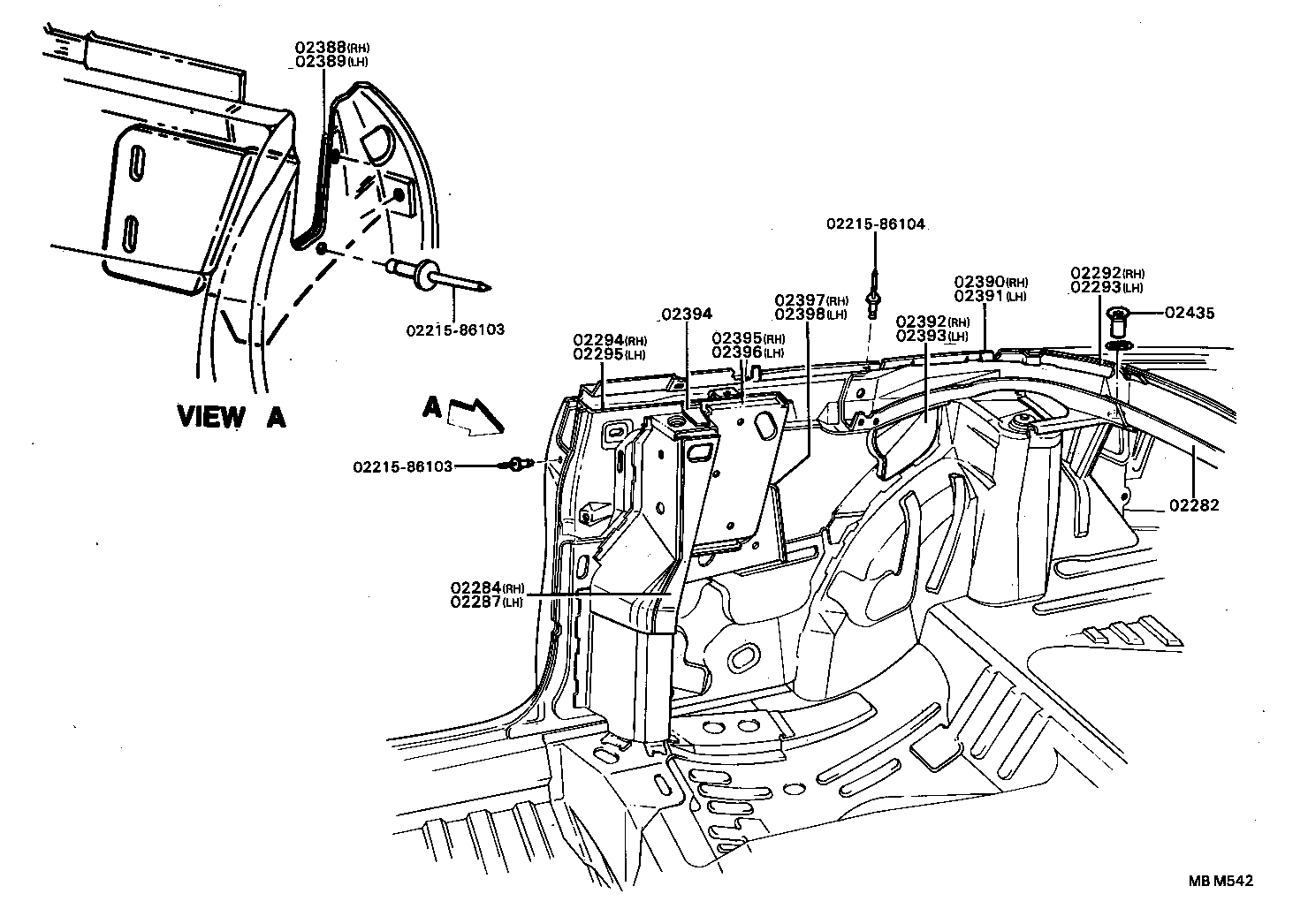

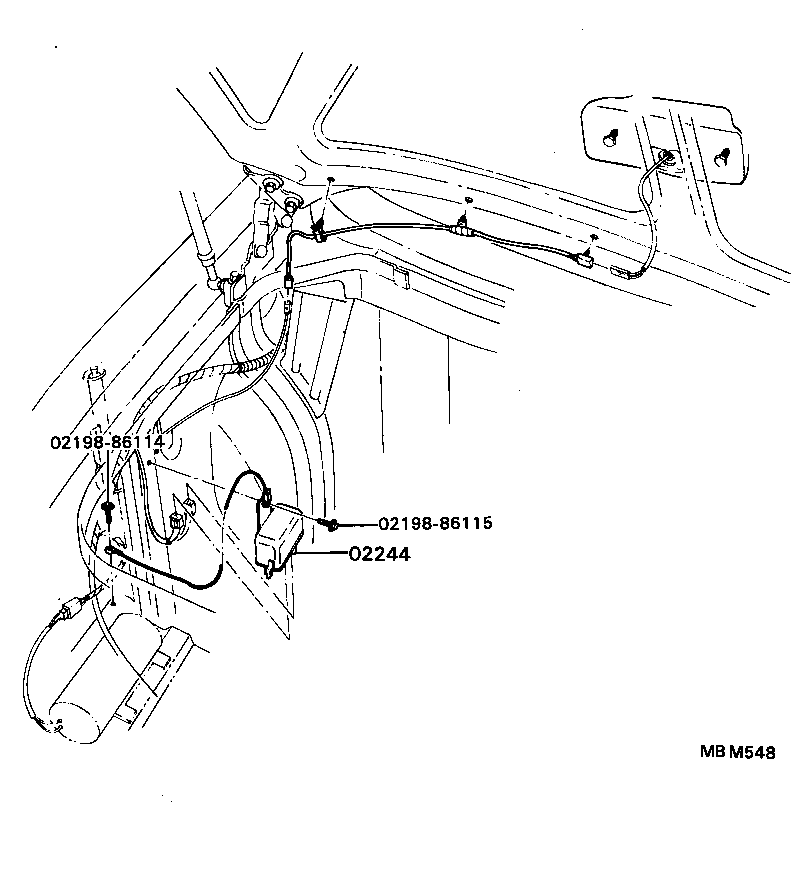

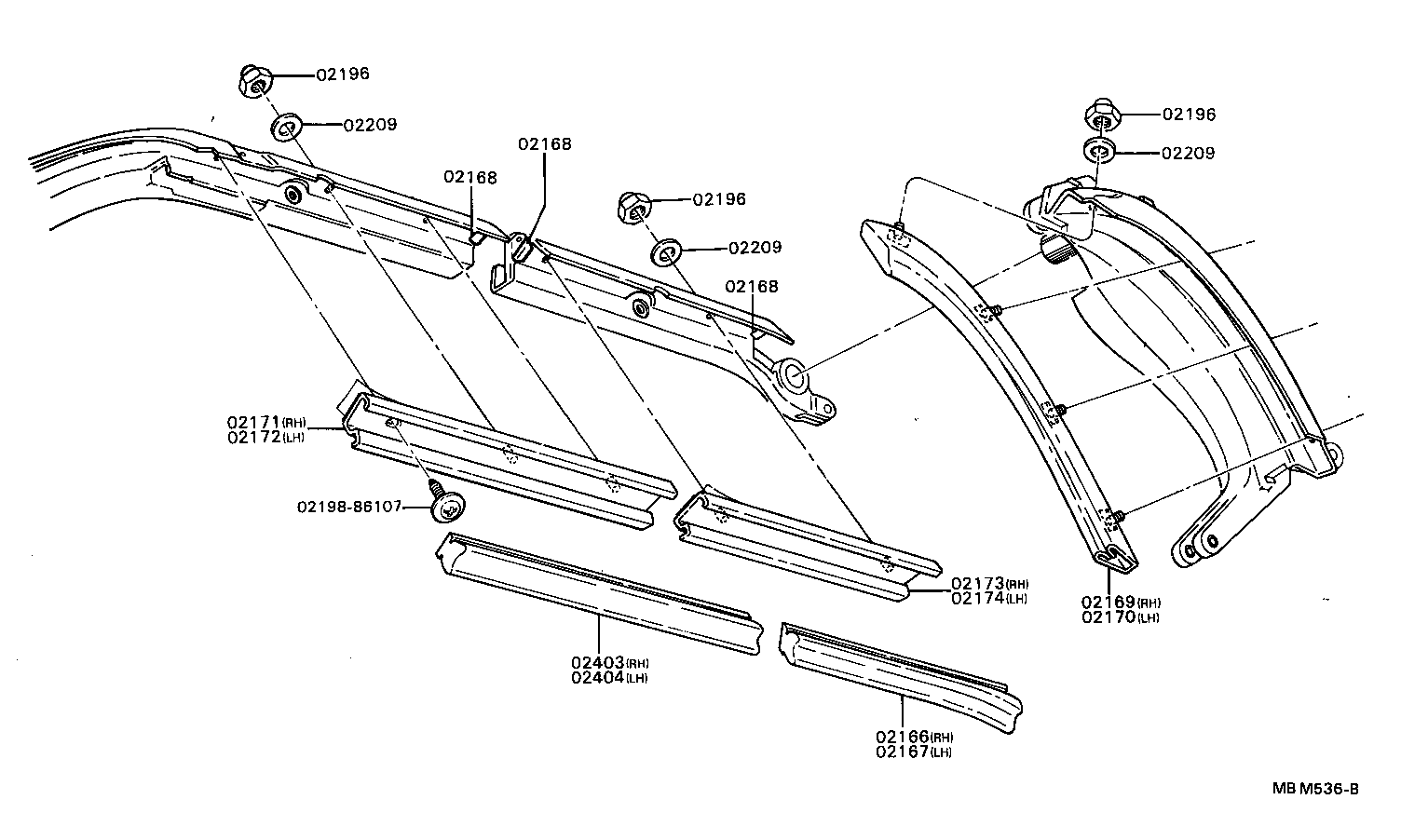

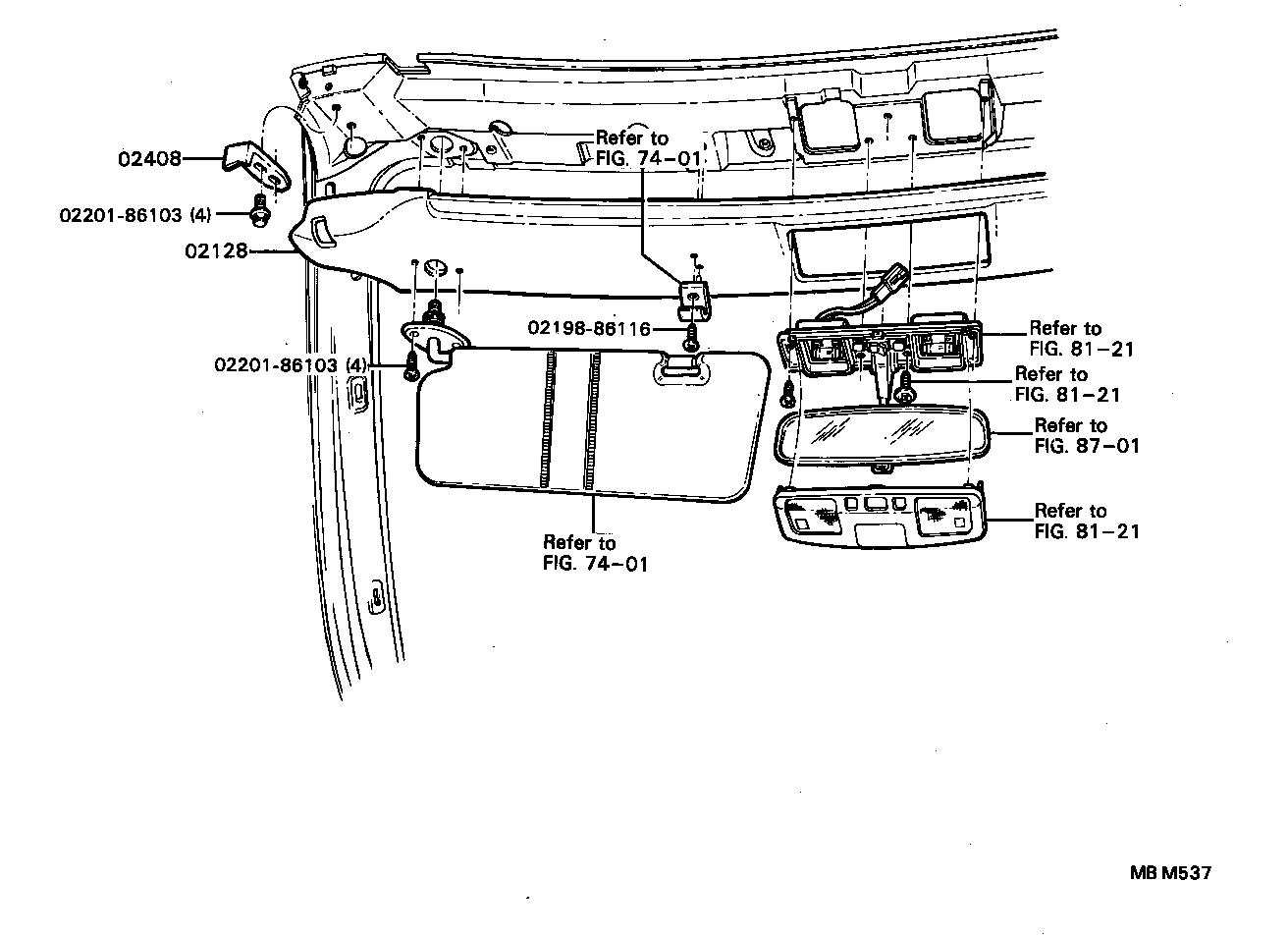

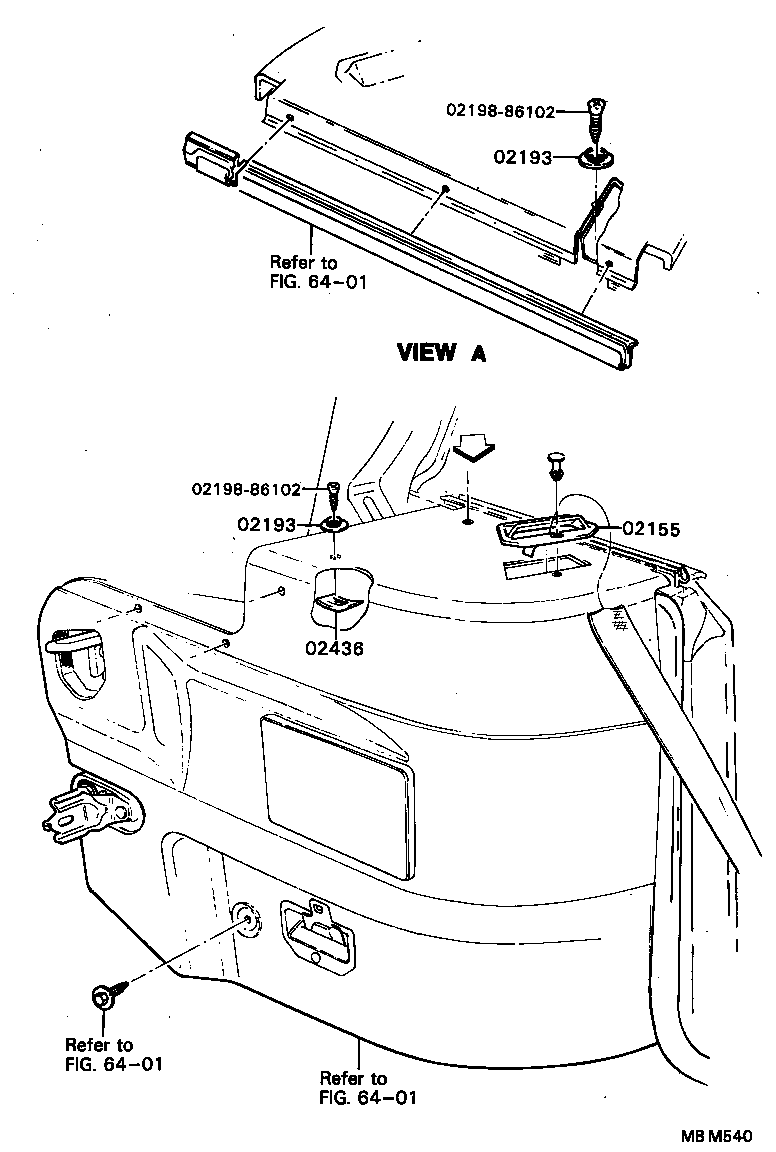

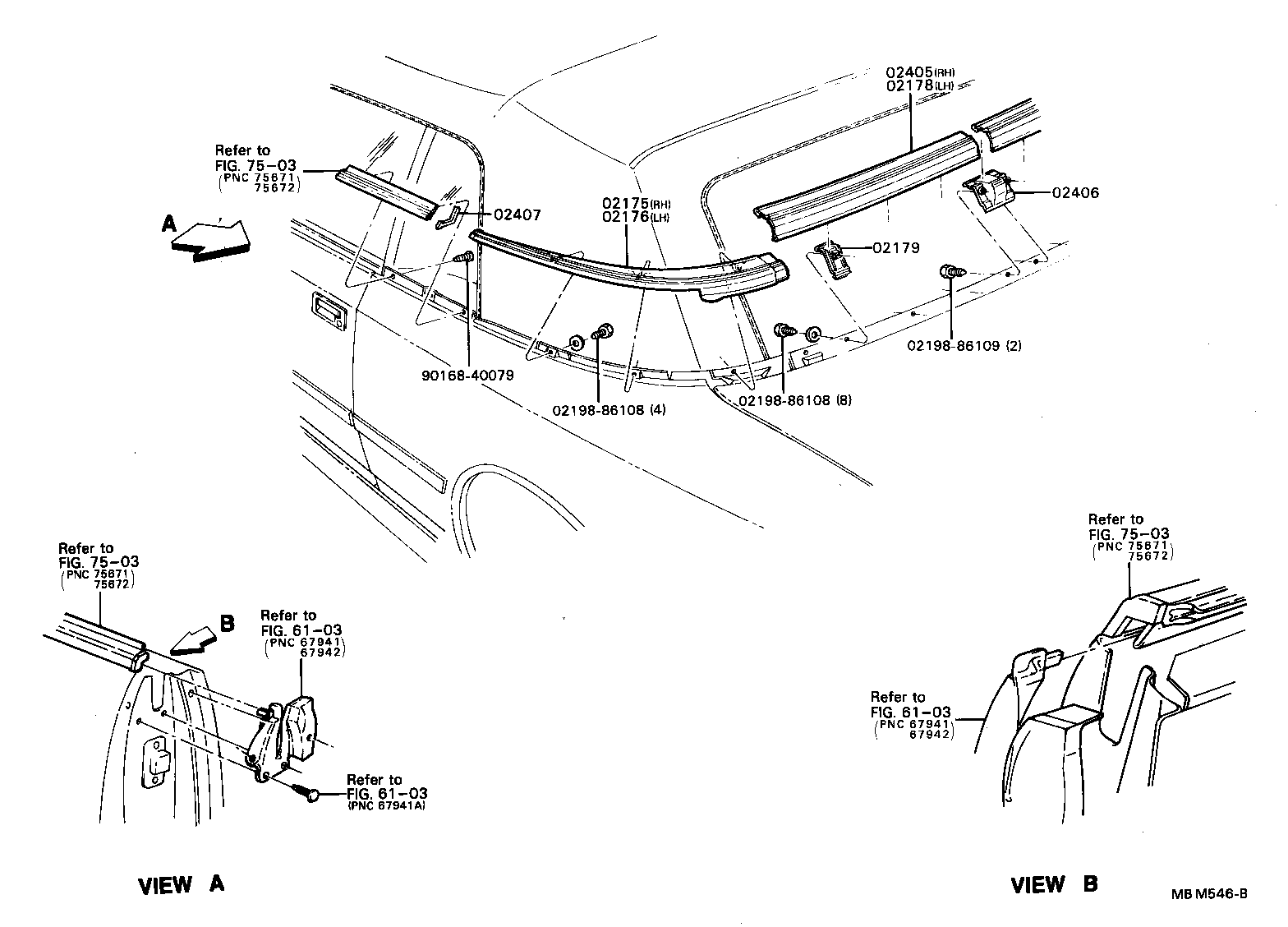

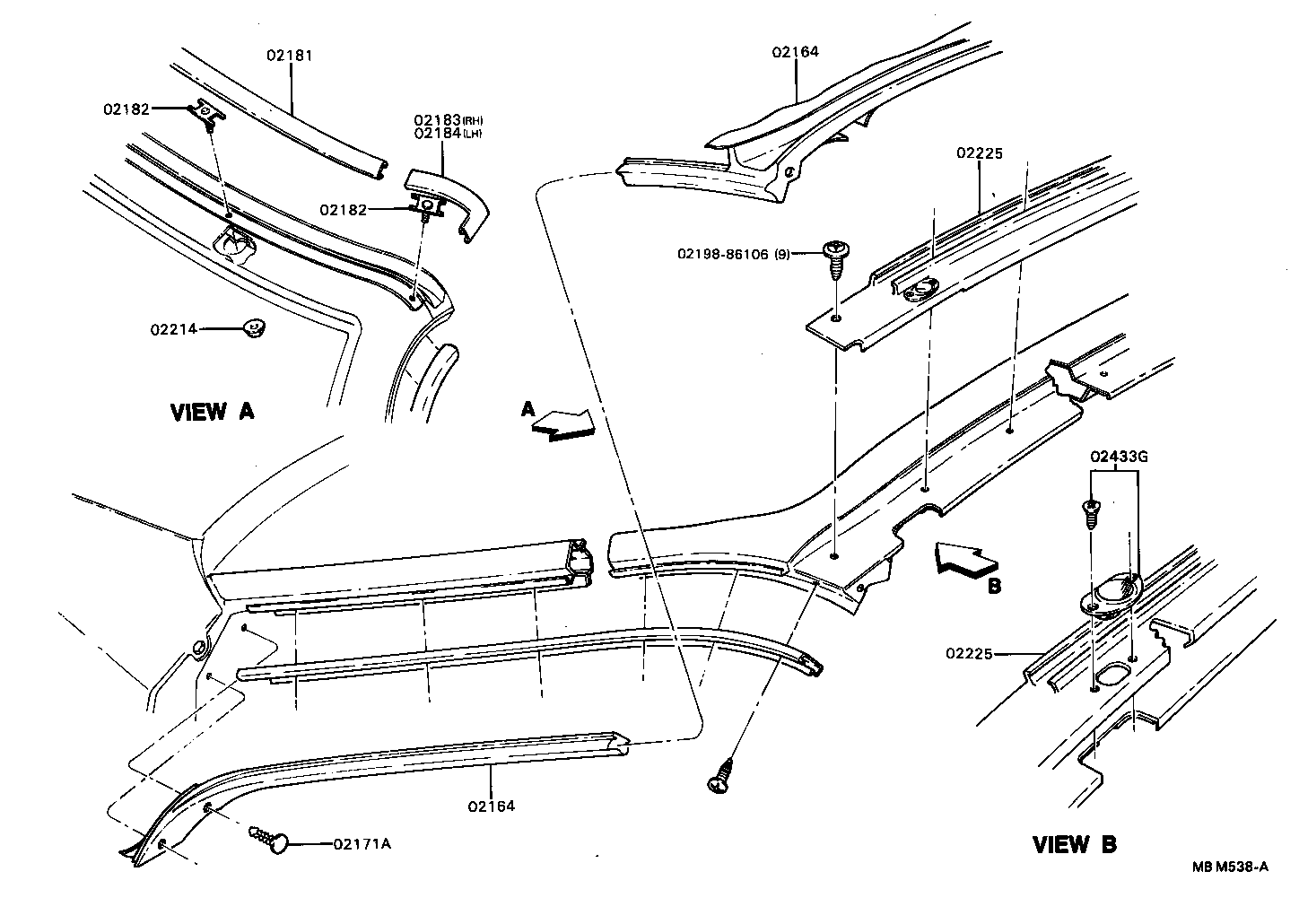

Figure MBM531B MBM531B 1987-10 → — Figure MBM532 MBM532 1987-10 → — Figure MBM533B MBM533B 1987-10 → — Figure MBM534 MBM534 1987-10 → — Figure MBM535A MBM535A 1987-10 → — Figure MBM536B MBM536B 1987-10 → — Figure MBM537 MBM537 1987-10 → — Figure MBM538A MBM538A 1987-10 → — Figure MBM539 MBM539 1987-10 → — Figure MBM540 MBM540 1987-10 → — Figure MBM541 MBM541 1987-10 → — Figure MBM542 MBM542 1987-10 → — Figure MBM543A MBM543A 1987-10 → — Figure MBM544 MBM544 1987-10 → — Figure MBM545 MBM545 1987-10 → — Figure MBM546B MBM546B 1987-10 → — Figure MBM547B MBM547B 1987-10 → — Figure MBM548 MBM548 1987-10 → —

Part groups

PNCDescription
02102 Deflector Assy, Rear Rail, RH
02103 Deflector Assy, Rear Rail, LH
02106 Pump Bracket
02107 Grommet, Pump & Bracket
02122 Welt, Cord
02125 Headliner Assy, Top Stack
02128 Moulding Assy, Headliner Garnish
02131 Cover Assy, Rear Drain Center
02145 Extension Assy, Main Pivot Bracket
02155 Bezel Assy, Shoulder Belt
02156 Retainer
02164 Weatherstrip Assy, Front Header
02166 Weatherstrip, Center Rail, RH
02167 Weatherstrip, Center Rail, LH
02168 Seal, Rail Joint
02169 Weatherstrip Assy, Rear Rail
02170 Weatherstrip Assy, Rear Rail
02171 Retainer Assy, Weatherstrip Front Rail
02171A Retainer
02172 Retainer Assy, Weatherstrip Front Rail
02173 Retainer Assy, Weatherstrip Center Rail, RH
02174 Retainer Assy, Weatherstrip Center Rail, LH
02175 Moulding, Quarter Belt, Rear RH
02176 Moulding, Quarter Belt, Rear LH
02178 Moulding, Back Belt, LH
02179 Retainer, Back Belt
02181 Moulding Weatherstrip Header Moulding Exterior
02182 Retainer Assy, Weatherstrip Header Moulding
02183 Cap, W/Shield Header Moulding Exterior, RH
02184 Cap, W/Shield Header Moulding Exterior, LH
02193 Stud
02196 Nut, Acorn
02209 Washer, Flat
02214 Nut
02221 Clamp, Latch
02225 Retainer Assy, Weatherstrip Front Header
02226 Rail, Rear RH
02227 Rail, Rear LH
02229 Bow Assy, NO.4
02230 Package, Bow Assy, NO.2 W/Bracket
02231 Package, Bow Assy, NO.3 W/Bracket
02233 Strip Assy, Tack Side, RH
02234 Strip Assy, Tack Side, LH
02237 Retainer, NO.4 Bow, Inner Lower
02238 Motor & Pump Assy
02239 Retainer, Cover Assy Top
02240 Cable Assy, Side Retainer
02242 Zipper, Backlite
02244 Relay Assy, Folding Top
02249 Bow, NO.1
02255 Cover Assy, Top Cloth
02256 Cylinder Assy
02259 Valve Assy, Needle
02260 Plug
02261 Eccentric, Pin Package
02262 Attachments, Hydraulic Cylinder Package
02265 Attachments, Rear Rail TO Main Pivot Bracket Package
02266 Attachments, NO.2 & NO.3 Bow Package
02267 Attachments, Center Rail TO Rear Rail Package
02269 Attachments, Clamp Latch TO NO.1 Bow Package
02272 Installation Kit-cover Assy
02273 Retainer, Cover Assy Top, Front
02282 Trough Assy, Rear Drain
02284 Reinforcement Assy, B Piller, RH
02287 Reinforcement Assy, B Piller, LH
02292 Tough Assy, Corner Drain, RH
02293 Tough Assy, Corner Drain, LH
02294 Panel Assy, Quarter Inner, Upper RH
02295 Panel Assy, Quarter Inner, Upper LH
02299 Reinforcement Assy, Roof Header Inner
02300 Reinforcement, Roof Header Outer
02301 Extension, Front Piller Upper, RH
02302 Extension, Front Piller Upper, LH
02305 Stay, Pad Side
02307 Stay, Pad Back Life
02315 Boot Assy, Folding Top
02323 Screw
02324 Retainer, Headliner NO.4 Bow
02327 Clip, Tube
02328 Backlite Assy, Cloth
02331 Nut & Washer Assy
02334 Snap, Screw
02342 Plate, B Piller Wedeg
02343 Spacer, Wedge Plate B Pillar
02345 Screw
02346 Screw
02353 Nut & Washer Assy
02363 Insert, Feature Strip NO.4 Bow
02388 Reinforcement, Lock Pillar TO Quarter Belt Outer, RH
02389 Reinforcement, Lock Pillar TO Quarter Belt Outer, LH
02390 Reinforcement Assy, Quarter Belt, RH
02391 Reinforcement Assy, Quarter Belt, LH
02392 Brace, Corner, Front RH
02393 Brace, Corner, Front LH
02394 Reinforcement, Shoulder Belt Anchor
02395 Support Assy, Pivot Mounting, RH
02396 Support Assy, Pivot Mounting, LH
02397 Brace, Pivot Bracket TO Quarter Inner, RH
02398 Brace, Pivot Bracket TO Quarter Inner, LH
02399 Plate, Wedge ON Door, RH
02400 Plate, Wedge ON Door, LH
02401 Bracket, Quarter Belt Inner, Lower RH
02402 Bracket, Quarter Belt Inner, Lower LH
02403 Weatherstrip Assy, Front Rail, RH
02404 Weatherstrip Assy, Front Rail, LH
02405 Moulding, Back Belt, RH
02406 Cap, Moulding Joint Cntr
02407 Isolator, Quarter Belt Moulding
02408 Lock, Front Header
02410 Pin, Dowel
02411 Lever Assy
02412 Rail, Center, RH
02413 Rail, Center, LH
02414 Link Assy, Control, RH
02415 Link Assy, Control, LH
02416 Bracket Assy, Main Pivot, RH
02417 Bracket Assy, Main Pivot, LH
02418 Link, Barance, RH
02419 Link, Barance, LH
02421 Link Assy, NO.4 Bow Control, RH
02422 Link Assy, NO.4 Bow Control, LH
02423 Stop Assy, Down
02424 Hose Assy, RH
02426 Plate Assy, Tensioner, RH
02427 Plate Assy, Tensioner, LH
02428 Bag, Boot Storage
02429 Hose Assy, LH
02430 Snap
02431 Curtain Assy, Backlite Protector
02433 Attachments, Front Rail TO Center Rail
02433A Attachment Package, Center & Balance Link
02433B Rail Package, Link NO.4 Bow Rear Control
02433C Bracket Package, Link NO.4 Bow Pivot Control
02433D Bracket Package, Balance Link TO Main Pivot
02433E Attachment Package, NO.4 Bow TO Slat
02433F Package, Motor & Pump Assy Attachiment
02433G Bushing Package, Front Header Dowel Pin
02434 Feature, Strip NO.4 Bow Outer
02435 Tube, Rear Drain
02436 Retainer
02439 Bracket, Headliner Mounting, Front
02499 Ring, O, Reservoir Kit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
