Toyota Celica

1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 8 illustrations

Illustrations

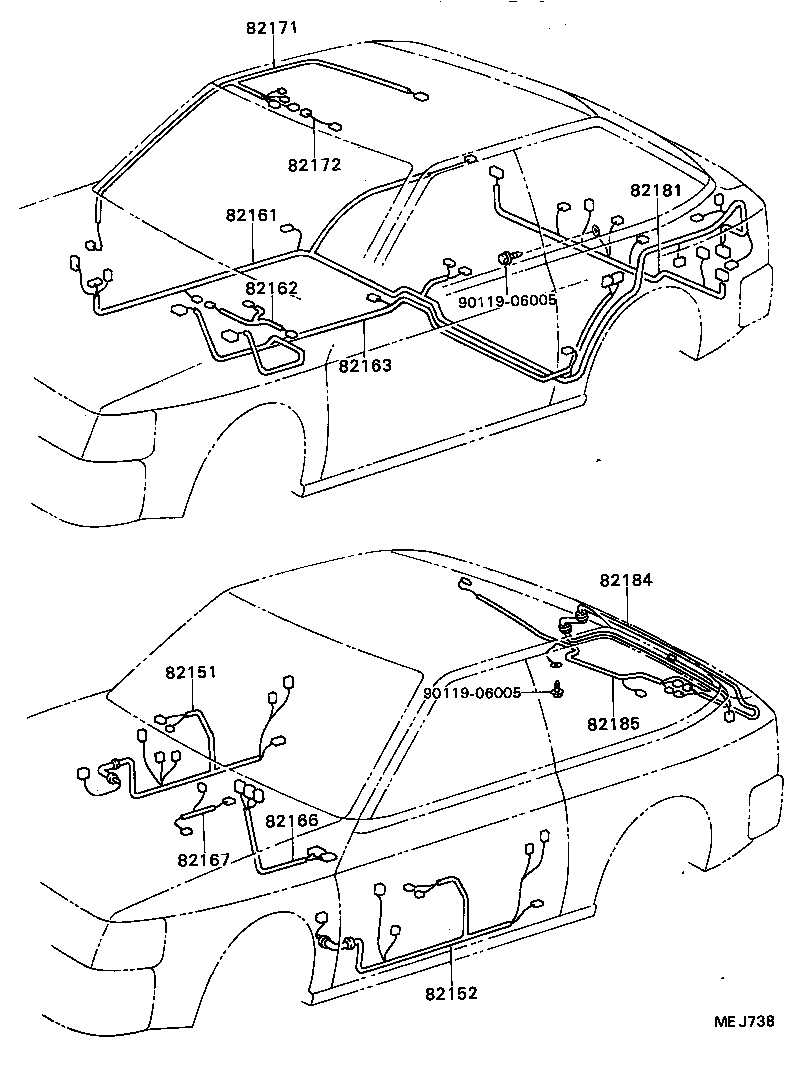

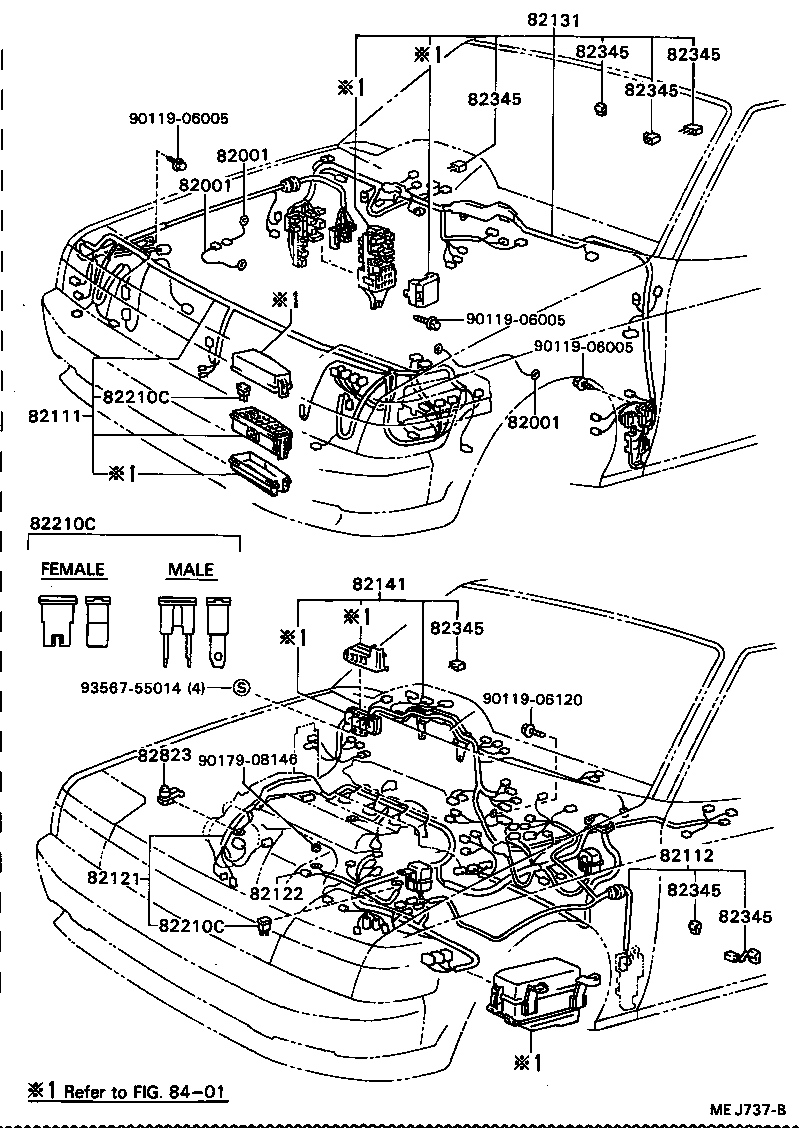

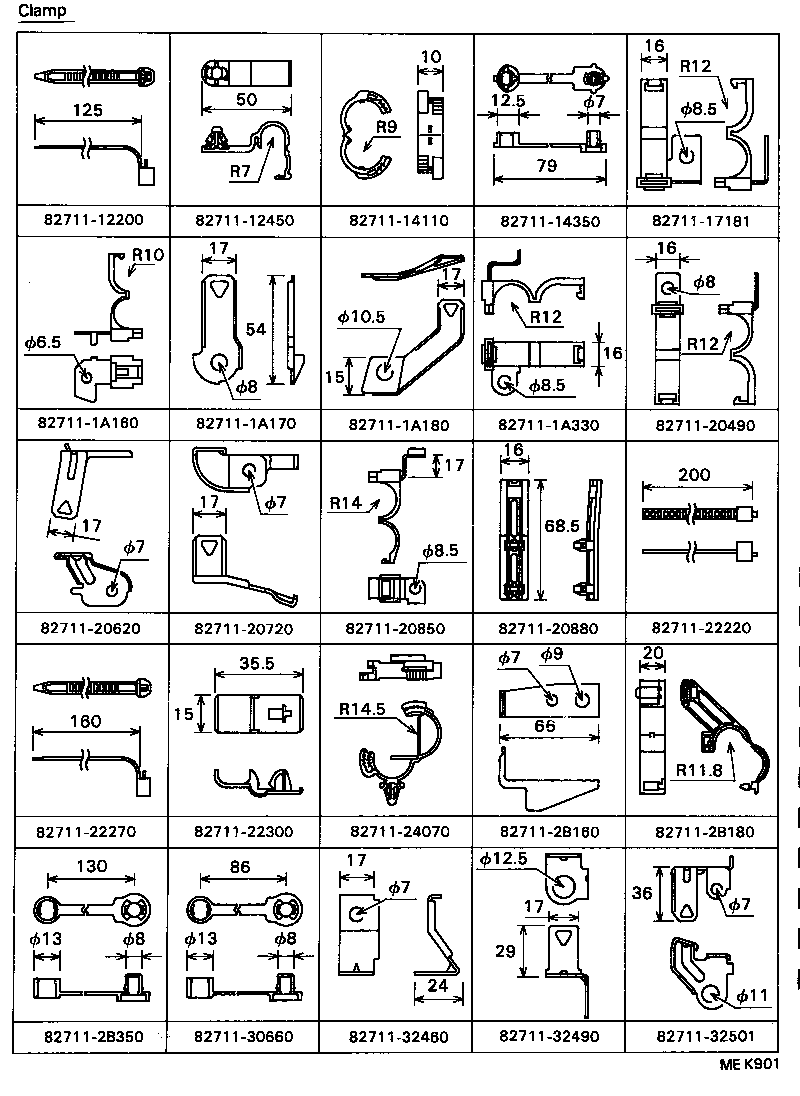

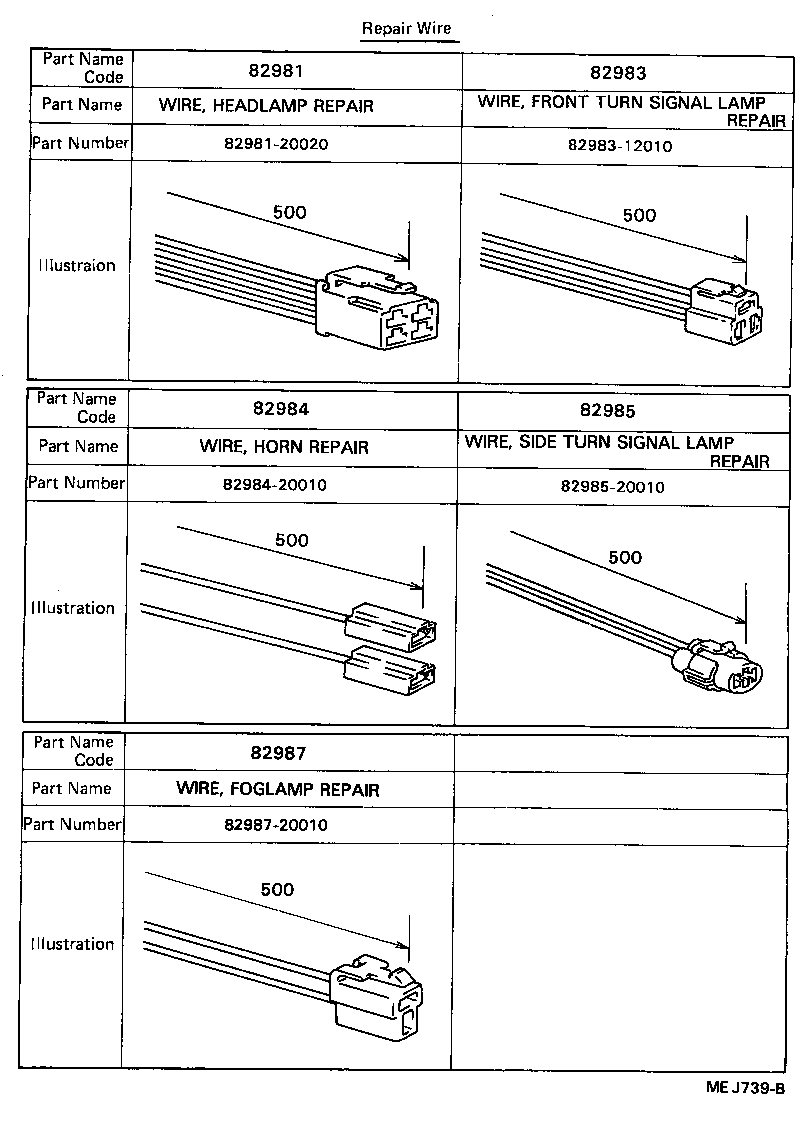

Figure MEJ736B MEJ736B 1987-08 → — Figure MEJ737B MEJ737B 1987-08 → — Figure MEJ738 MEJ738 1987-08 → — Figure MEQ403 MEQ403 1987-08 → — Figure MEK901 MEK901 1987-08 → — Figure MEK902A MEK902A 1987-08 → — Figure MEJ739B MEJ739B 1987-08 → — Figure MEQ414 MEQ414 1987-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82345 Diode
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
