Toyota Celica
1987-08 → 1989-08 · chassis ST16# · catalogue 252150 · Japan
Discontinued model
Data version 1990-03

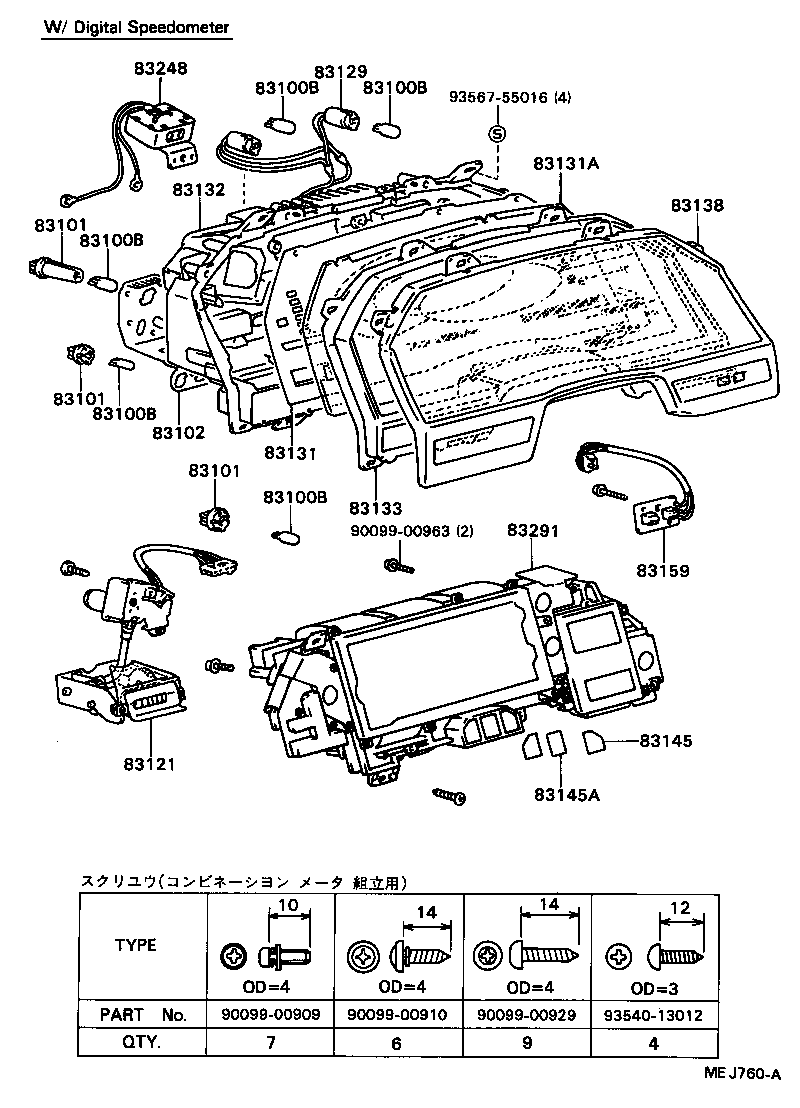

Meter
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

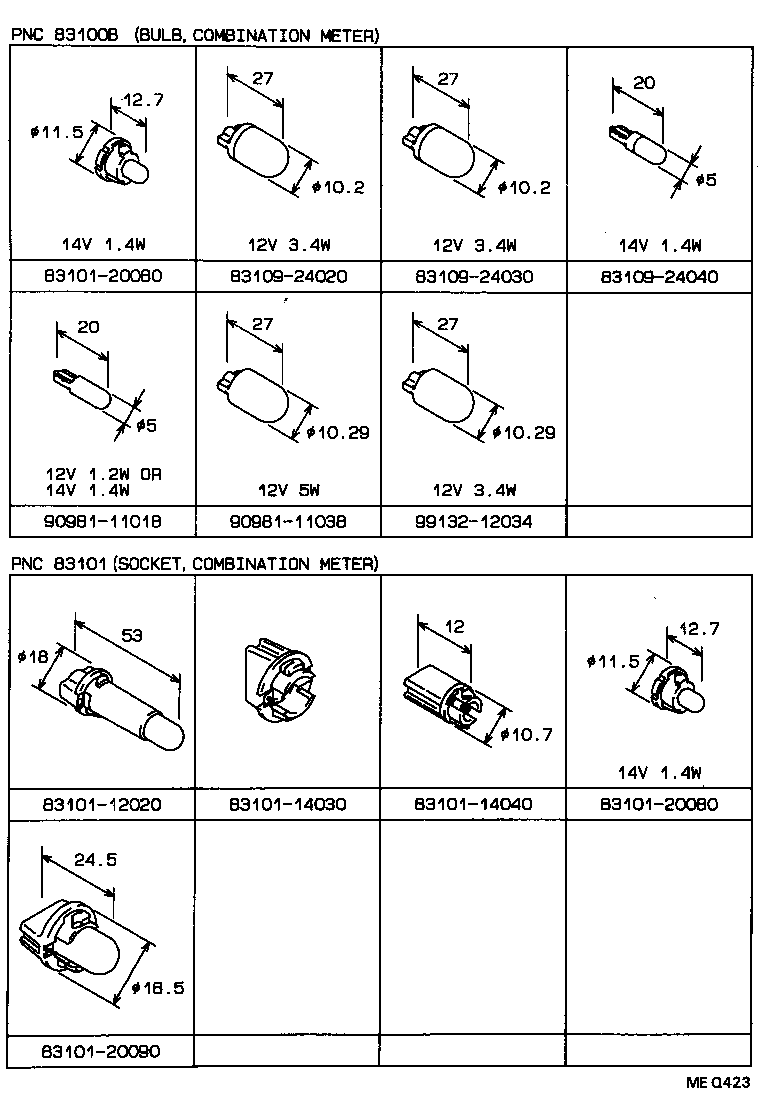

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83121 | Counter, Total |
| 83128 | Knob, Trip Counter |
| 83129 | Wire, Meter |
| 83131 | Dial, Meter, NO.1 |
| 83131A | Dial, Meter, NO.2 |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83159 | Switch, Meter, NO.1 |
| 83189 | Bracket, Meter |
| 83246 | Gauge, Oil Pressure Receiver |
| 83248 | Chime, Speed Warning |
| 83251 | Meter, Voltage |
| 83270 | Tachometer Assy, Engine |
| 83291 | Computer, Combination Meter |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

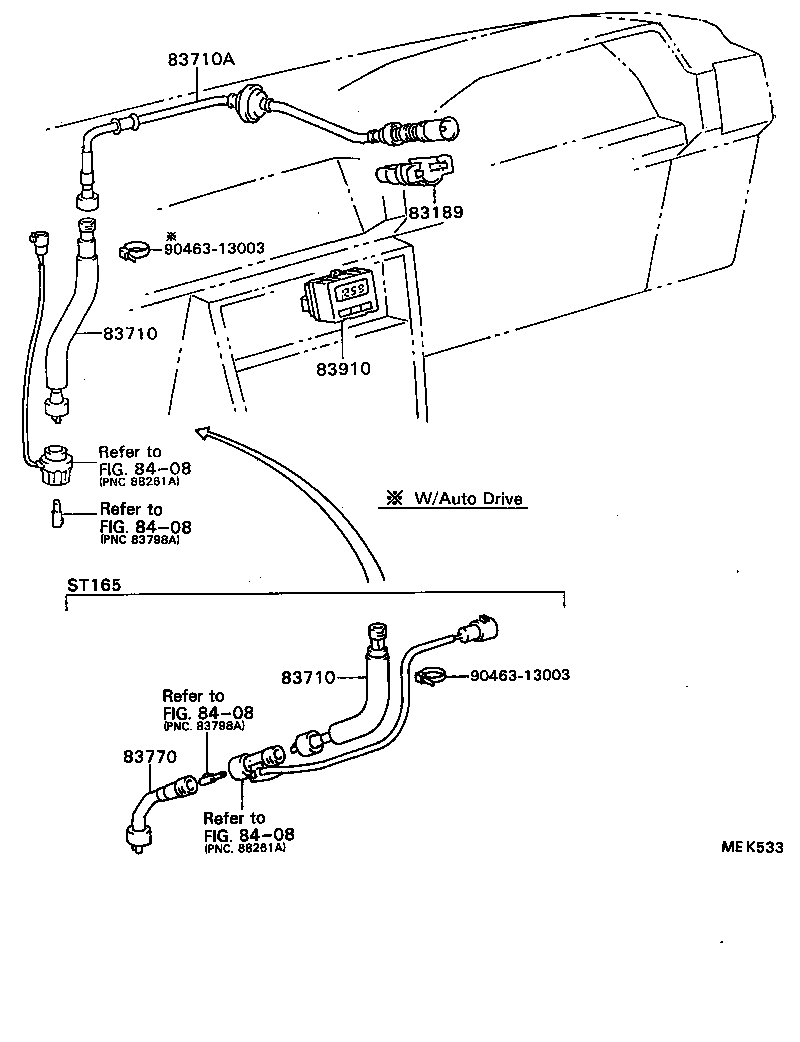

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83770 | Adapter Assy, Speedometer Cable |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
