Toyota Celica

1989-09 → 1993-09 · chassis ST18# · catalogue 252160 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 8 illustrations

Illustrations

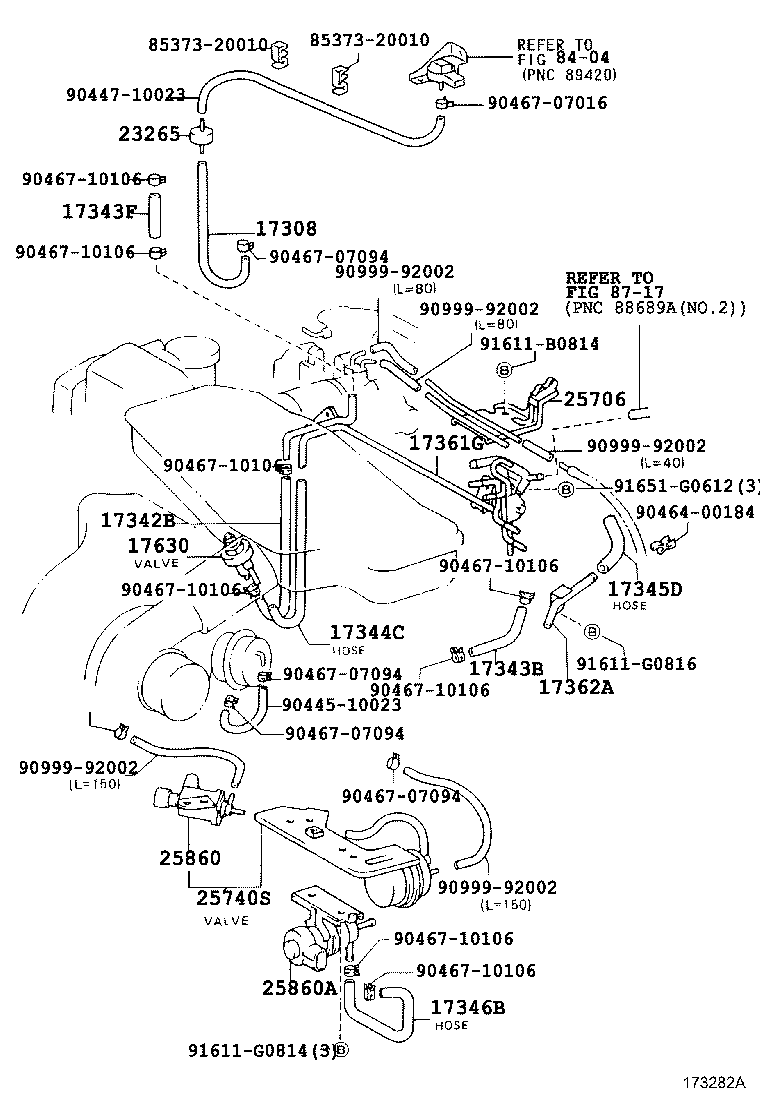

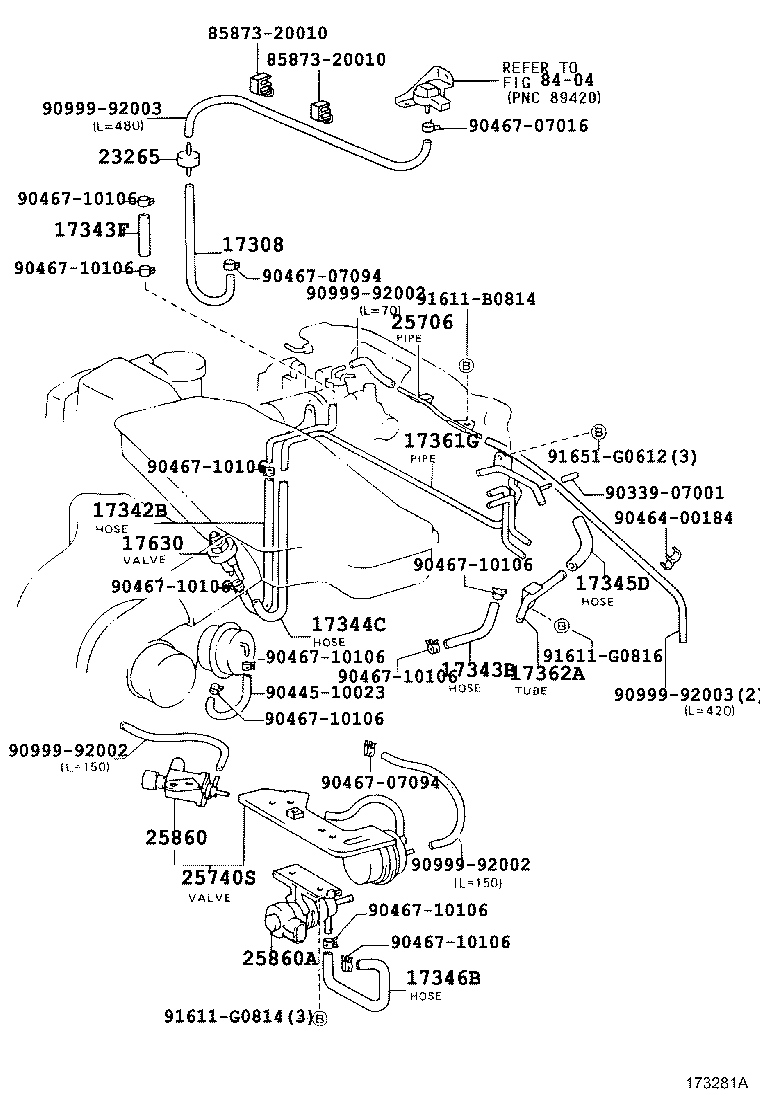

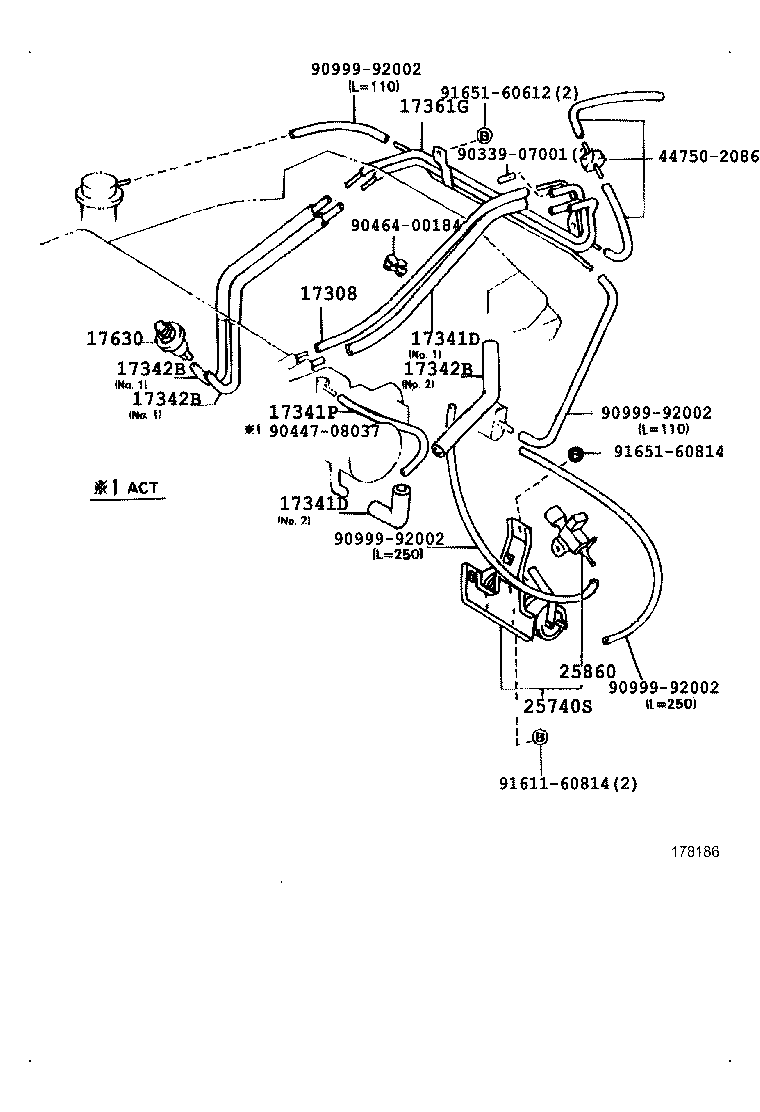

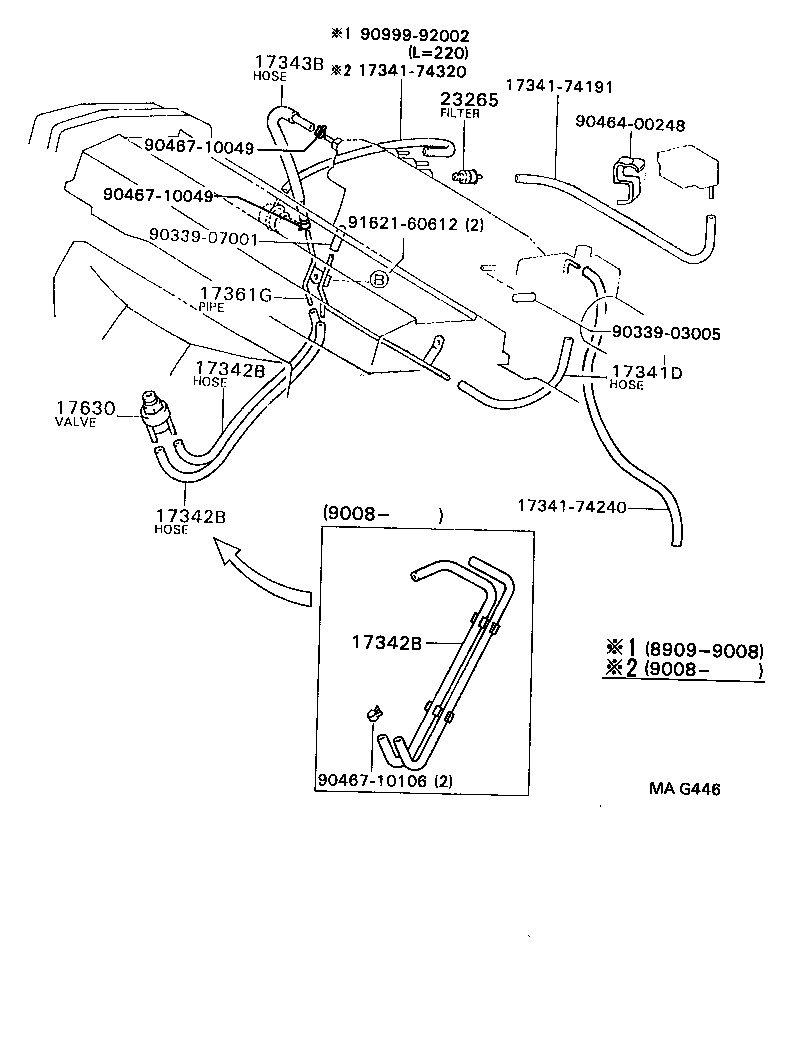

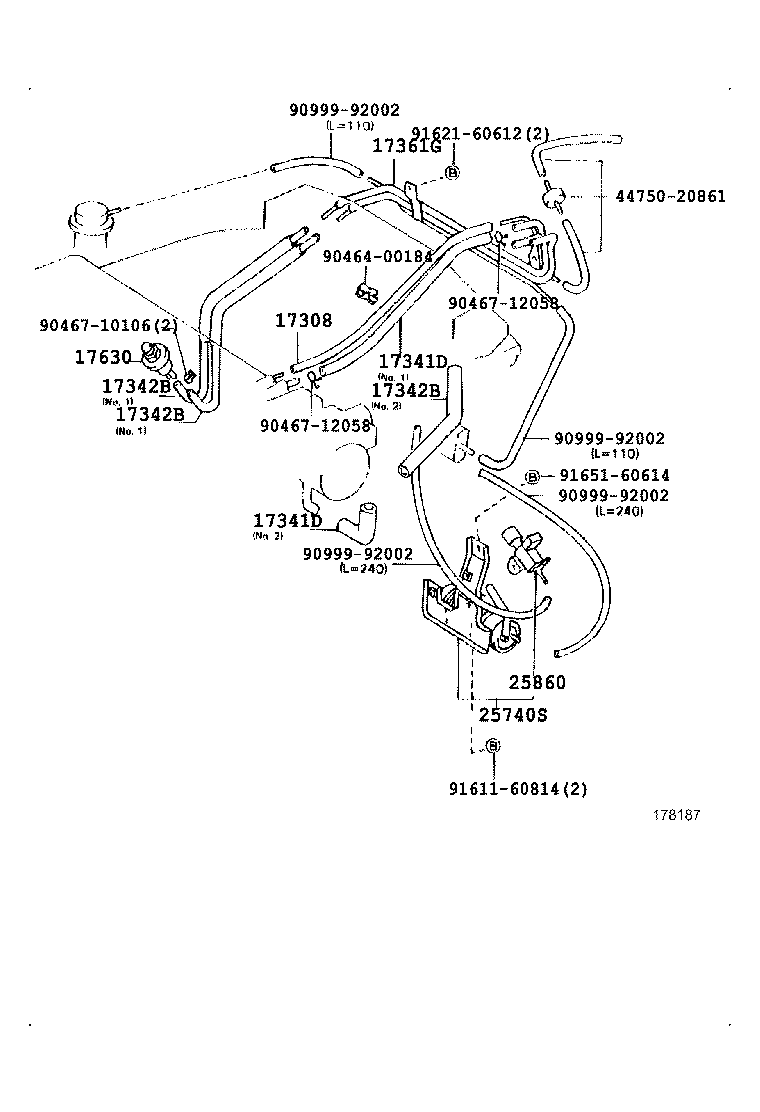

Figure MA9503A MA9503A 1989-09 → — Figure MAG446 MAG446 1989-09 → — Figure 178186 178186 1989-09 → 1991-08 Figure 178186 178186 1991-08 → 1991-09 Figure 178187 178187 1991-08 → 1991-09 Figure 178187 178187 1991-09 → — Figure 173281A 173281A 1989-10 → 1991-08 Figure 173282A 173282A 1991-08 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343F Hose, Air, NO.3
17344C Hose, NO.4(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17630 Valve Assy, Air Control
23265 Filter, Gas, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
