Toyota Celica

1989-09 → 1993-09 · chassis ST18# · catalogue 252160 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 2 illustrations

Illustrations

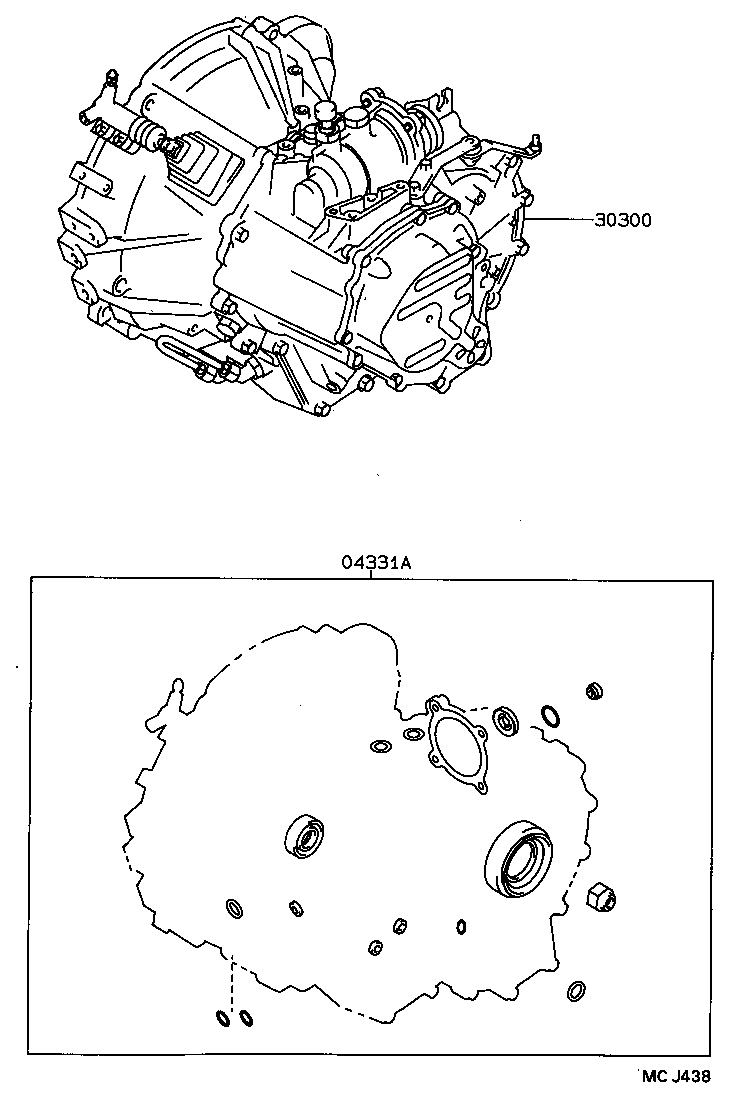

Figure MCJ439 MCJ439 1989-09 → — Figure MCJ438 MCJ438 1989-10 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
