Toyota Celica

1989-09 → 1993-09 · chassis ST18# · catalogue 252160 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

76 part groups · 3 illustrations

Illustrations

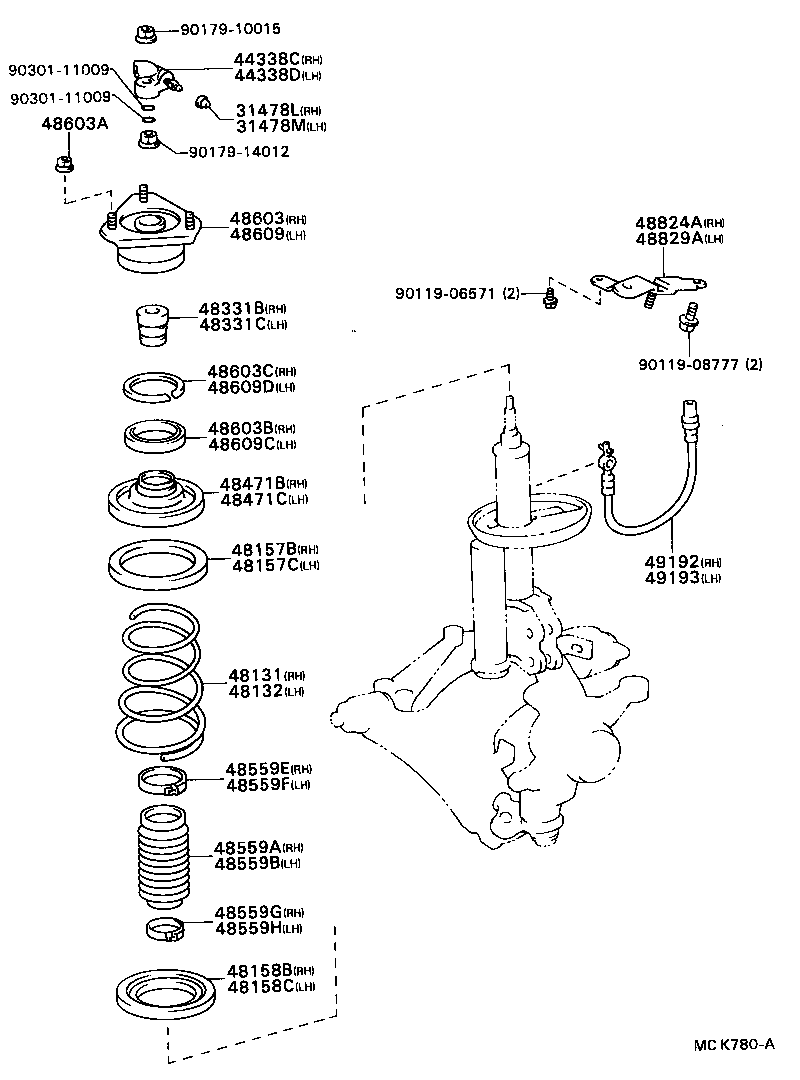

Figure MCJ118B MCJ118B 1989-09 → — Figure MCK780A MCK780A 1990-04 → — Figure MCK782A MCK782A 1990-04 → —

Part groups

PNCDescription
31478L Cap, Front Shock Absorber Bleeder Plug, RH
31478M Cap, Front Shock Absorber Bleeder Plug, LH
44338C Union, Front Shock Absorber, RH
44338D Union, Front Shock Absorber, LH
47547X Plug, Front Shock Absorber Bleeder, RH
47547Y Plug, Front Shock Absorber Bleeder, LH
48022C Guide Sub-assy, Front Shock Absorber Rod, RH
48022D Guide Sub-assy, Front Shock Absorber Rod, LH
48022L Ring, O(FOR FRONT SHOCK ABSORBER ROD GUIDE RH)
48022M Ring, O(FOR FRONT SHOCK ABSORBER ROD GUIDE LH)
48022N Ring(FOR FRONT SHOCK ABSORBER ROD GUIDE RH)
48022P Ring(FOR FRONT SHOCK ABSORBER ROD GUIDE LH)
48023C Rod Sub-assy, Front Shock Absorber Piston, RH
48023D Rod Sub-assy, Front Shock Absorber Piston, LH
48028E Nut Sub-assy, Front Shock Absorber Ring, RH
48028F Nut Sub-assy, Front Shock Absorber Ring, LH
48044 Seat Sub-assy, Front Spring, NO.1
48064 Cover Sub-assy, Front Suspension Support, RH
48064A Seal, Dust(FOR FRONT SUSPENSION SUPPORT COVER)
48064B Grommet(FOR FRONT SUSPENSION SUPPORT COVER)
48064C Ring, Set(FOR FRONT SUSPENSION SUPPORT COVER)
48065 Cover Sub-assy, Front Suspension Support, LH
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157 Insulator, Front Coil Spring, Upper
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48158A Insulator, Front Coil Spring, Lower
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48331 Bumper, Front Spring, NO.1
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48471B Seat, Front Coil Spring, Upper RH
48471C Seat, Front Coil Spring, Upper LH
48510 Absorber Assy, Shock, Front RH
48511A Bolt, Union(FOR FRONT SHOCK ABSORBER RH)
48511B Gasket(FOR FRONT SHOCK ABSORBER UNION BOLT RH)
48520 Absorber Assy, Shock, Front LH
48521A Bolt, Union(FOR FRONT SHOCK ABSORBER LH)
48521B Gasket(FOR FRONT SHOCK ABSORBER UNION BOLT LH)
48527A Cap, Front Shock Absorber, RH
48528 Cap, Front Shock Absorber, LH
48559A Cover, Front Shock Absorber Dust, RH NO.1
48559B Cover, Front Shock Absorber Dust, LH NO.1
48559E Clamp, NO.1(FOR FRONT SHOCK ABSORBER DUST COVER RH)
48559F Clamp, NO.1(FOR FRONT SHOCK ABSORBER DUST COVER LH)
48559G Clamp, NO.2(FOR FRONT SHOCK ABSORBER DUST COVER RH)
48559H Clamp, NO.2(FOR FRONT SHOCK ABSORBER DUST COVER LH)
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48603B Bearing(FOR FRONT SUSPENSION SUPPORT RH)
48603C Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
48609 Support Sub-assy, Front Suspension, LH
48609A Support Sub-assy, Front Suspension
48609C Bearing(FOR FRONT SUSPENSION SUPPORT LH)
48609D Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680D Seal, Dust(FOR FRONT SUSPENSION SUPPORT)
48684 Cover, Bearing Dust
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820 Link Assy, Front Stabilizer
48820A Nut(FOR FRONT STABILIZER LINK)
48824A Bracket, Front Stabilizer, NO.1 RH
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829A Bracket, Front Stabilizer, NO.1 LH
49147 Accumulator, Front Shock Absorber, RH
49147A Ring, O(FOR FRONT SHOCK ABSORBER ACCUMULATOR RH)
49147B Ring(FOR FRONT SHOCK ABSORBER ACCUMULATOR RH)
49148 Accumulator, Front Shock Absorber, LH
49148A Ring, O(FOR FRONT SHOCK ABSORBER ACCUMULATOR LH)
49148B Ring(FOR FRONT SHOCK ABSORBER ACCUMULATOR LH)
49192 Hose, Suspension Control Drain, NO.2
49193 Hose, Suspension Control Drain, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
