Toyota Celica

1989-09 → 1993-09 · chassis ST18# · catalogue 252160 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

26 part groups · 3 illustrations

Illustrations

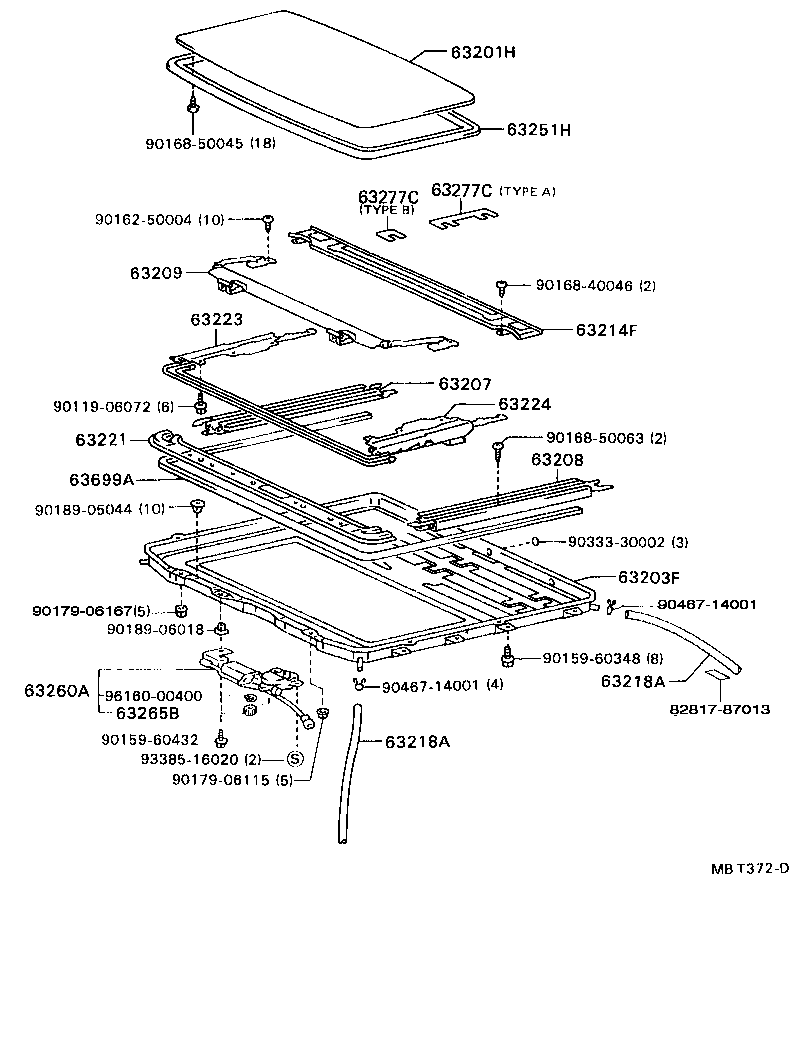

Figure MBT371F MBT371F 1989-09 → — Figure MBT372D MBT372D 1989-09 → — Figure MBU759A MBU759A 1990-09 → —

Part groups

PNCDescription
61281A Bracket, Sliding Roof Housing Side Mounting, NO.1
61827C Plate, Noise Control, NO.4
61838D Plate, Noise Control, NO.5
62553E Pad, Pillar, NO.3
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63141H Reinforcement, Roof Panel, Center
63142 Reinforcement, Roof Panel, NO.2
63201H Panel Sub-assy, Slide Roof
63203F Housing Sub-assy, Sliding Roof
63207 Rail Sub-assy, Sliding Roof Guide, RH
63208 Rail Sub-assy, Sliding Roof Guide, LH
63209 Panel Sub-assy, Roof Wind Deflector
63214F Channel, Roof Drip, Rear
63218A Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63221 Casing, Sliding Roof Cable Guide
63223 Cable, Sliding Roof Drive, RH
63224 Cable, Sliding Roof Drive, LH
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
63265B Gear, Sliding Roof Drive
63277C Shim, Sliding Roof Panel
63344D Pad, Roof Silencer, NO.4
63699A Seal, Sliding Roof Guide Rail
64101 Panel Sub-assy, Upper Back
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
