Heating & Air Conditioning - Control & Air Duct

21 part groups · 7 illustrations

Illustrations

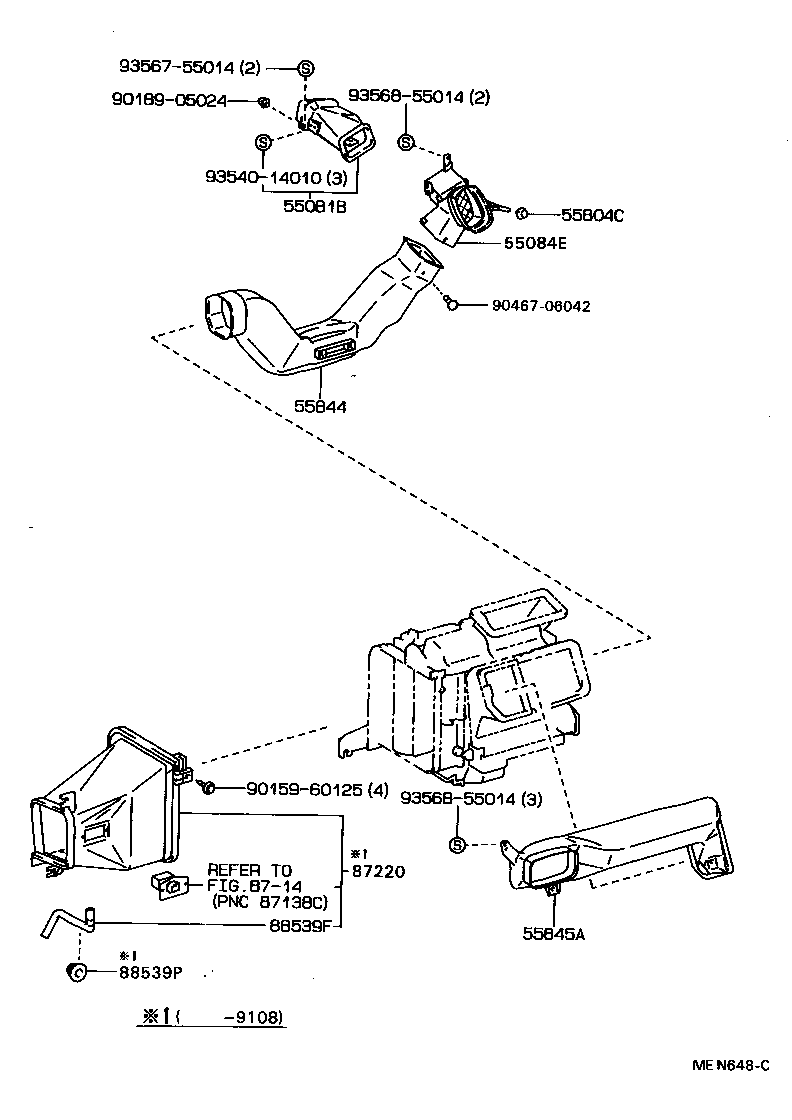

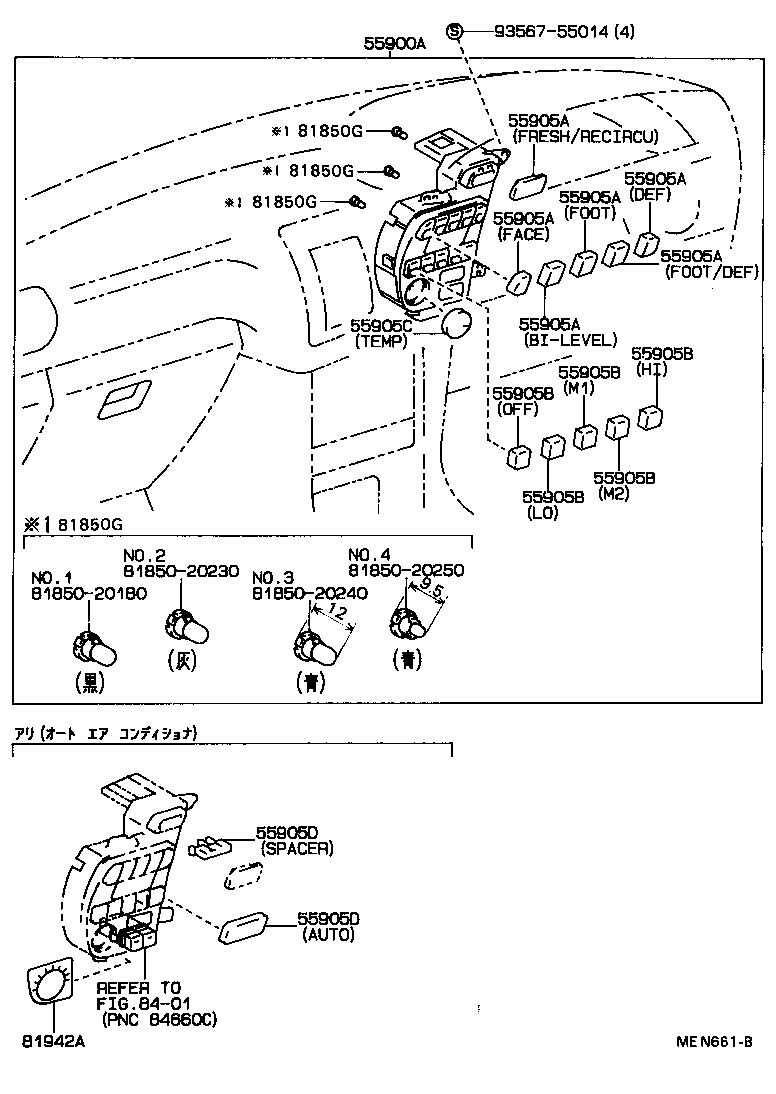

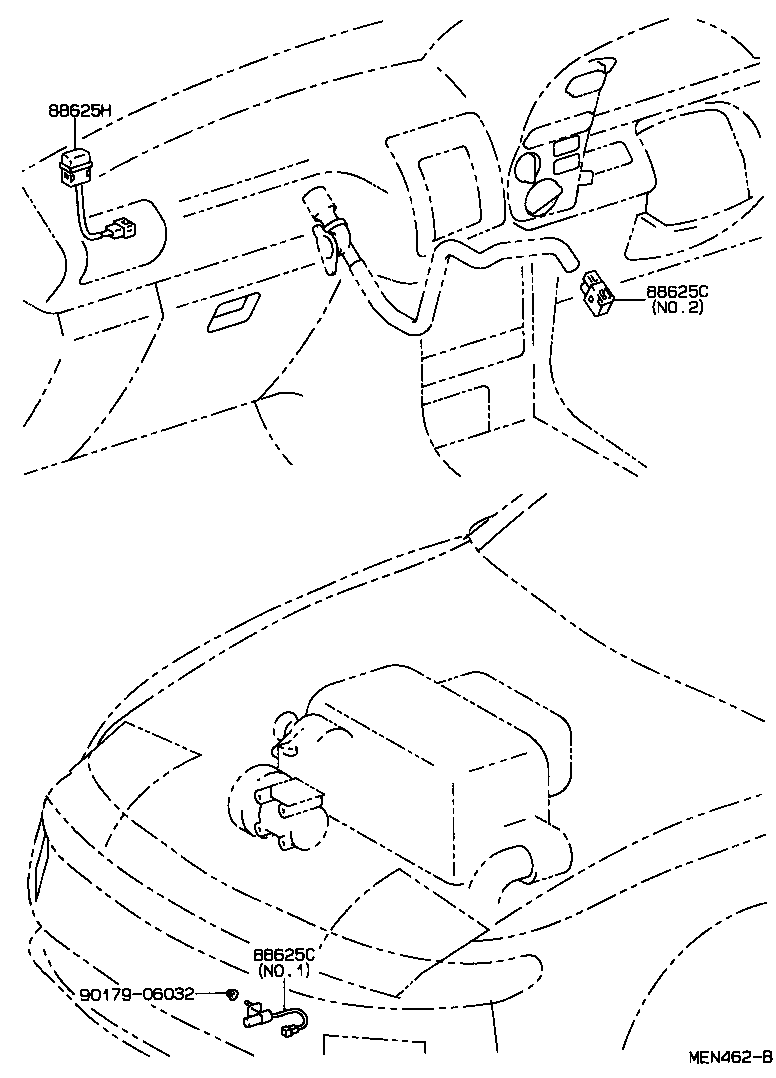

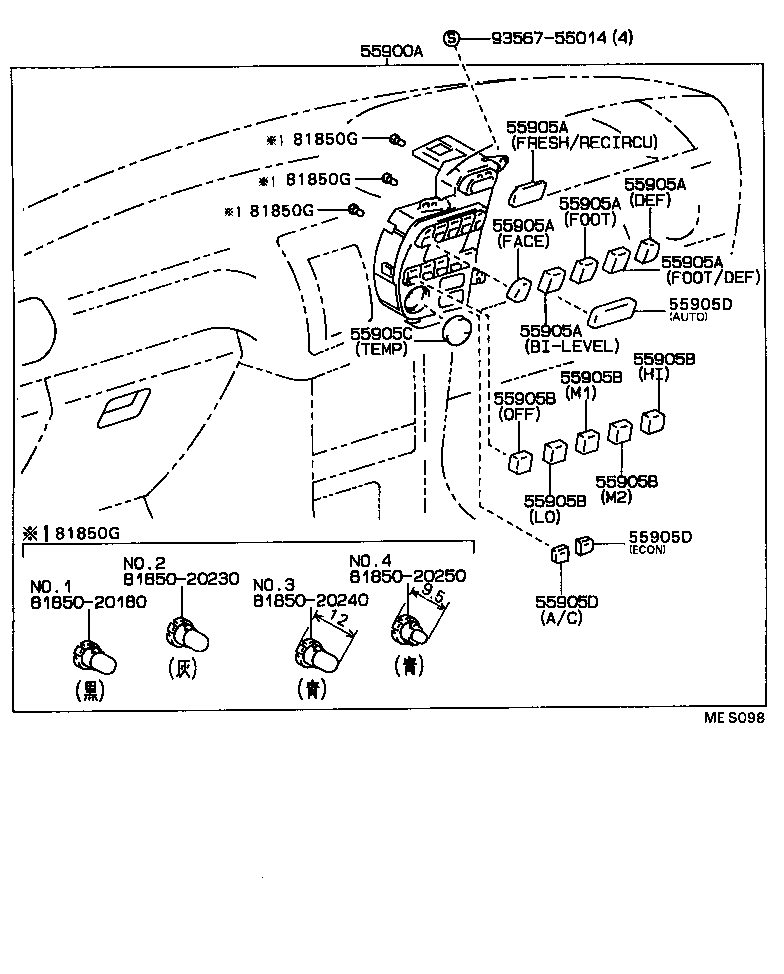

Figure MEN660A MEN660A 1989-09 → 1991-08 Figure MEN660A MEN660A 1989-10 → 1991-08 Figure MEN661B MEN661B 1989-08 → 1991-08 Figure MES098 MES098 1990-04 → 1991-08 Figure MES098 MES098 1991-08 → — Figure MEN648C MEN648C 1989-09 → — Figure MEN462B MEN462B 1989-09 → —

Part groups

PNCDescription
55081B Duct Sub-assy, Cowl TO Register
55084E Duct Sub-assy, Heater TO Register, NO.1
55804C Knob Sub-assy, Air Damper Control
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
81850G Lamp Assy, Indicator
81942A Sheet, Heater Control Name, NO.1
87220 Duct Assy, Air
87284 Resistor Sub-assy, Variable
88539F Hose, Drain
88539P Grommet(FOR DRAIN HOSE)
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
