Toyota Celica

1993-09 → 1999-08 · chassis ST20# · catalogue 252170 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 11 illustrations

Illustrations

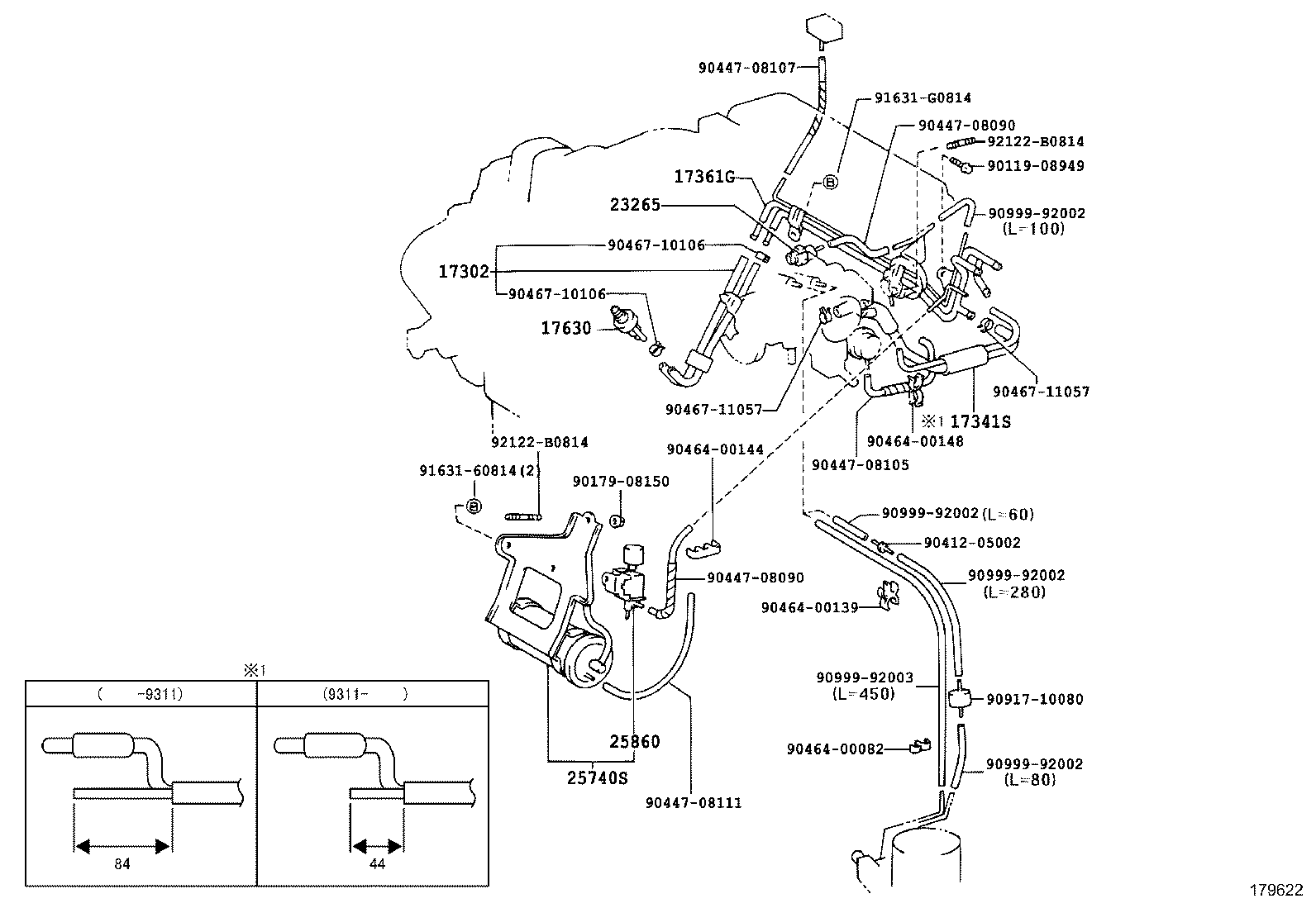

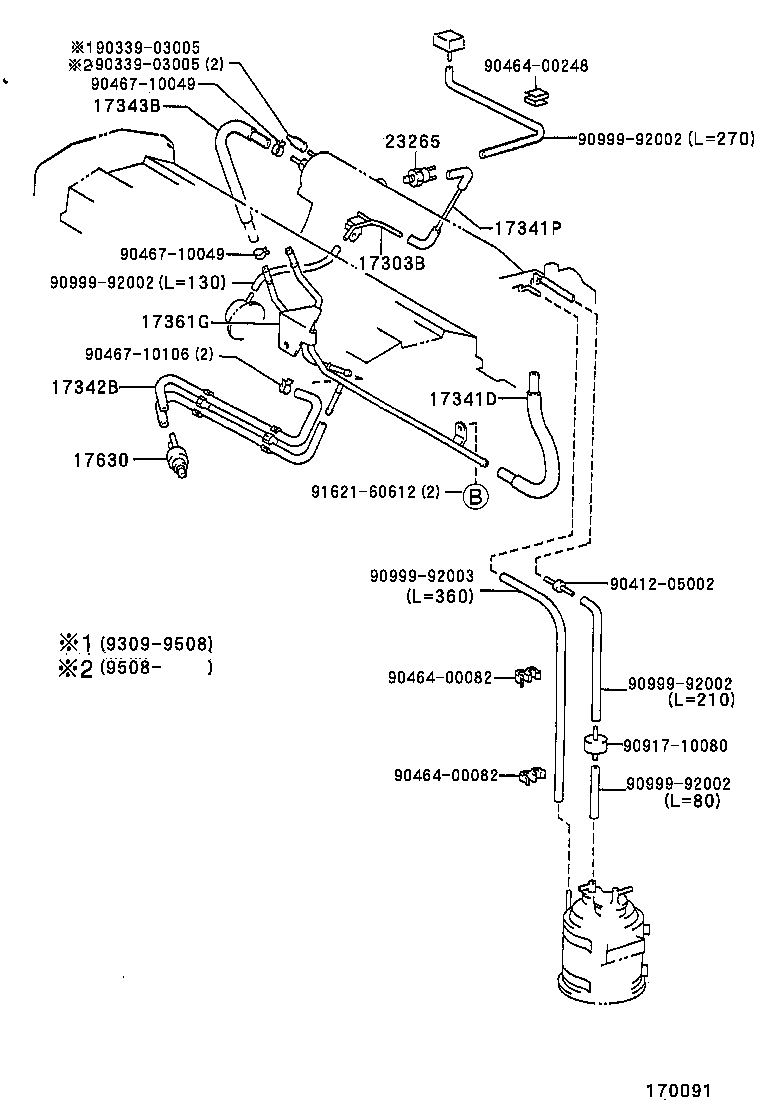

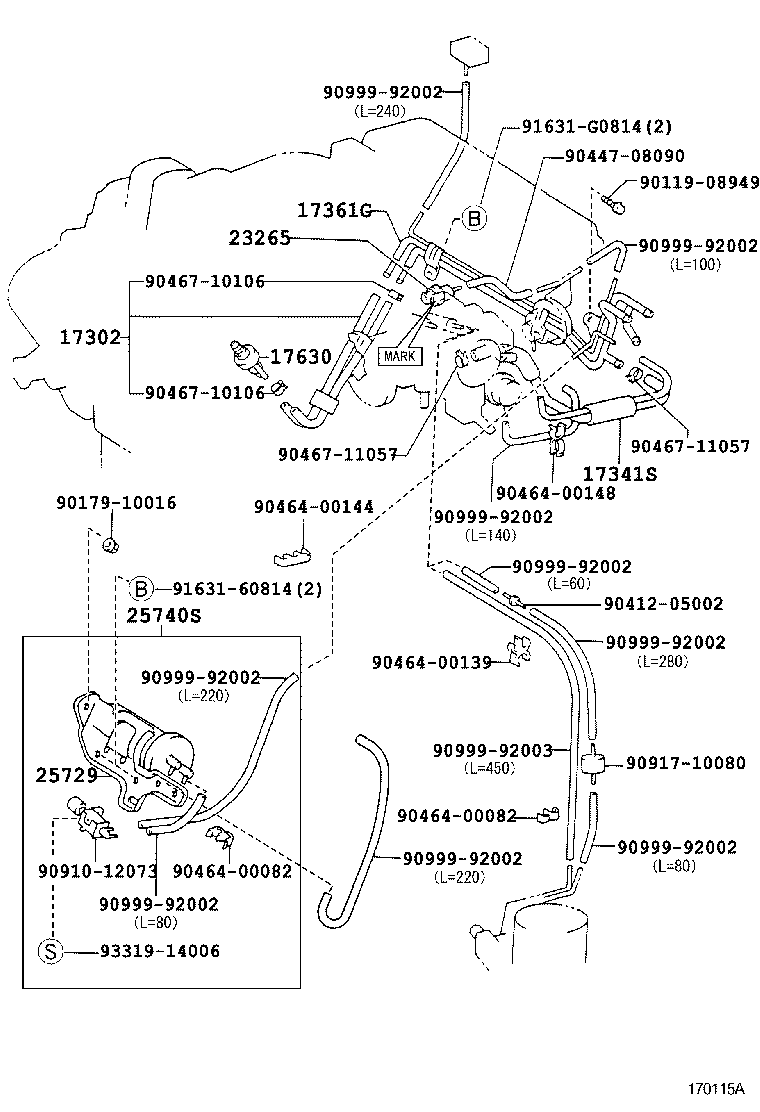

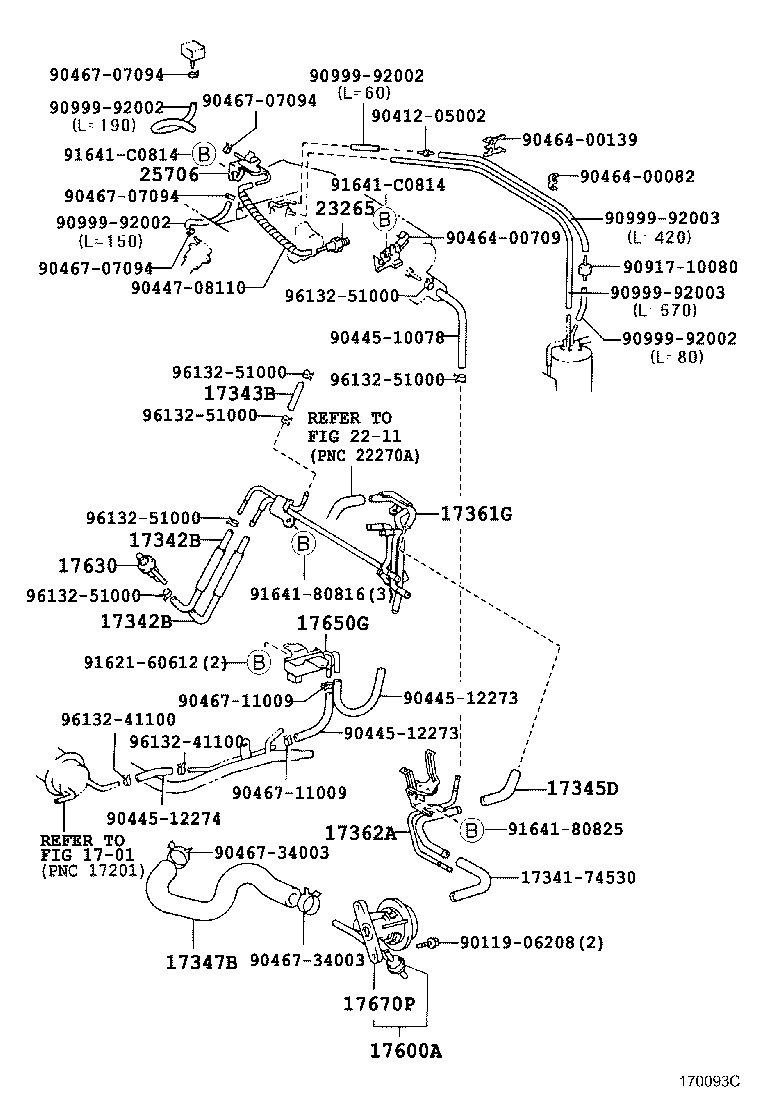

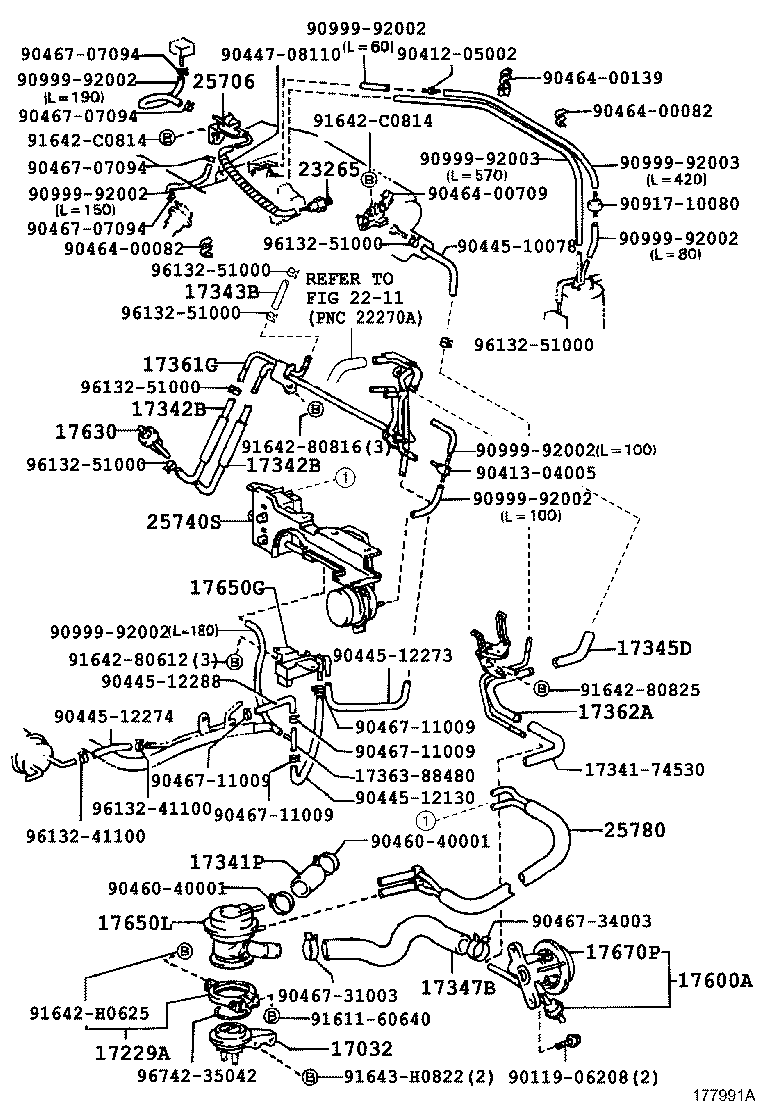

Figure 170020 170020 1993-09 → — Figure 170091 170091 1993-09 → 1996-06 Figure 170089 170089 1996-06 → — Figure 179622 179622 1993-09 → 1995-08 Figure 179622 179622 1995-08 → 1995-12 Figure 170115A 170115A 1995-08 → 1995-12 Figure 170115A 170115A 1995-12 → 1996-06 Figure 170090B 170090B 1996-06 → 1997-12 Figure 171404 171404 1997-12 → — Figure 170093C 170093C 1994-02 → — Figure 177991A 177991A 1994-02 → 1994-04

Part groups

PNCDescription
17032 Bracket Sub-assy, Air Valve
17229A Band, V
17302 Hose Sub-assy, Air
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17341S Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17345D Hose, Air, NO.5
17347B Hose, Air, NO.7
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17600A Valve Assy, Air By-pass W/Hose
17630 Valve Assy, Air Control
17650G Valve, Duty Vacuum Switching
17650L Valve Assy, Air By-pass, NO.2
17670P Valve Assy, Air By-pass
23265 Filter, Gas, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25729 Tank, Vacuum Surge W/Bracket
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25780 Hose Assy, Vacuum Transmitting, NO.3
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
