Toyota Celica
1993-09 → 1999-08 · chassis ST20# · catalogue 252170 · Japan
Discontinued model
Data version 2000-03

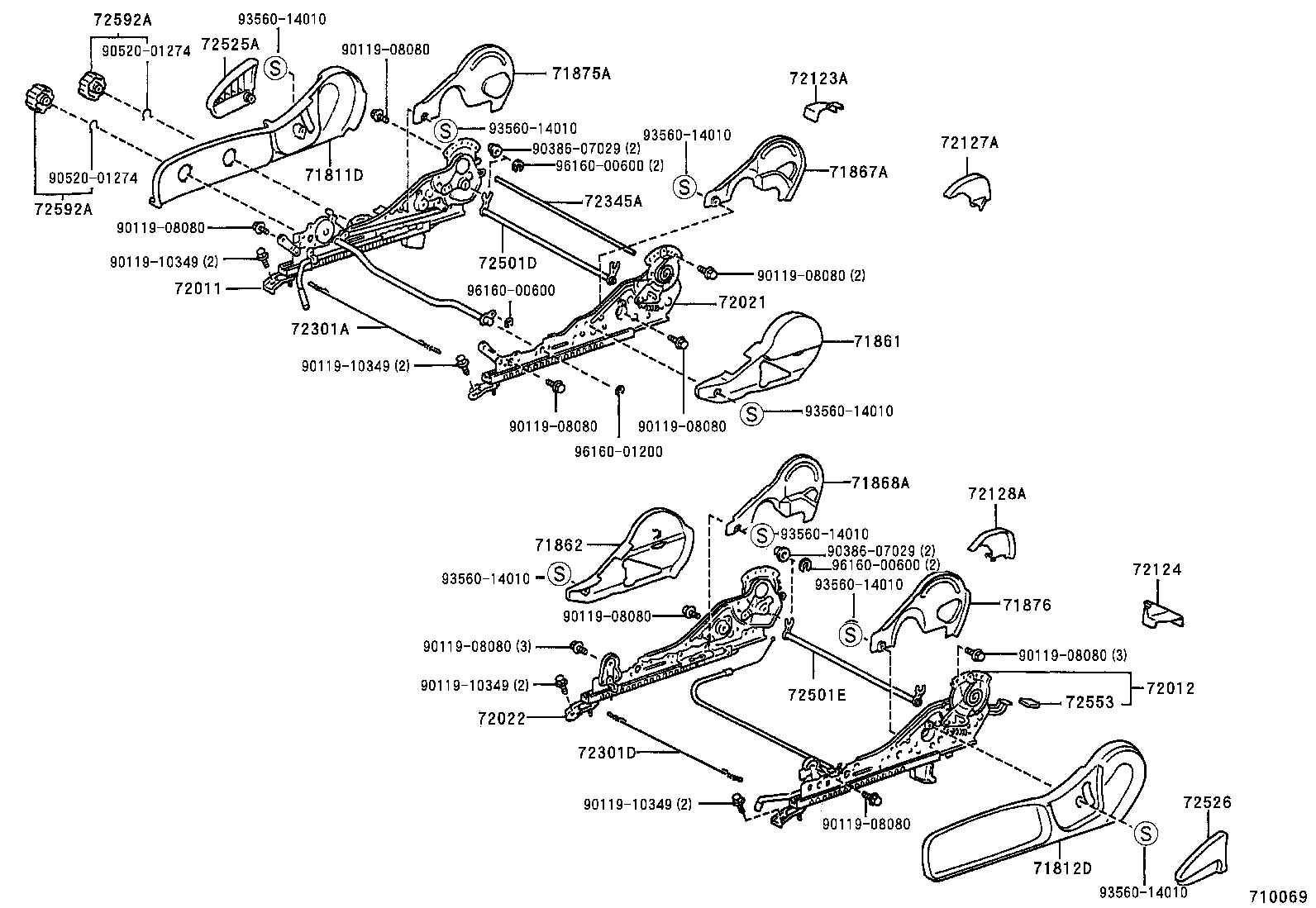

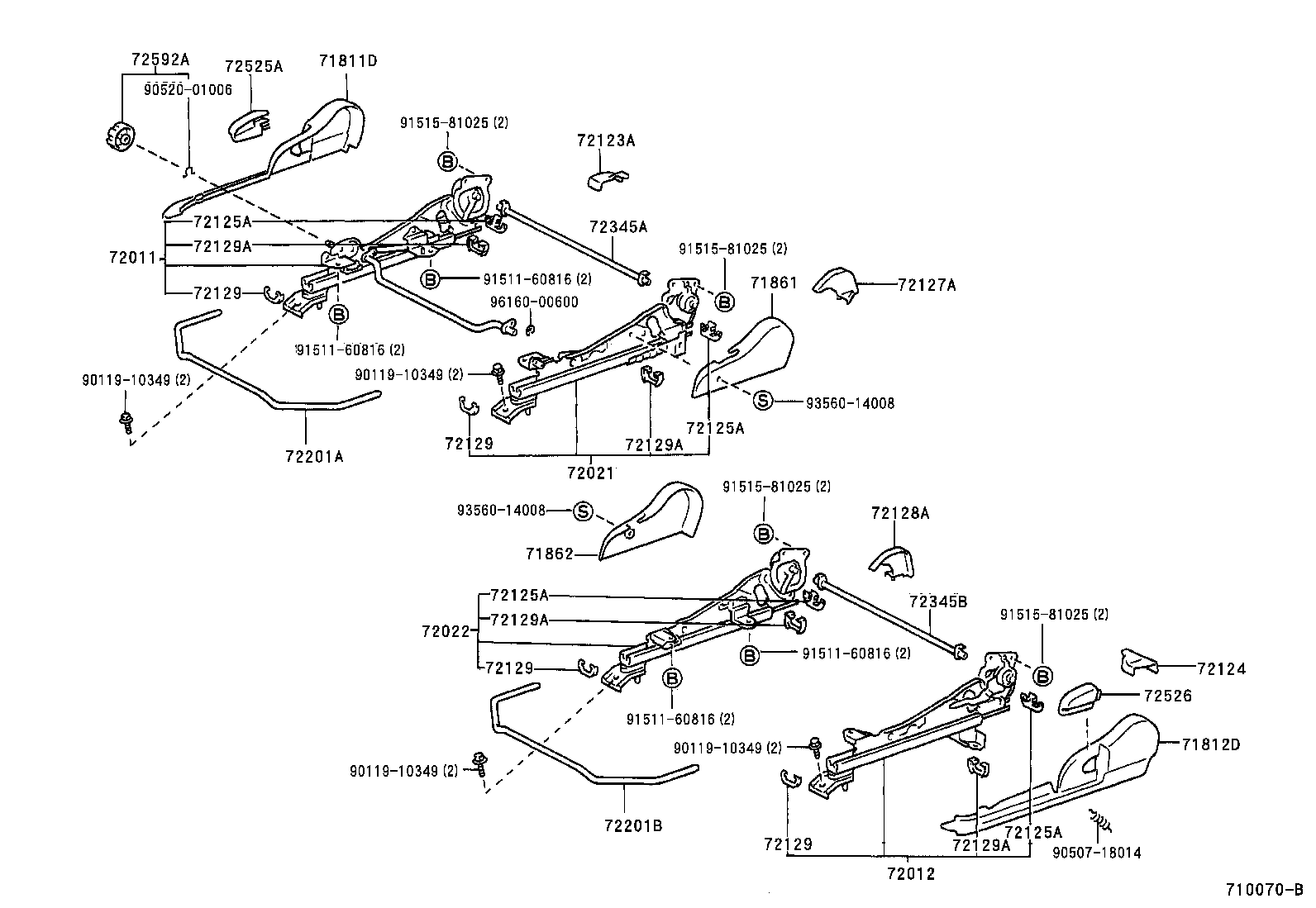

Front Seat & Seat Track
65 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71505 | Pad Sub-assy, Front Seatback W/Frame, RH |
| 71506 | Pad Sub-assy, Front Seatback W/Frame, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72021 | Adjuster Sub-assy, Front Seat, Inner RH |
| 72022 | Adjuster Sub-assy, Front Seat, Inner LH |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72125A | Cover, Seat Track, Upper Rear |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72129A | Protector, Seat Track Lower Rail, NO.2 |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72201A | Handle Sub-assy, Seat Track RH |
| 72201B | Handle Sub-assy, Seat Track LH |
| 72257 | Striker, Front Seat Lock |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72345A | Pipe, Reclining Connecting |
| 72345B | Pipe, Reclining Connecting |
| 72501D | Pipe Sub-assy, Reclining Connecting, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72552B | Cover, Reclining Hinge, LH |
| 72553 | Cover, Reclining Pedal |
| 72568 | Plate, Reclining Bolt Lock |
| 72591A | Lever, Reclining Remote Control |
| 72592A | Knob,Reclining Adjuster, RH |
| 72593 | Knob, Reclining Remote Control Lever |
| 72597 | Bezel, Reclining Remote Control |
| 72795 | Pad, Lumbar Support |
| 73173B | Cover, Front Seat Belt Hole |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
