Toyota Celica

1993-09 → 1999-08 · chassis ST20# · catalogue 252170 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

26 part groups · 7 illustrations

Illustrations

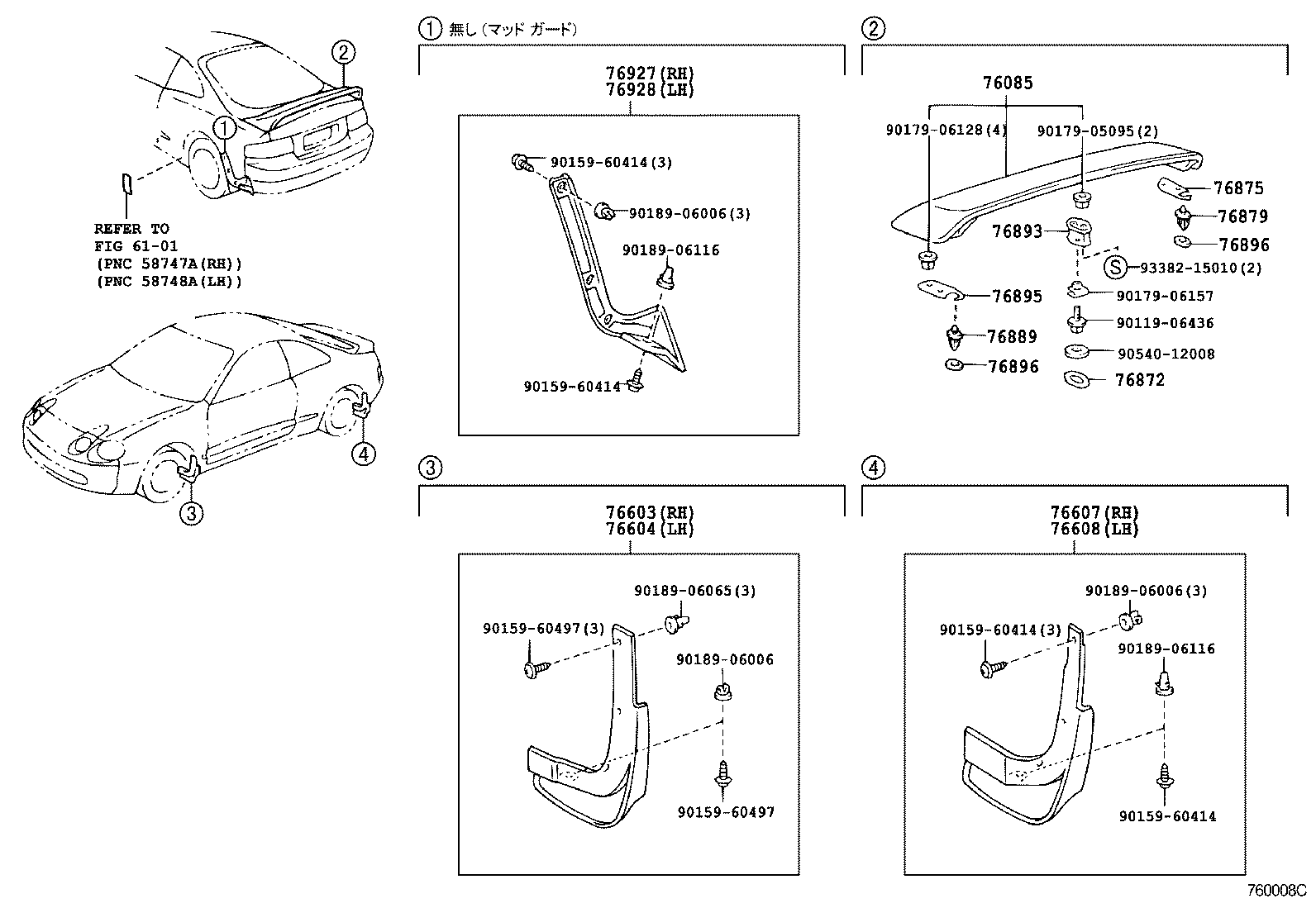

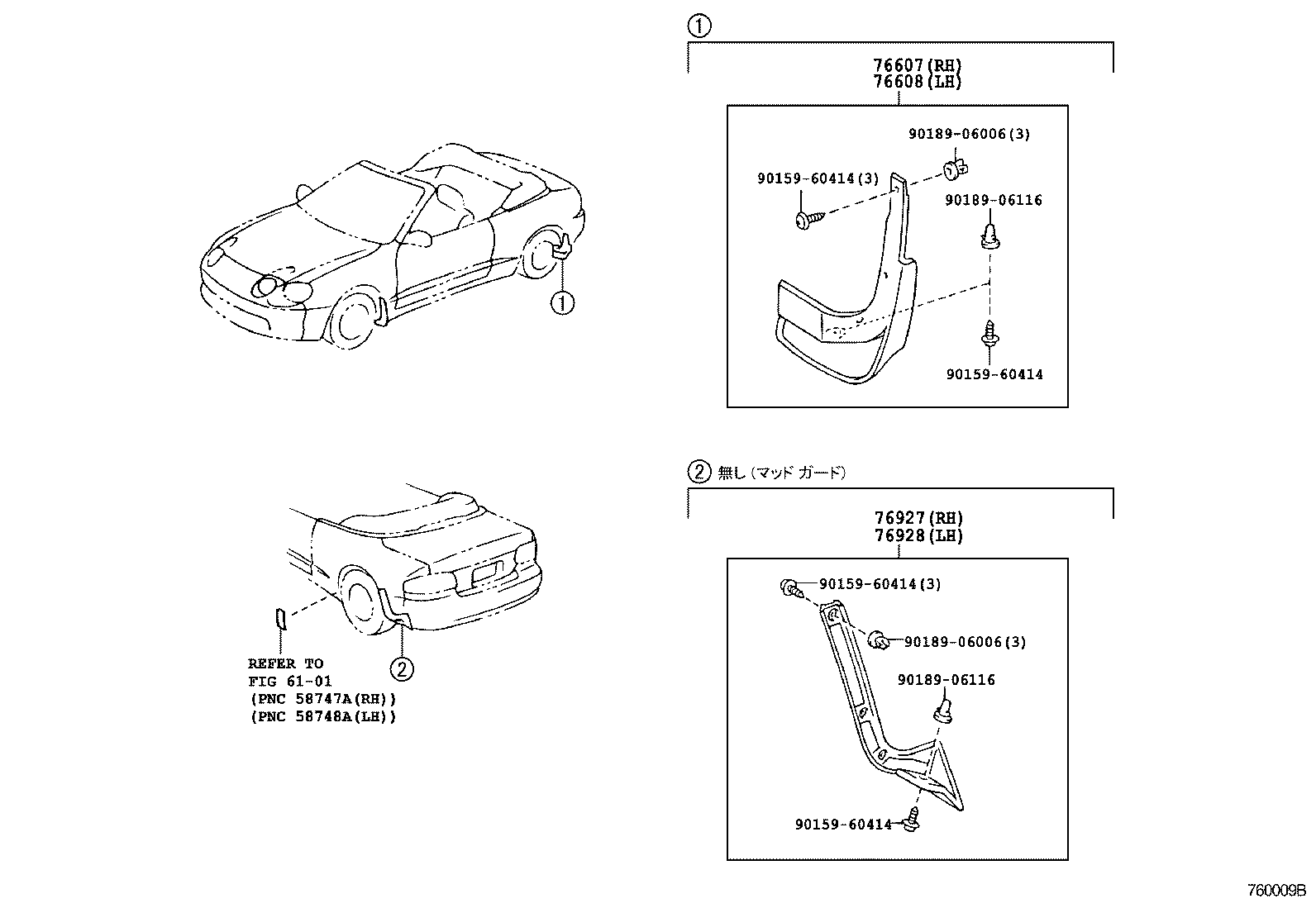

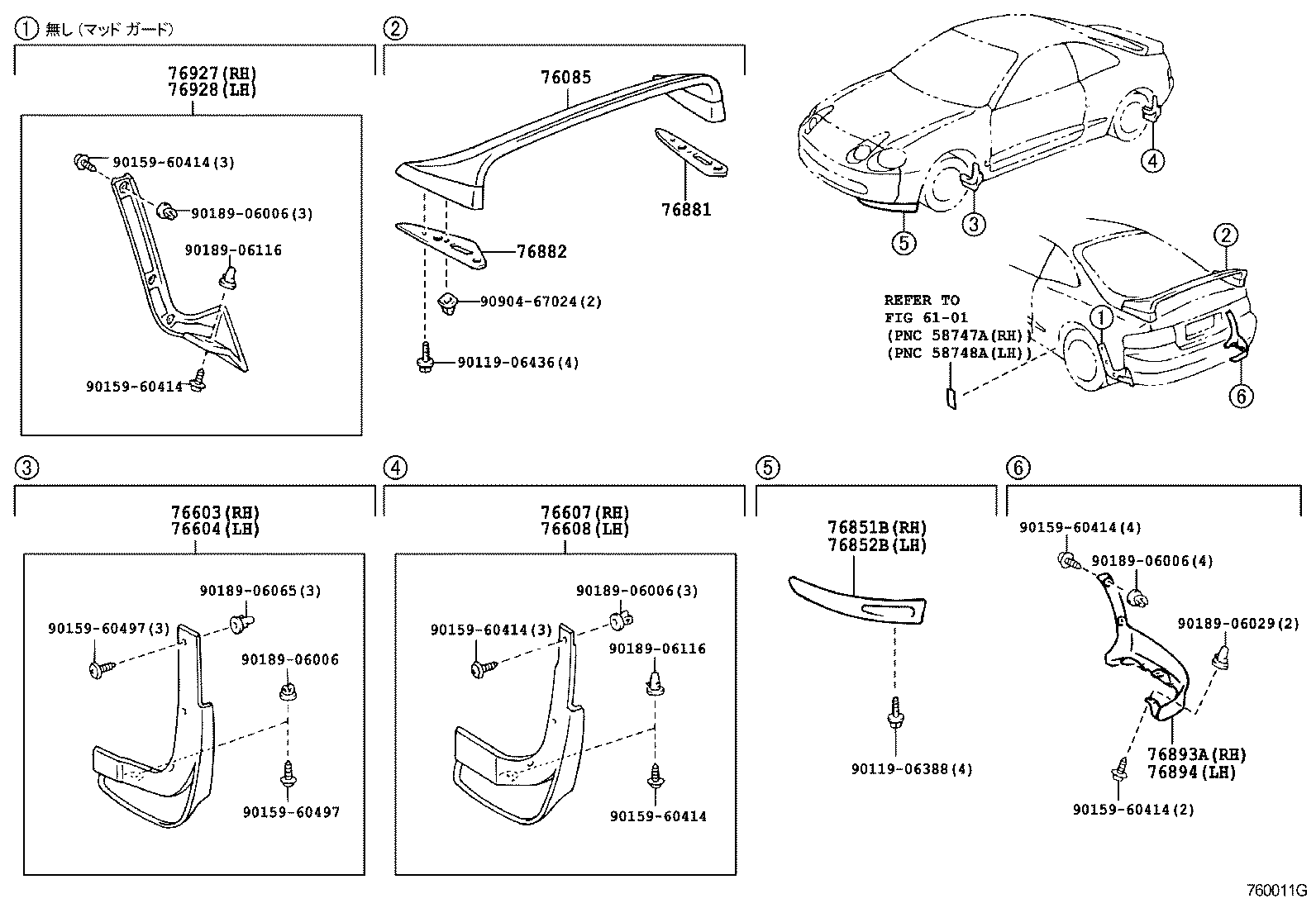

Figure 760010B 760010B 1993-09 → 1995-08 Figure 760011G 760011G 1994-02 → 1994-10 Figure 760011G 760011G 1997-12 → — Figure 760009B 760009B 1994-08 → — Figure 760008C 760008C 1995-08 → 1997-12 Figure 760008C 760008C 1997-12 → — Figure 760005A 760005A 1995-08 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851B Spoiler, Front, RH
76852B Spoiler, Front, LH
76865A Retainer, Side Mudguard
76872 Protector, Rear Spoiler, NO.1
76875 Protector, Rear Spoiler, NO.4
76879 Clip, Rear Spoiler, NO.1
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76889 Clip, Rear Spoiler, NO.2
76893 Cover, Rear Spoiler, NO.1
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
76895 Protector, Rear Spoiler, NO.5
76896 Protector, Rear Spoiler, NO.6
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76922D Protector, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
76927 Protecter, Rear Mudguard, RH
76928 Protecter, Rear Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
