Toyota Celica

1993-09 → 1999-08 · chassis ST20# · catalogue 252170 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 2 illustrations

Illustrations

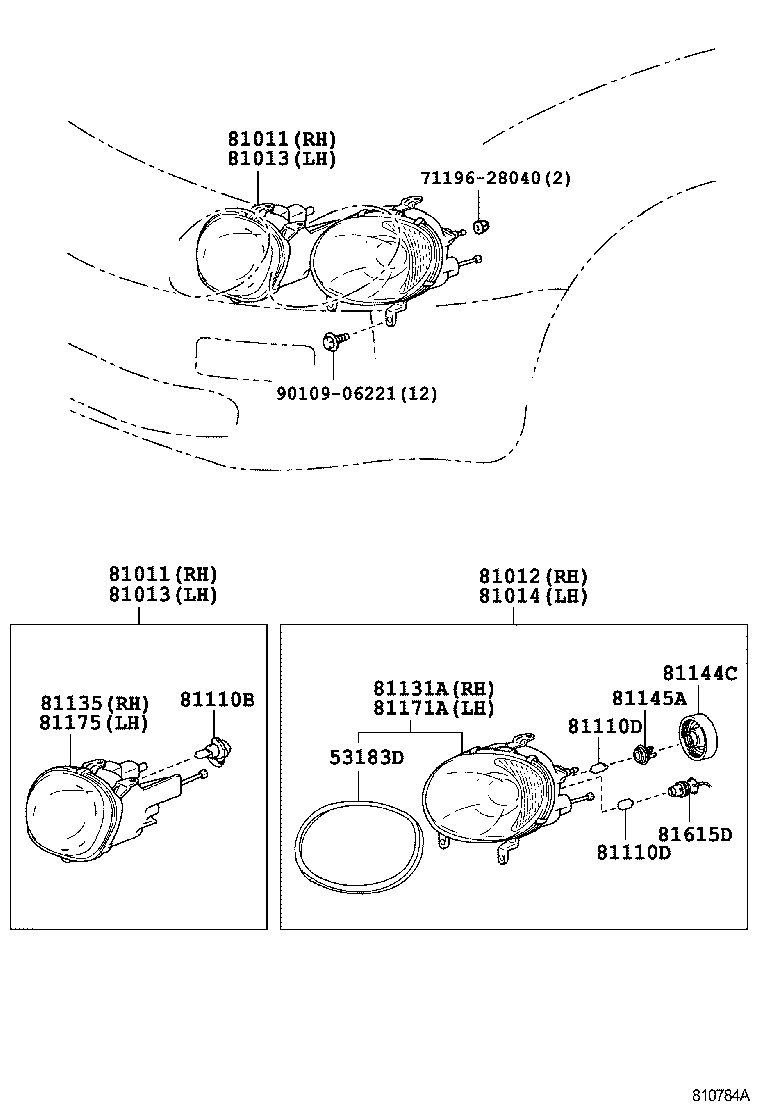

Figure 814667 814667 1993-09 → 1997-12 Figure 810784A 810784A 1997-12 → —

Part groups

PNCDescription
53183D Seal, Headlamp Cover TO Hood
81011 Headlamp Sub-assy, NO.1
81012 Headlamp Sub-assy, NO.2
81013 Headlamp Sub-assy, Type 1, LH
81014 Headlamp Sub-assy, Type 2, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81125 Cord, Headlamp
81131A Unit, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81145A Adapter Assy
81171A Unit, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
