Toyota Celica

1993-09 → 1999-08 · chassis ST20# · catalogue 252170 · Japan

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

13 part groups · 6 illustrations

Illustrations

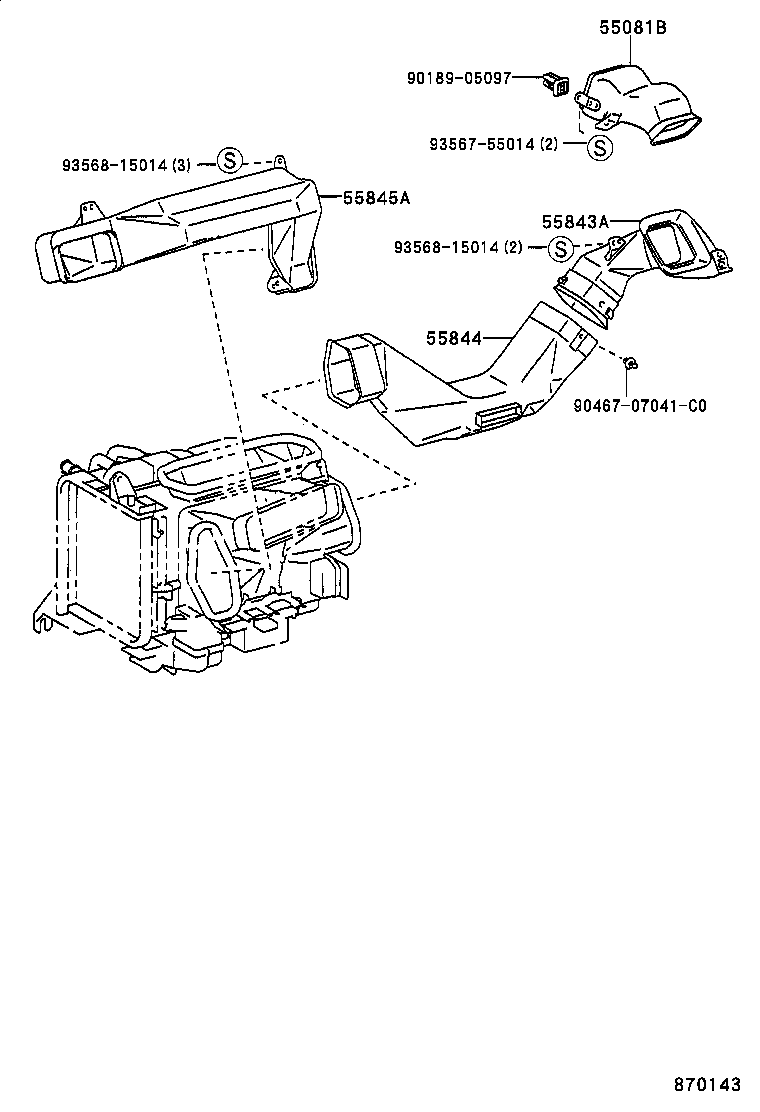

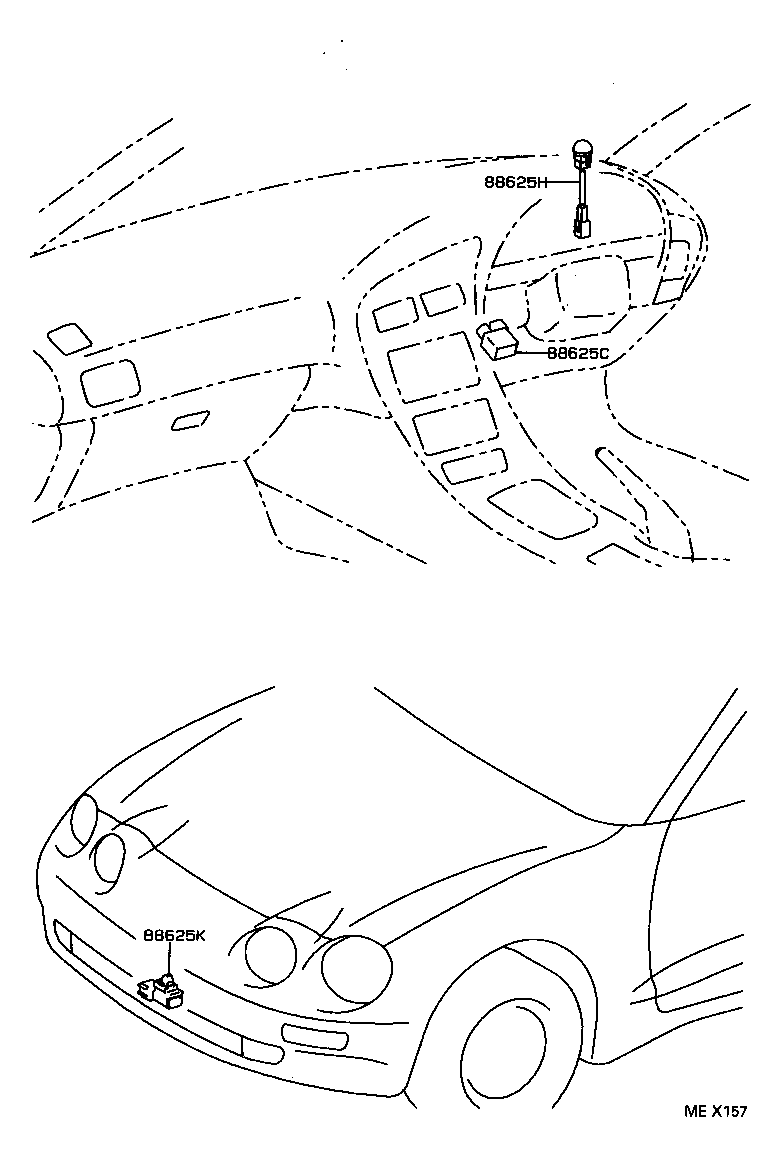

Figure MEX155B MEX155B 1993-09 → 1995-08 Figure MEX155B MEX155B 1995-08 → — Figure MEX147A MEX147A 1995-08 → — Figure MEX147A MEX147A 1995-12 → — Figure 870143 870143 1993-09 → — Figure MEX157 MEX157 1993-09 → —

Part groups

PNCDescription
55081B Duct Sub-assy, Cowl TO Register
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
