Toyota Celica
1999-08 → 2006-04 · chassis ZZT23# · catalogue 252180 · Japan
Discontinued model
Data version 2006-10

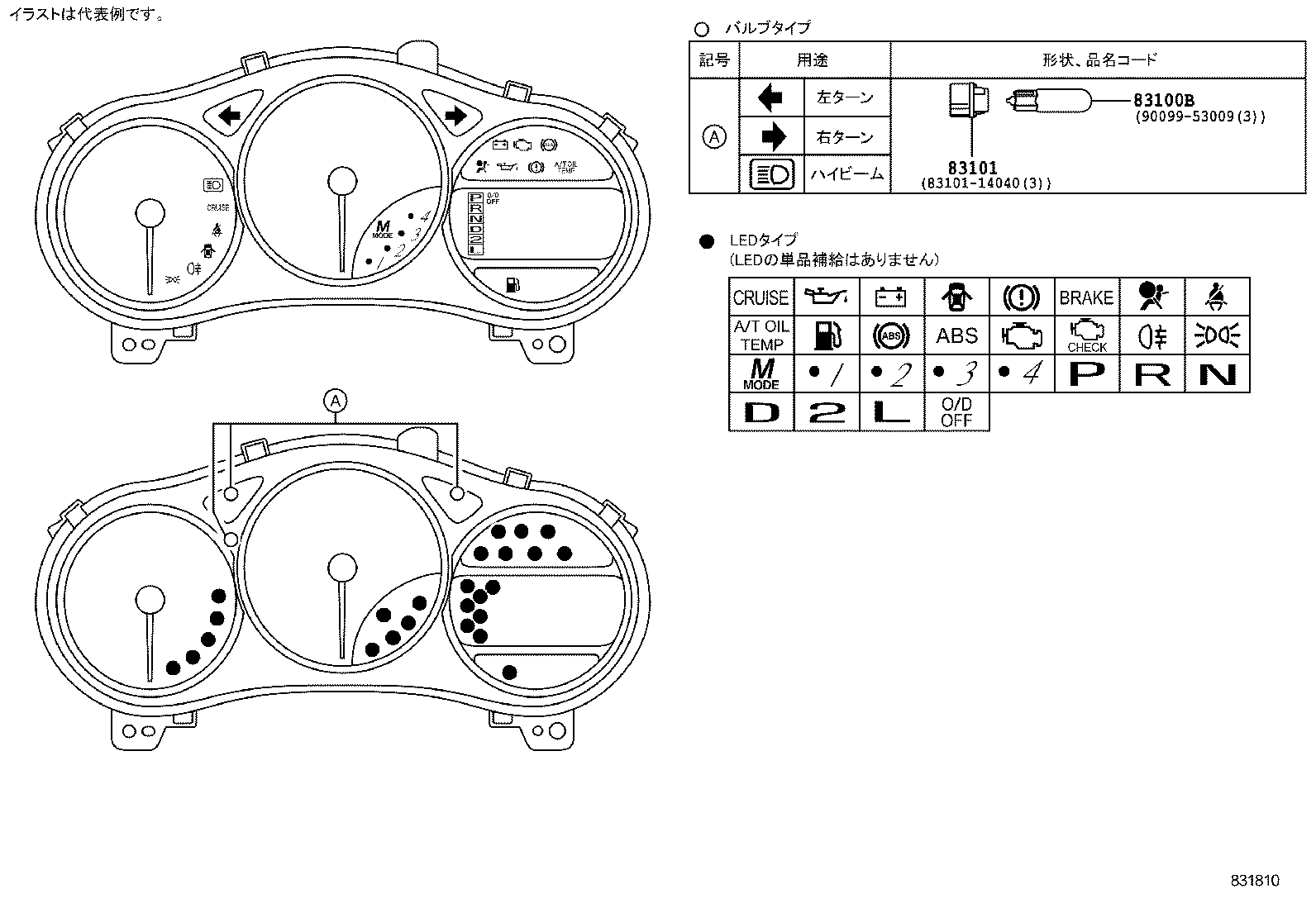

Meter
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83138G | Glass, Combination Meter |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
