Toyota Celica

1999-08 → 2006-04 · chassis ZZT23# · catalogue 252180 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 3 illustrations

Illustrations

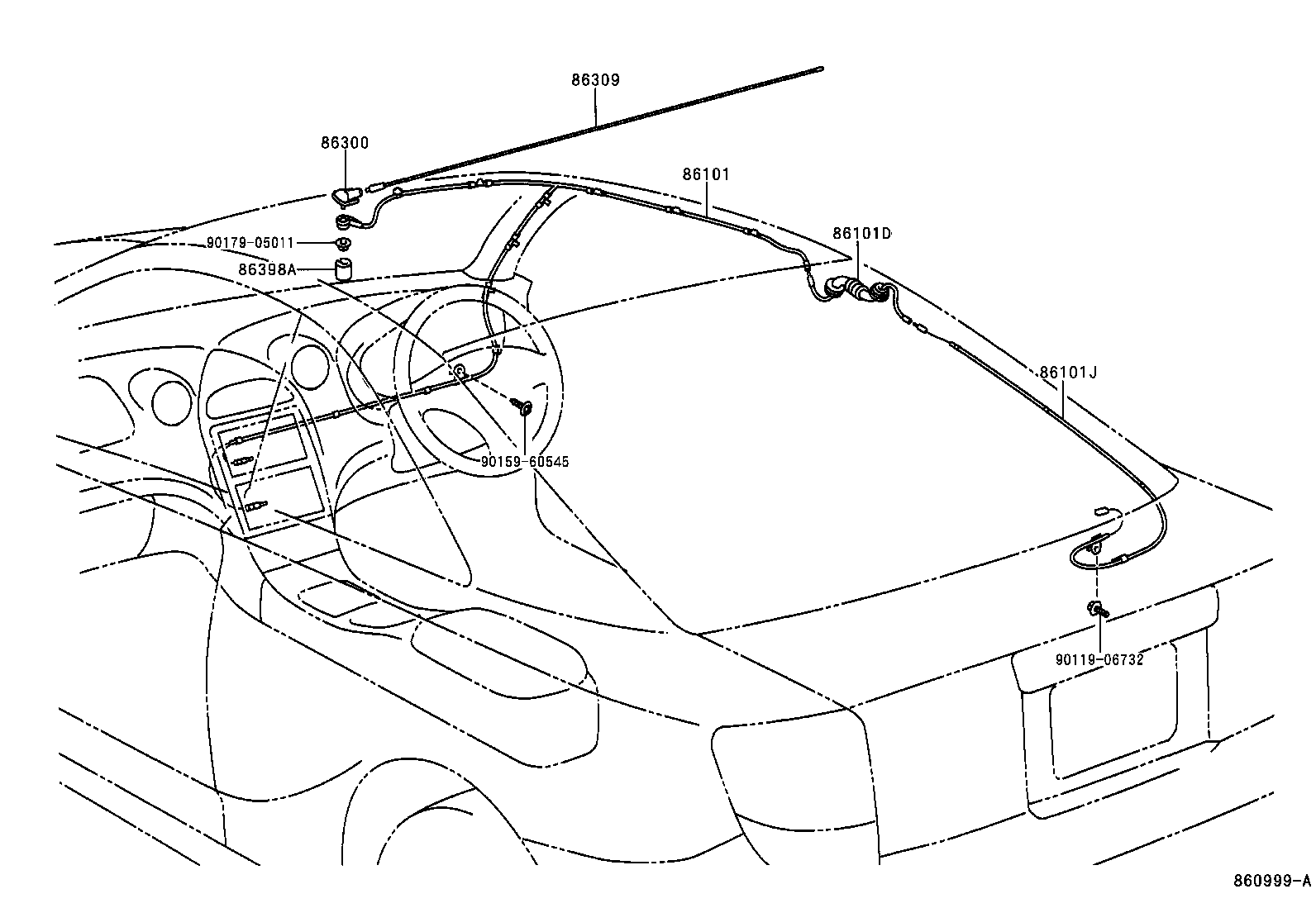

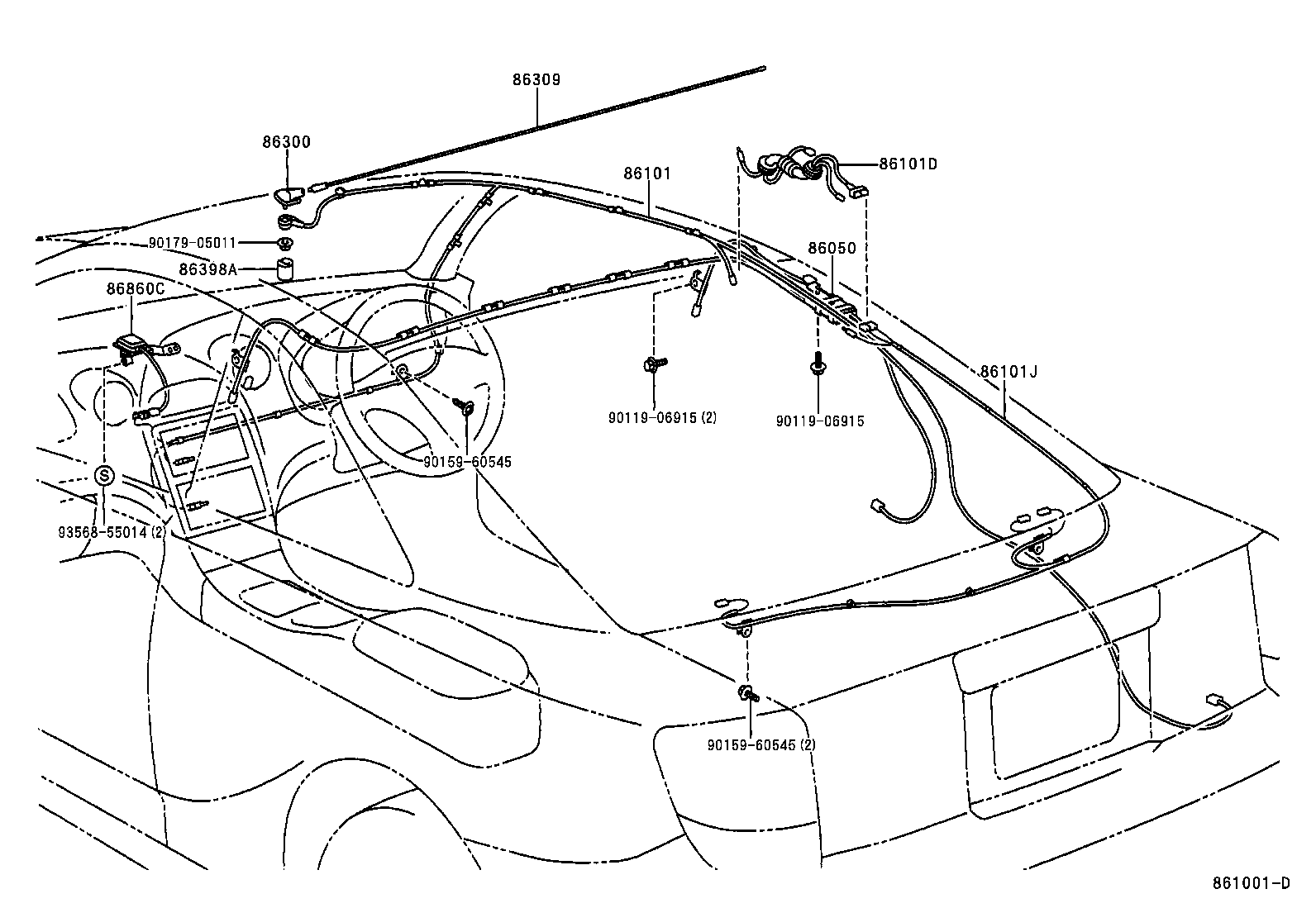

Figure 860998A 860998A 1999-08 → — Figure 860999A 860999A 1999-08 → — Figure 861001D 861001D 1999-08 → —

Part groups

PNCDescription
86050 Antenna Assy, Television
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86300 Antenna Assy, W/Holder
86309 Pole Sub-assy, Pillar Antenna
86398A Cap, Antenna Shield
86860C Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
