Toyota Corona FF Coupe

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 253110 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

14 part groups · 6 illustrations

Illustrations

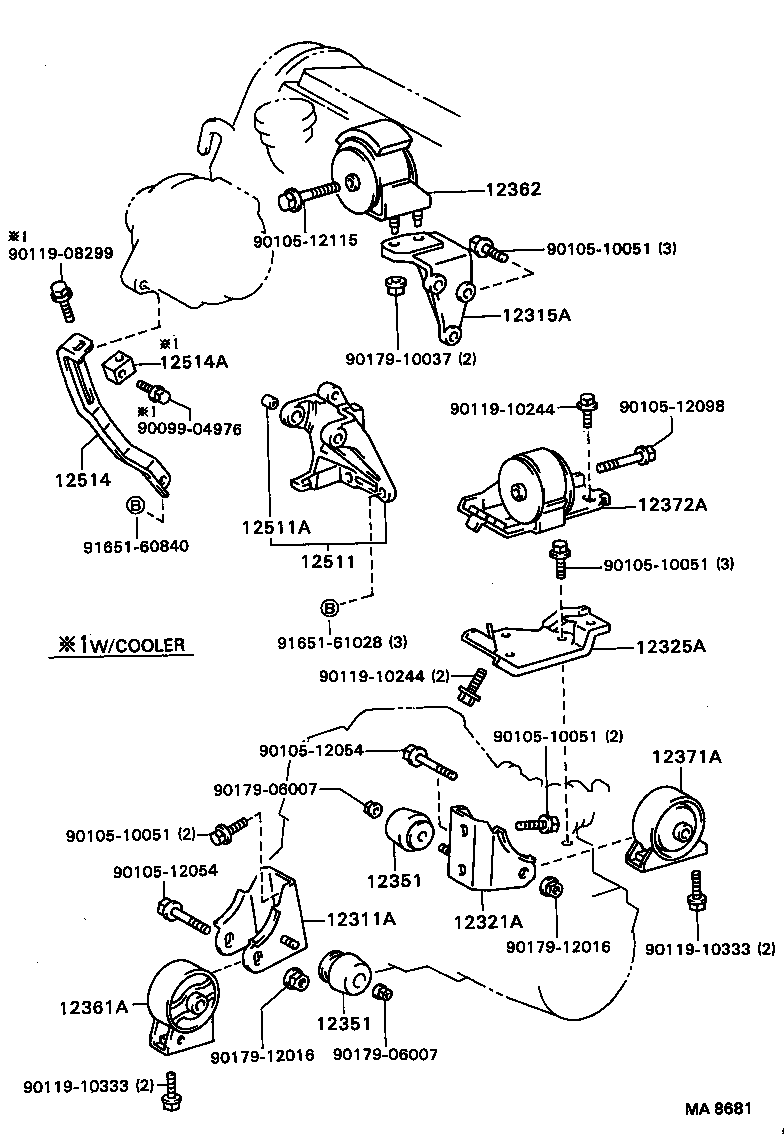

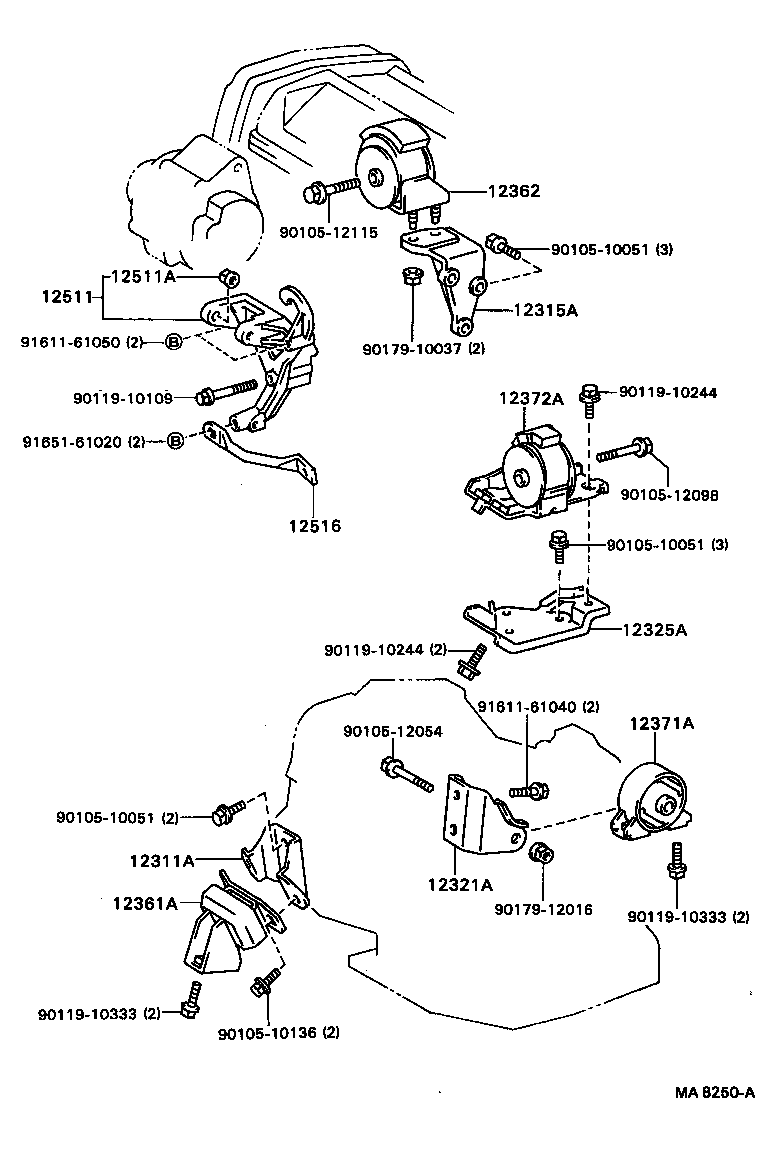

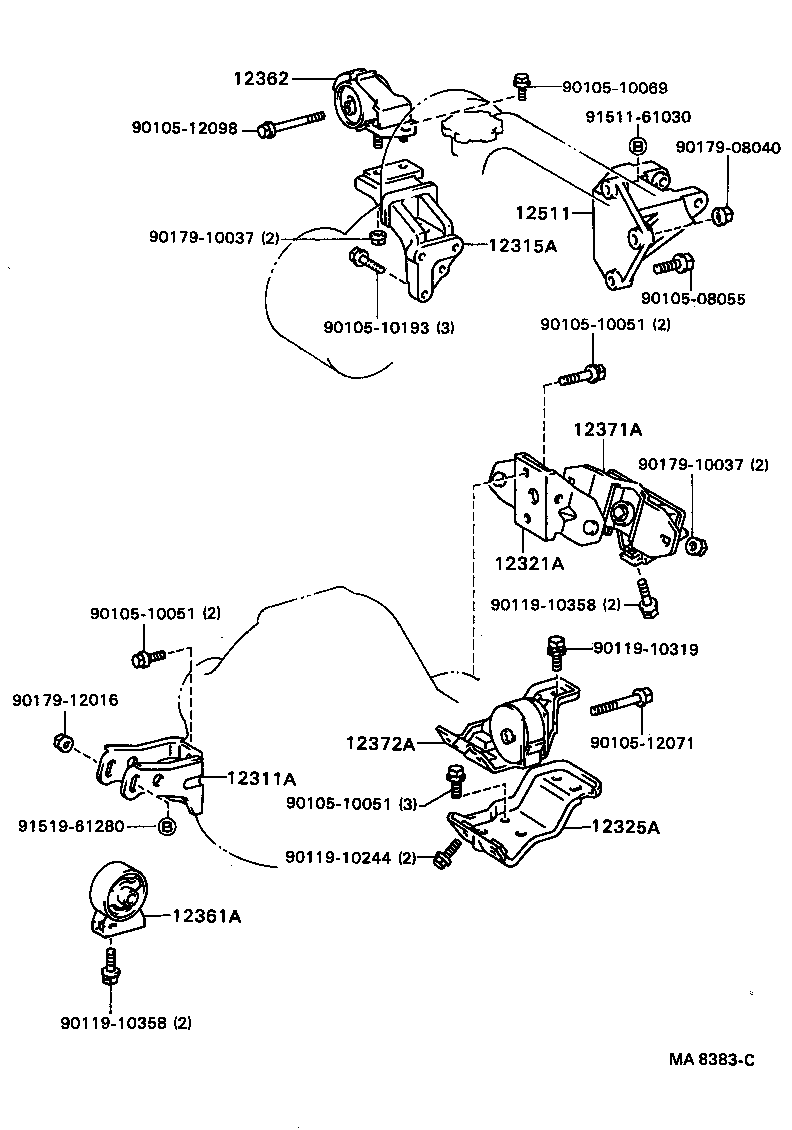

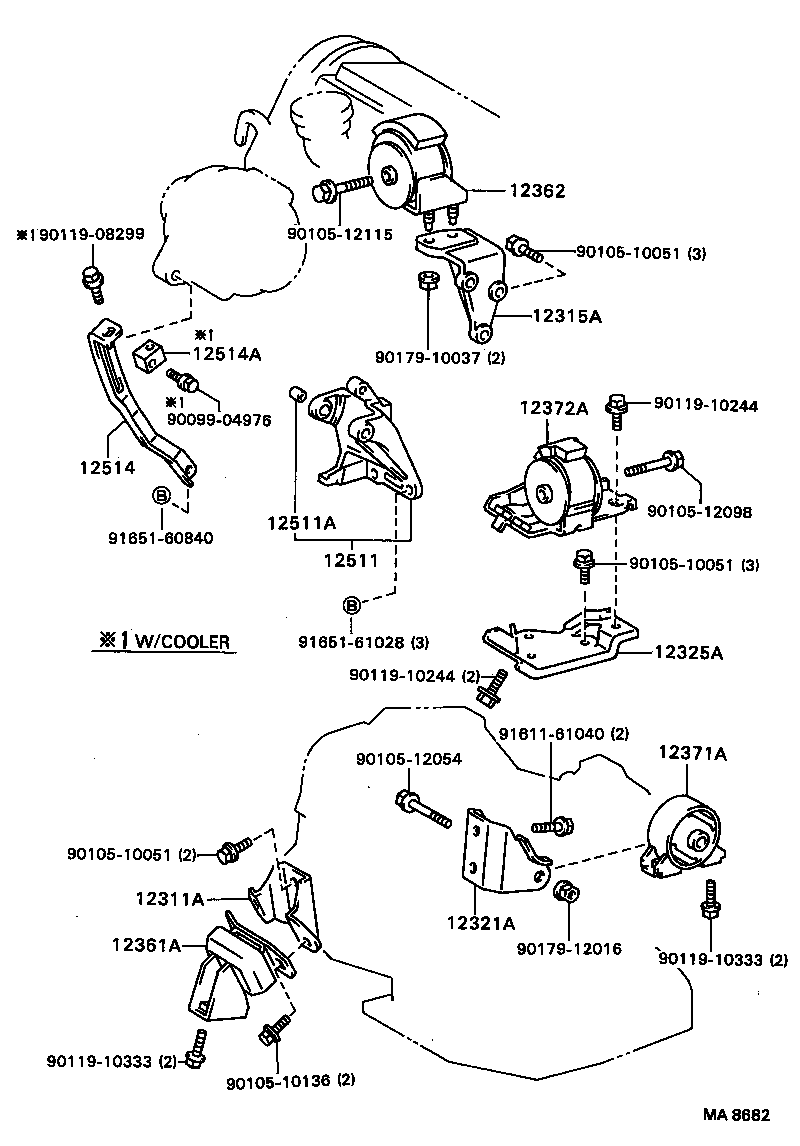

Figure MA8382D MA8382D 1985-08 → — Figure MA8383C MA8383C 1985-08 → — Figure MA8681 MA8681 1985-08 → — Figure MA8682 MA8682 1985-08 → — Figure MA8249A MA8249A 1985-08 → — Figure MA8250A MA8250A 1985-08 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
12516 Bracket, Alternator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
