Toyota Corona FF Coupe
1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 253110 · Japan
Discontinued model
Data version 1987-12

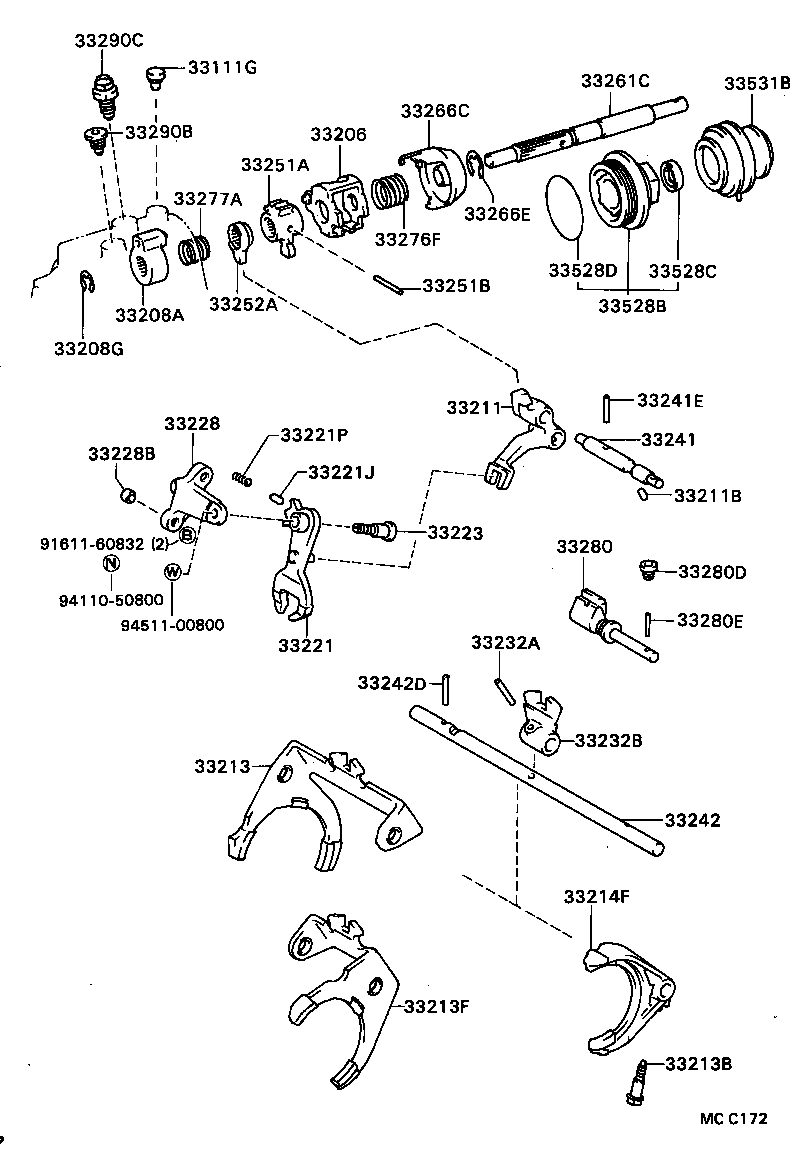

Gear Shift Fork & Lever Shaft (MTM)
66 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33111G | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33206 | Plate Sub-assy, Shift Interlock |
| 33208A | Pin Sub-assy, Reverse Restrict |
| 33208G | Ring, E(FOR REVERSE RESTRICT PIN) |
| 33211 | Fork, Reverse Shift |
| 33211B | Roller(FOR REVERSE SHIFT FORK) |
| 33211D | Ball(FOR REVERSE SHIFT FORK) |
| 33213 | Fork, 1ST & 2ND Shift |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33213F | Fork, 3RD & 4TH Shift |
| 33214F | Fork, 5TH Shift |
| 33221 | Arm, Reverse Shift |
| 33221J | Roller(FOR REVERSE SHIFT ARM) |
| 33221P | Spring, Compression(FOR REVERSE SHIFT ARM ROLLER) |
| 33223 | Pivot, Shift Arm |
| 33225 | Shoe, Shift Arm |
| 33225B | Ring, E(FOR SHIFT ARM SHOE) |
| 33228 | Bracket, Reverse Shift Arm |
| 33228B | Pin, Ring(FOR REVERSE SHIFT ARM BRACKET) |
| 33232A | Pin, Slotted Spring (FOR SHIFT HEAD SET) |
| 33232B | Head, 5TH Shift |
| 33232D | Bolt (FOR SHIFT HEAD SET) |
| 33233F | Head, 3RD & 4TH Shift |
| 33240 | Bracket Assy, Reverse Shift Arm |
| 33241 | Shaft, Reverse Shift Fork |
| 33241E | Pin, Slotted Spring(FOR REVERSE SHIFT FORK SHAFT) |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33242D | Pin, Slotted Spring (FOR SHIFT FORK SHAFT) |
| 33242E | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33243 | Shaft, 1ST & 2ND Shift Fork |
| 33244C | Shaft, Reverse & 5TH Shift Fork |
| 33245 | Shaft, 3RD & 4TH Shift Fork |
| 33251A | Lever, Shift, Inner NO.1 |
| 33251B | Pin, Slotted Spring (FOR SHIFT INNER LEVER) |
| 33252A | Lever, Shift, Inner NO.2 |
| 33256 | Lever, Select Inner |
| 33256C | Pin, Slotted Spring (FOR SELECT INNER LEVER) |
| 33261C | Shaft, Shift & Select Lever |
| 33266A | Bolt (FOR SHIFT INTERLOCK PLATE) |
| 33266C | Plate, Shift Interlock |
| 33266D | Gasket (FOR SHIFT INTERLOCK PLATE) |
| 33266E | Ring, E (FOR SHIFT INTERLOCK PLATE) |
| 33275 | Seat, Shift Detent Ball Spring, NO.1 |
| 33275C | Ball (FOR SHIFT DETENT) |
| 33275E | Spring, Compression (FOR SHIFT DETENT BALL) |
| 33275F | Plug (FOR SHIFT DETENT BALL) |
| 33276E | Seat, Select Spring, NO.1 |
| 33276F | Spring, Compression, NO.1 (FOR SELECT RETURN) |
| 33276H | Ring, Shaft Snap (FOR SELECT SPRING NO.1 SEAT) |
| 33277 | Seat, Select Spring, NO.2 |
| 33277A | Spring, Compression, NO.2 (FOR SELECT RETURN) |
| 33277B | Ring, E (FOR SELECT SPRING NO.2 SEAT) |
| 33280 | Pin Assy, Reverse Restrict |
| 33280D | Plug, W/Head Straight Screw (FOR REVERSE RESTRICT PIN) |
| 33280E | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283G | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33290 | Ball Assy, Lock, NO.1 |
| 33290B | Ball Assy, Lock, NO.2 |
| 33290C | Ball Assy, Lock, NO.1 |
| 33528B | Cover, Control Shaft |
| 33528C | Seal, Oil (FOR CONTROL SHAFT COVER) |
| 33528D | Ring, O (FOR CONTROL SHAFT COVER) |
| 33528E | Bolt (FOR CONTROL SHAFT COVER) |
| 33531B | Boot, Dust (FOR SHIFT & SELECT LEVER SHAFT) |
| 33584A | Gasket, Control Shift Lever Retainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
