Toyota Corona FF Coupe

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 253110 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 8 illustrations

Illustrations

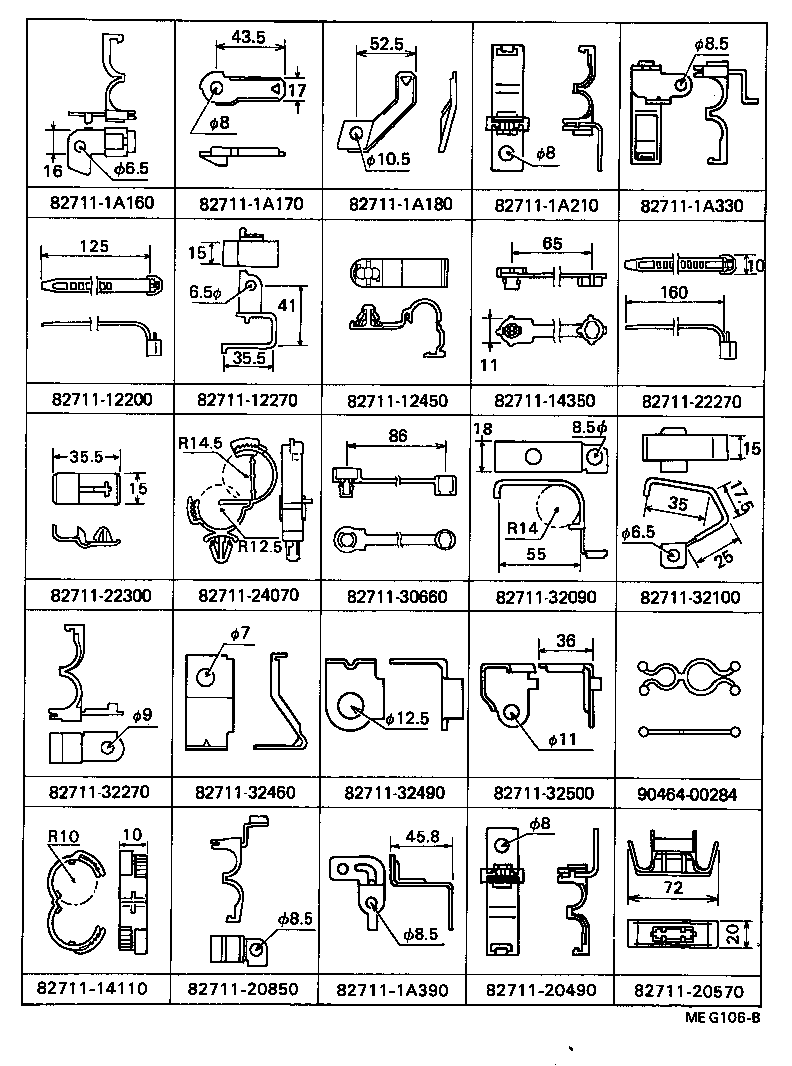

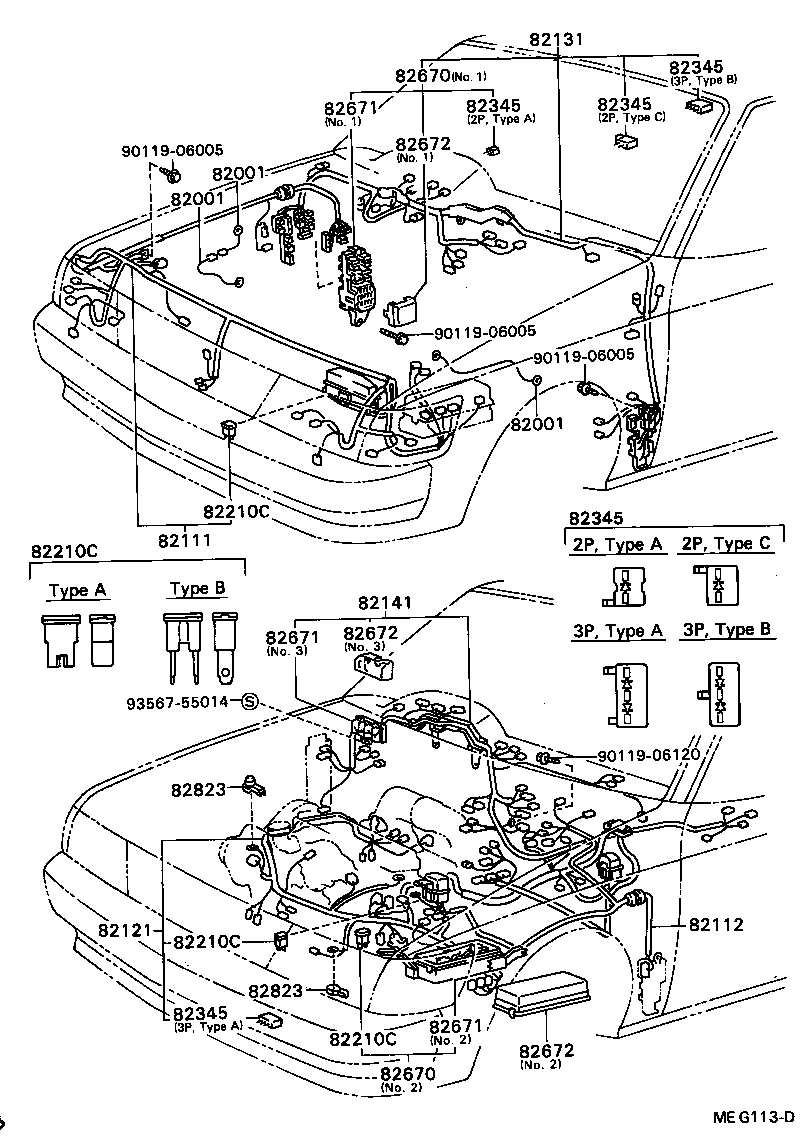

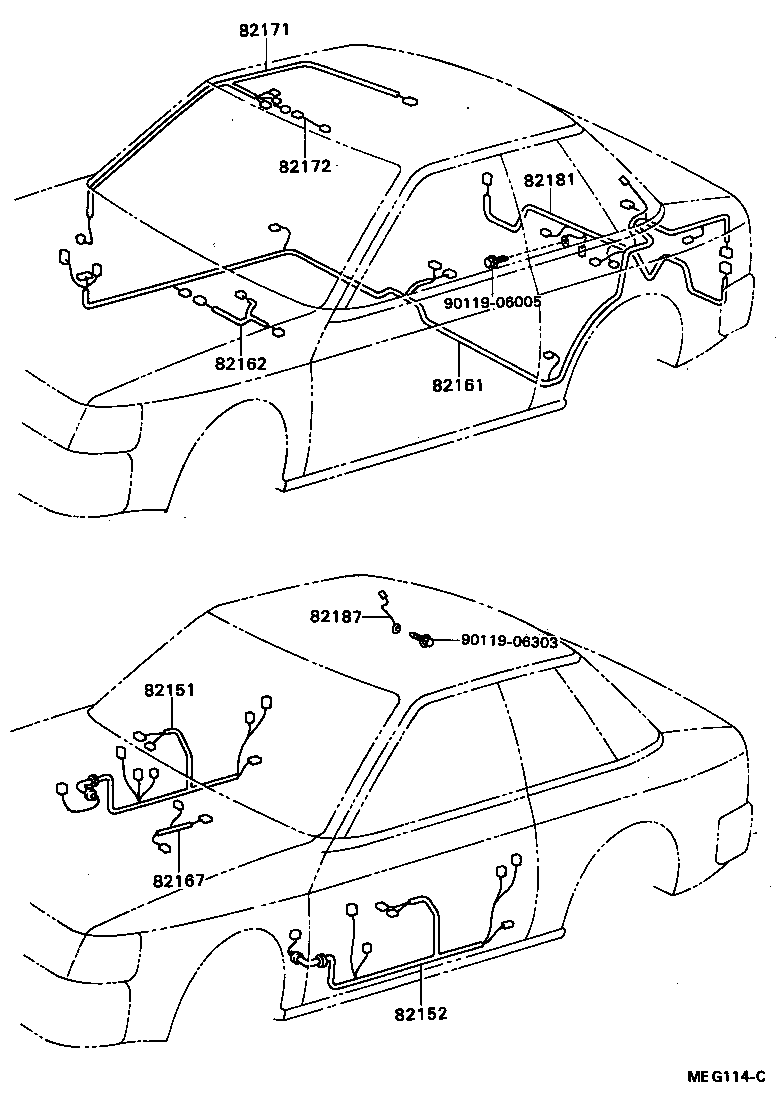

Figure MEG112E MEG112E 1985-08 → — Figure MEG113D MEG113D 1985-08 → — Figure MEG114C MEG114C 1985-08 → — Figure MEG106B MEG106B 1985-08 → — Figure MEH267C MEH267C 1985-08 → — Figure MEG107B MEG107B 1985-08 → — Figure MEG382 MEG382 1985-08 → — Figure MEG383 MEG383 1985-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82345 Diode
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82672 Cover, Junktion Block
82823 Cap, Terminal, NO.1
82951A Bracket, Terminal

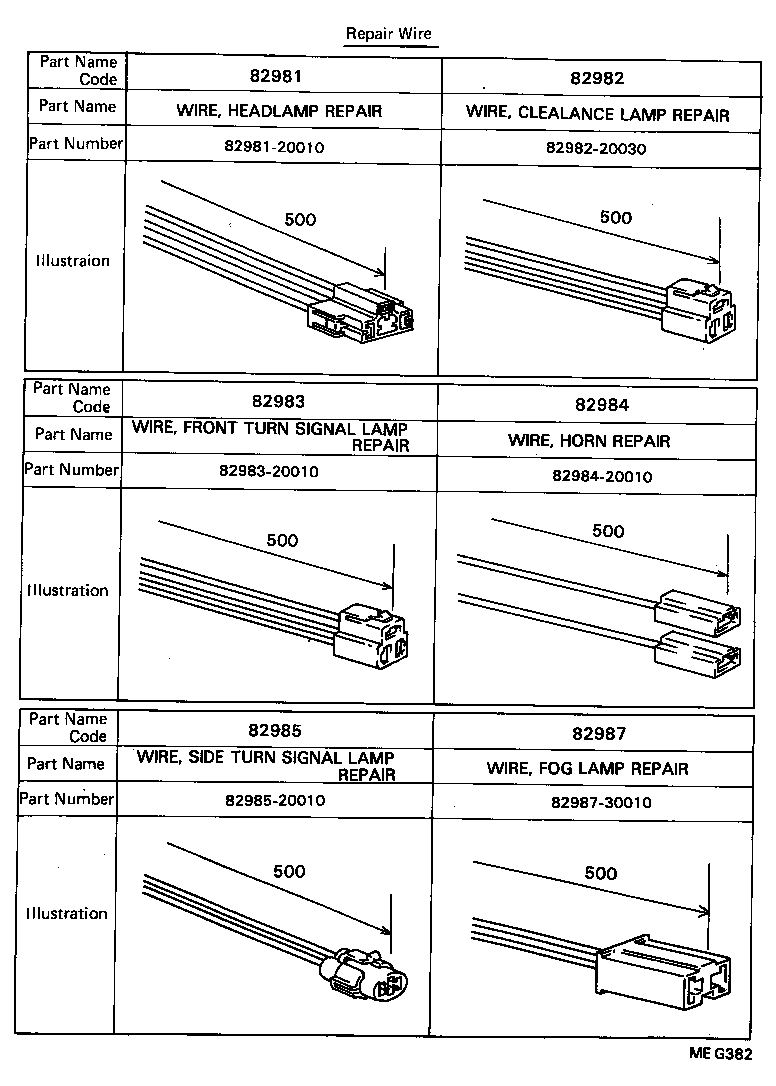

82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
