Toyota Corona FF Coupe

1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 253110 · Japan

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

27 part groups · 3 illustrations

Illustrations

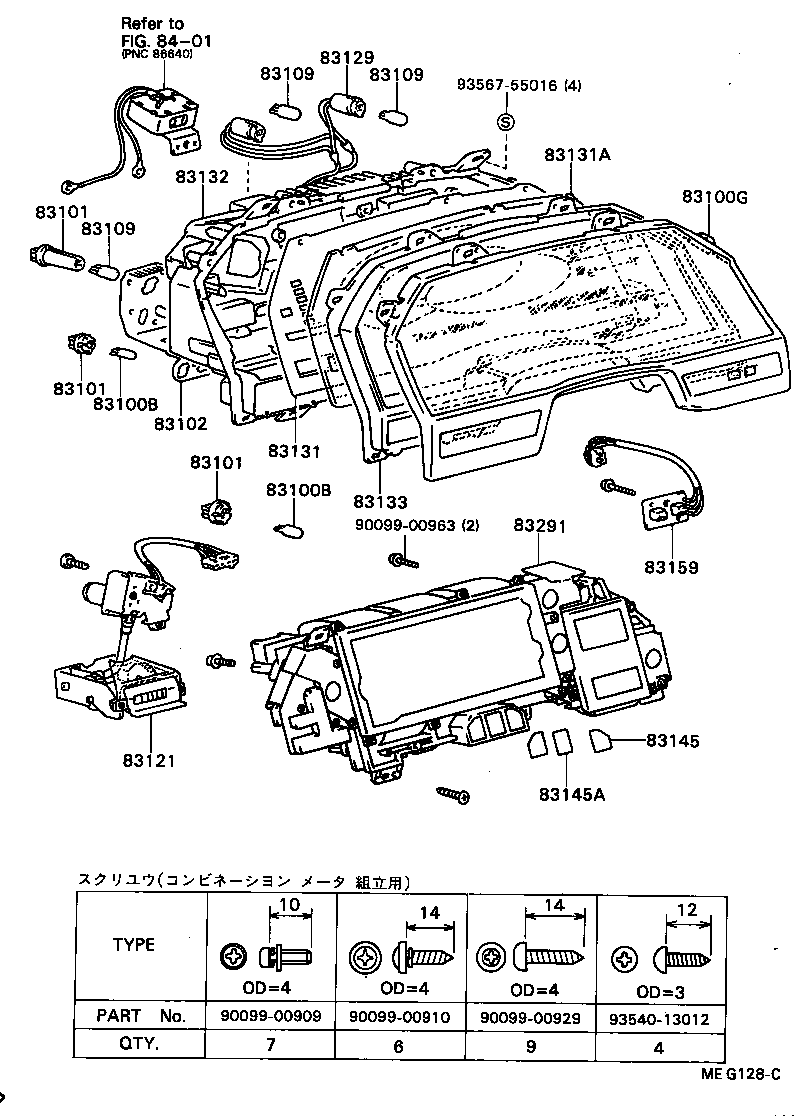

Figure MEJ248B MEJ248B 1985-08 → — Figure MEG128C MEG128C 1985-08 → — Figure MEG129B MEG129B 1985-08 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83119 Bulb, Combination Meter, NO.3
83121 Counter, Total
83128 Knob, Trip Counter
83129 Wire, Meter
83131 Dial, Meter, NO.1
83131A Dial, Meter, NO.2
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83159 Switch, Meter, NO.1
83189 Bracket, Meter
83270 Tachometer Assy, Engine
83291 Computer, Combination Meter
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83510 Gage Assy, Oil Pressure Receiver
83630 Voltmeter Assy
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
