Toyota Corona FF Coupe
1985-08 → 1987-08 · chassis AT160,ST16# · catalogue 253110 · Japan
Discontinued model
Data version 1987-12
Heating & Air Conditioning - Control & Air Duct
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

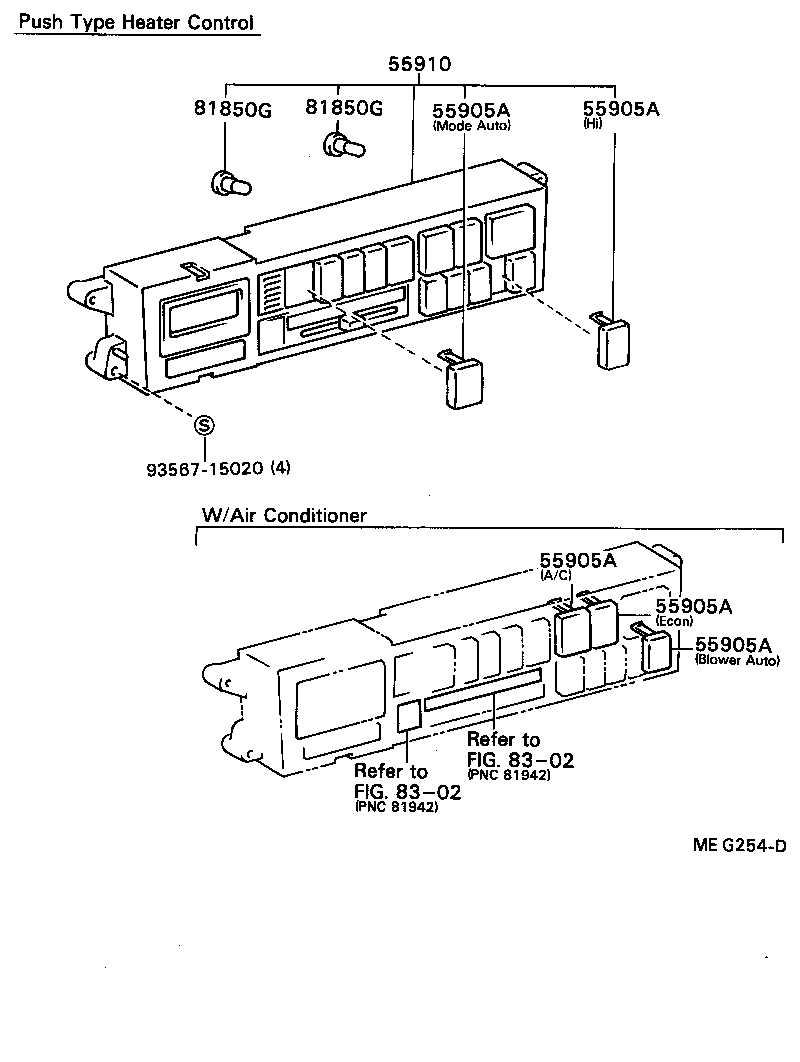

| 55905A | Knob, Heater Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 81850G | Lamp Assy, Indicator |

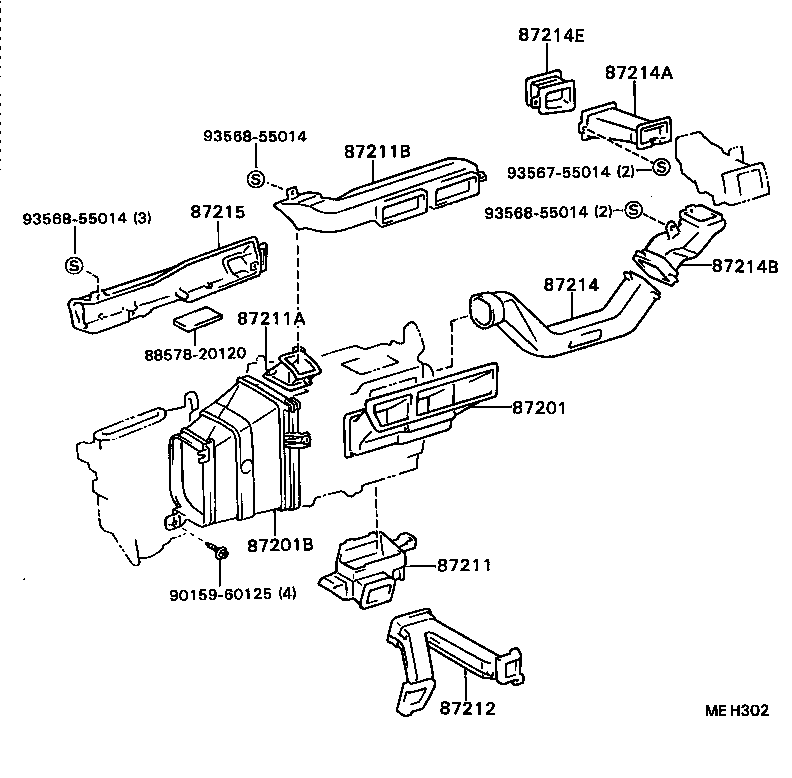

| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87212 | Duct, Air, Rear NO.1 |
| 87214 | Duct, Air, Side NO.1 RH |
| 87214A | Duct, Air, Side NO.2 RH |
| 87214B | Duct, Air, Side NO.3 RH |
| 87214E | Boot, Side Ventilator Duct, RH |
| 87215 | Duct, Air, Side NO.1 LH |
| 87284 | Resistor Sub-assy, Variable |

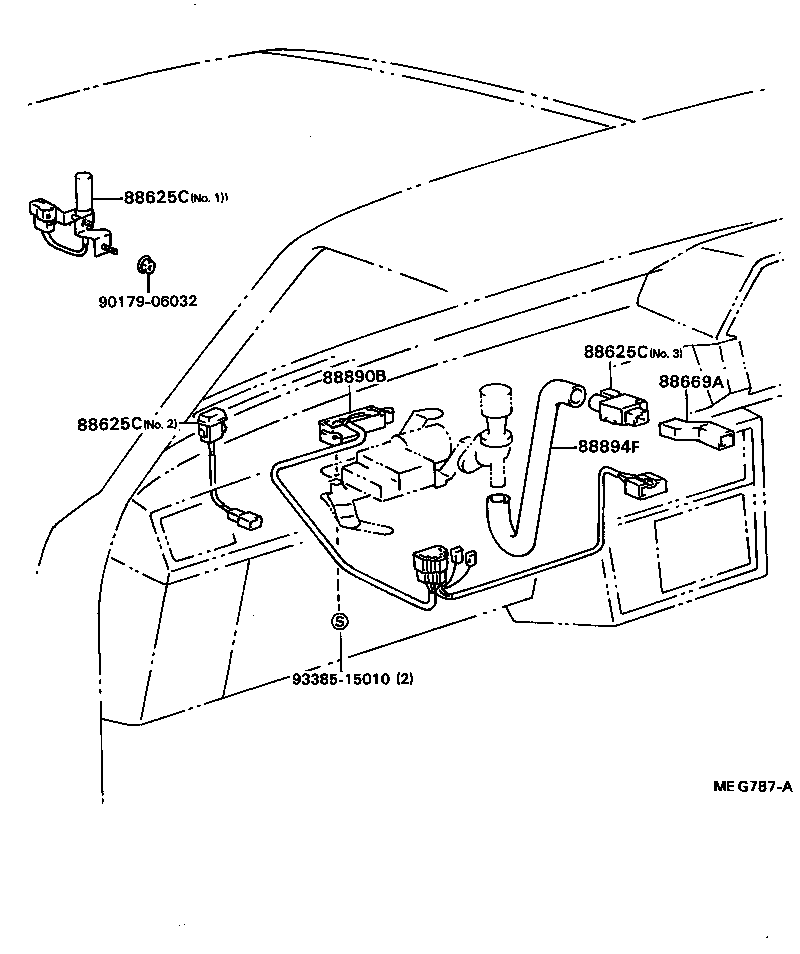

| 88605A | Harness Sub-assy, Cooler Wiring |
| 88610C | Switch Assy, Cooler Control |
| 88625C | Thermistor, Cooler |
| 88669A | Hose (FOR COOLER THERMISTOR) |
| 88890B | Switch Assy, Thermostat |
| 88894F | Hose, Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
