Toyota Corona FF Coupe

1987-08 → 1989-08 · chassis ST16# · catalogue 253120 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

23 part groups · 4 illustrations

Illustrations

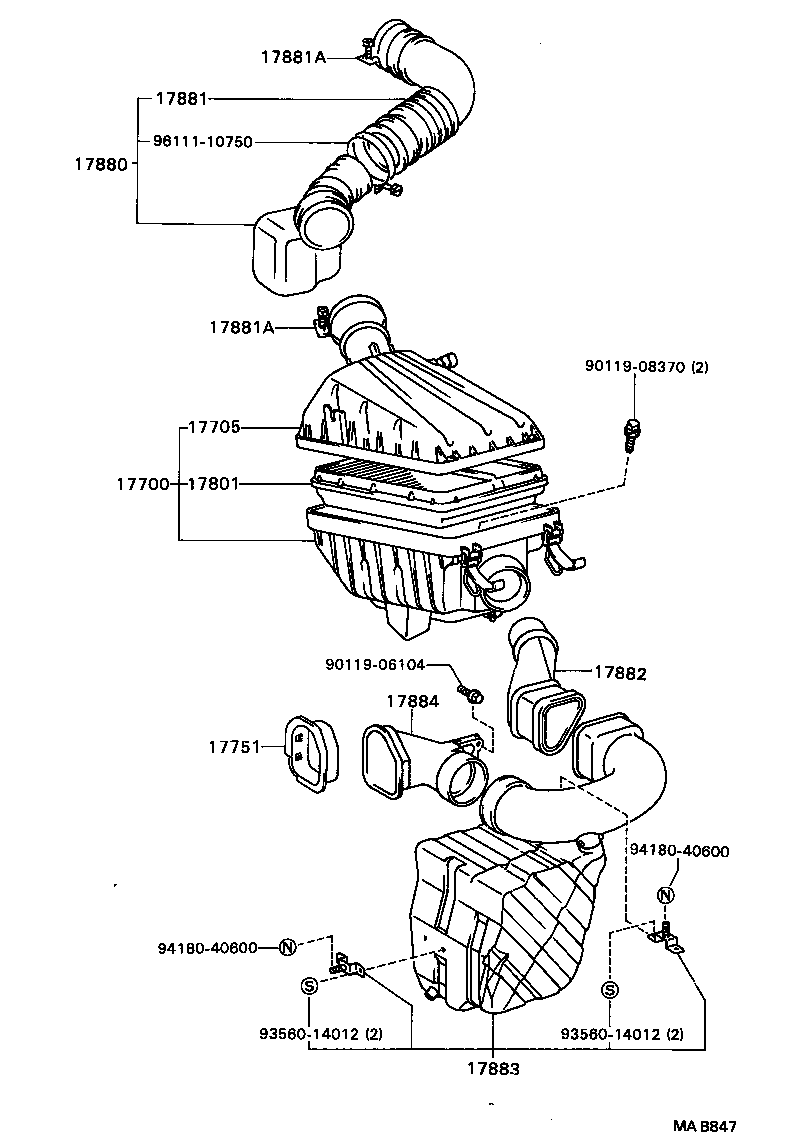

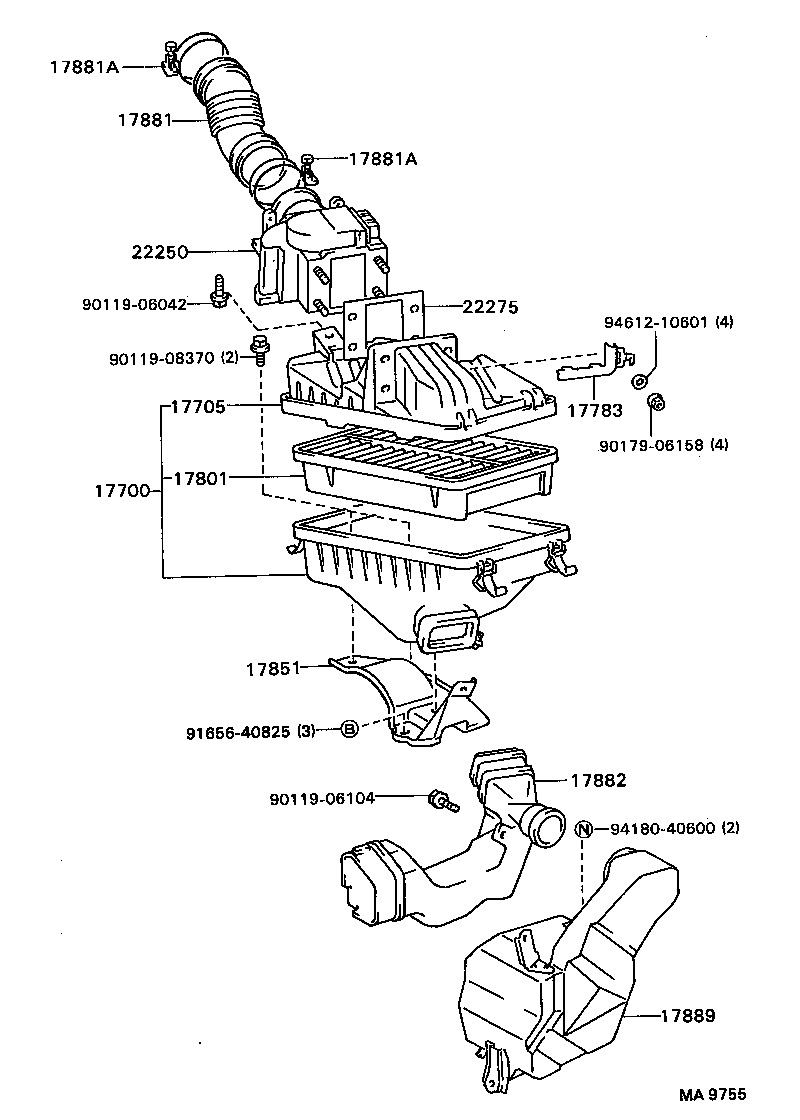

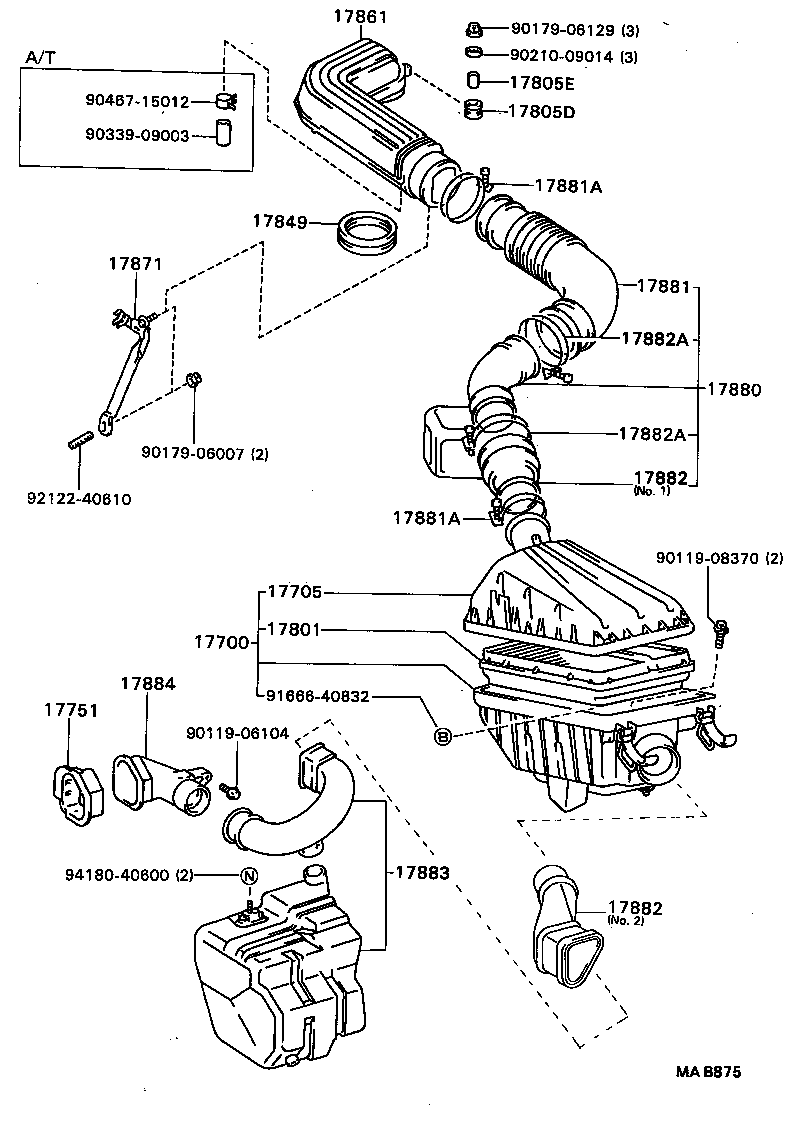

Figure MA9848 MA9848 1987-08 → 1988-05 Figure MA9755 MA9755 1987-08 → — Figure MAB875 MAB875 1988-05 → — Figure MAB847 MAB847 1987-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17849 Gasket, Intake Air Connector
17851 Bracket, Air Cleaner Support
17861 Connector, Intake Air
17871 Stay, Air Connector
17875 Pipe, Intake Air Connector
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
17889 Box, Air Cleaner Hose, NO.2
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
