Toyota Corona FF Coupe

1987-08 → 1989-08 · chassis ST16# · catalogue 253120 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

7 part groups · 2 illustrations

Illustrations

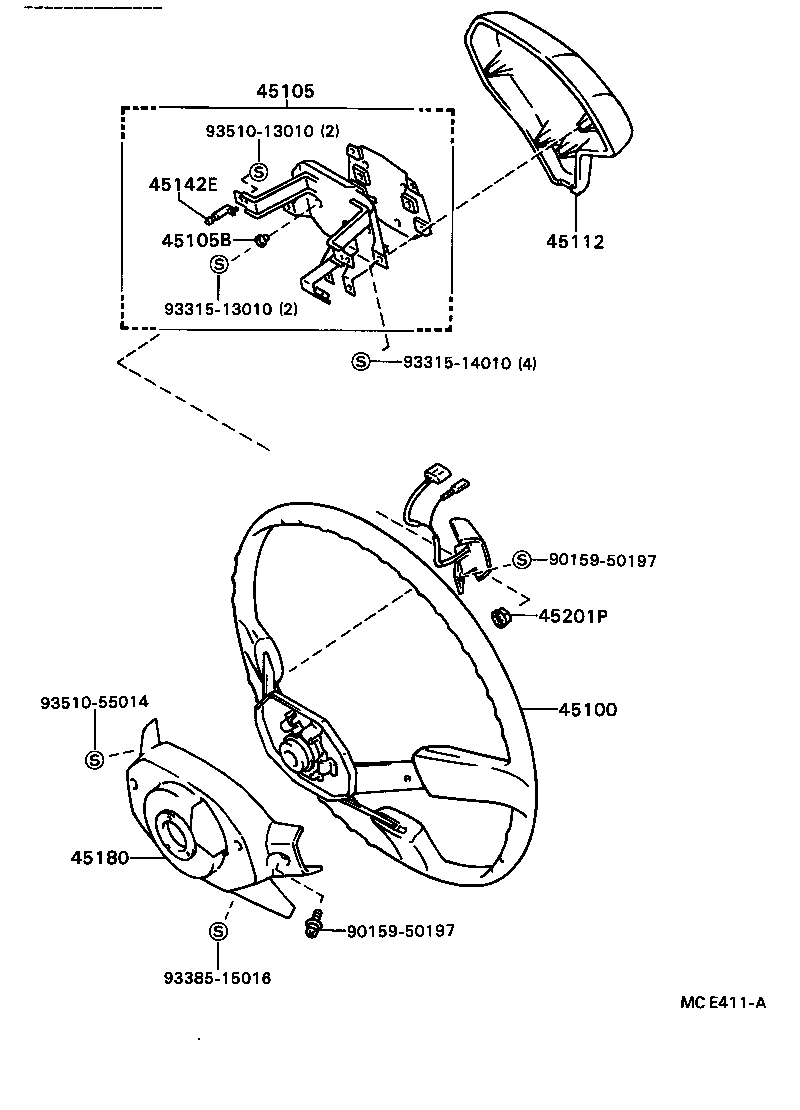

Figure MCE410A MCE410A 1987-08 → — Figure MCE411A MCE411A 1987-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45142E Piece, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
