Toyota Corona FF Coupe

1987-08 → 1989-08 · chassis ST16# · catalogue 253120 · Japan

Discontinued model Data version 1990-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

16 part groups · 3 illustrations

Illustrations

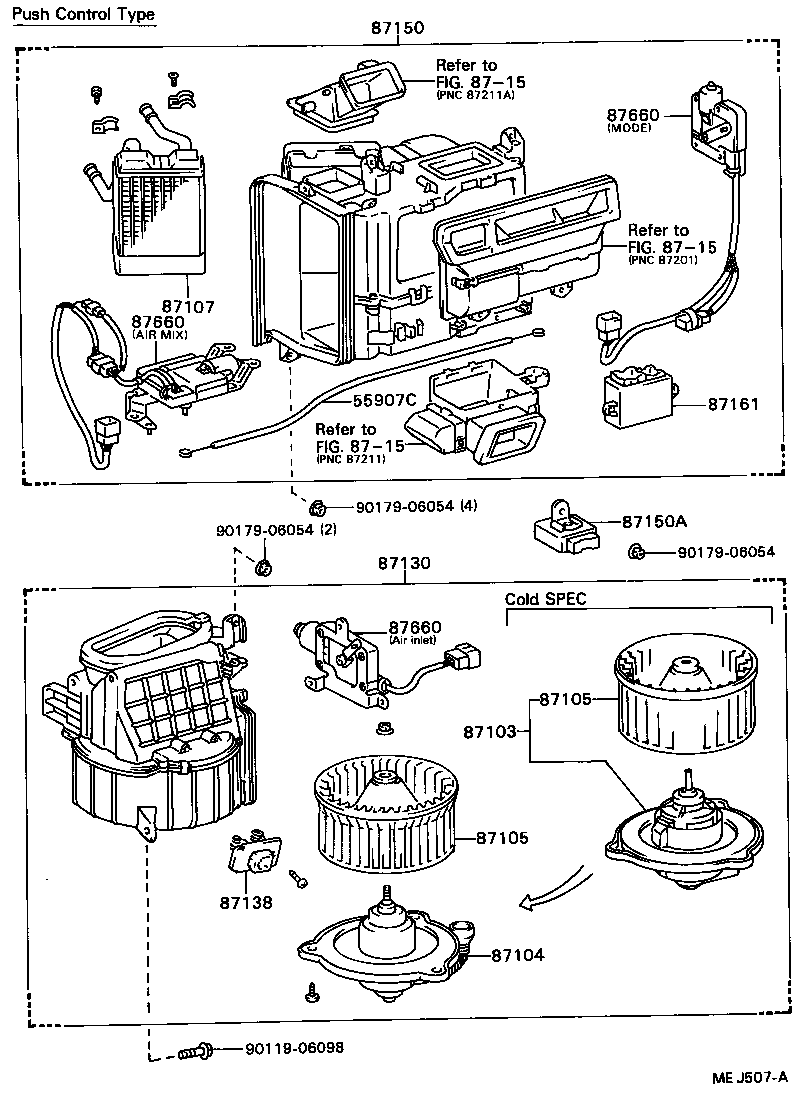

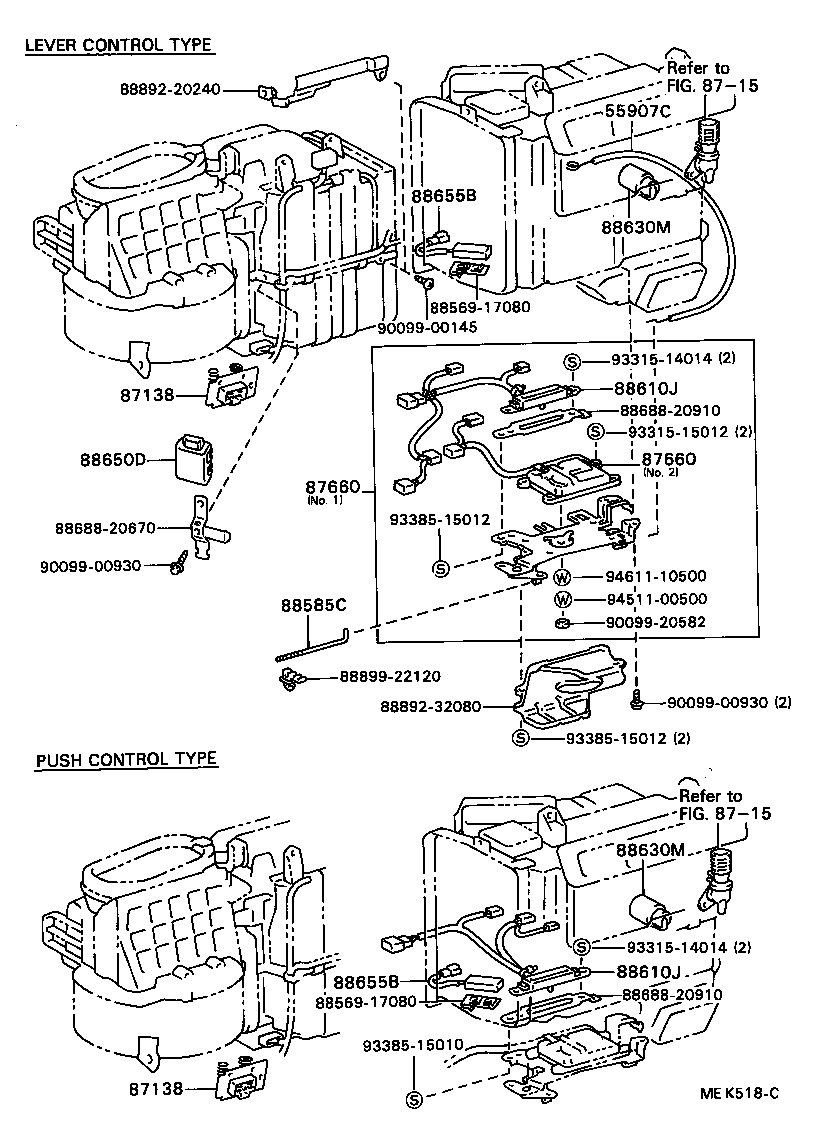

Figure MEJ506A MEJ506A 1987-08 → — Figure MEJ507A MEJ507A 1987-08 → — Figure MEK518C MEK518C 1987-08 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87150A Relay, Heater Radiator
87161 Amplifier, Heater Servo Motor
87660 Servo Assy, Air Conditioner
88585C Shaft
88610J Switch Assy, Control
88630M Relay Assy, Cooler
88650D Amplifier Assy
88655B Switch, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
