Toyota Corona Exiv
1989-09 → 1993-09 · chassis ST18# · catalogue 253130 · Japan
Discontinued model
Data version 1994-04

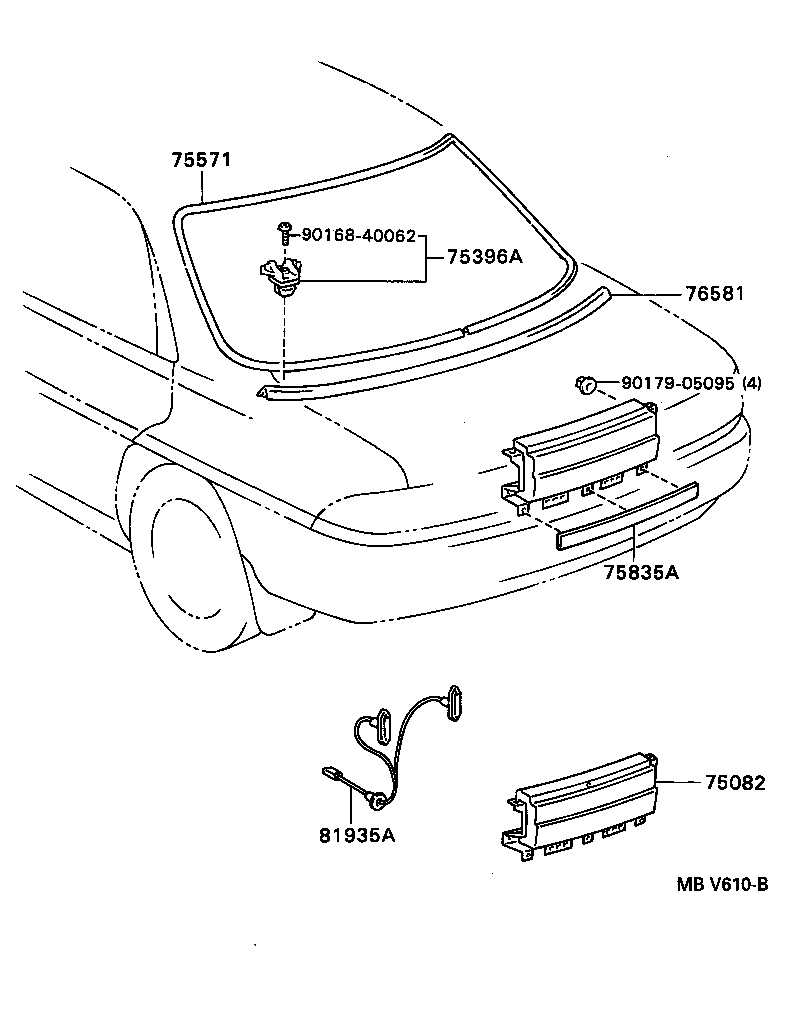

Rear Moulding
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62955E | Retainer, Lower Back Finish Panel |
| 75082 | Panel Sub-assy, Lower Back Finish, Center |
| 75396A | Clip, Outside Moulding, NO.2 |
| 75571 | Moulding, Back Window, Outside Upper |
| 75835A | Moulding, Body Lower Back Finish Panel, NO.2 |
| 76581 | Retainer, Back Window Outside Moulding |
| 81935A | Cord Assy, Rear Mark |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
