Toyota Corona Exiv

1989-09 → 1993-09 · chassis ST18# · catalogue 253130 · Japan

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

10 part groups · 2 illustrations

Illustrations

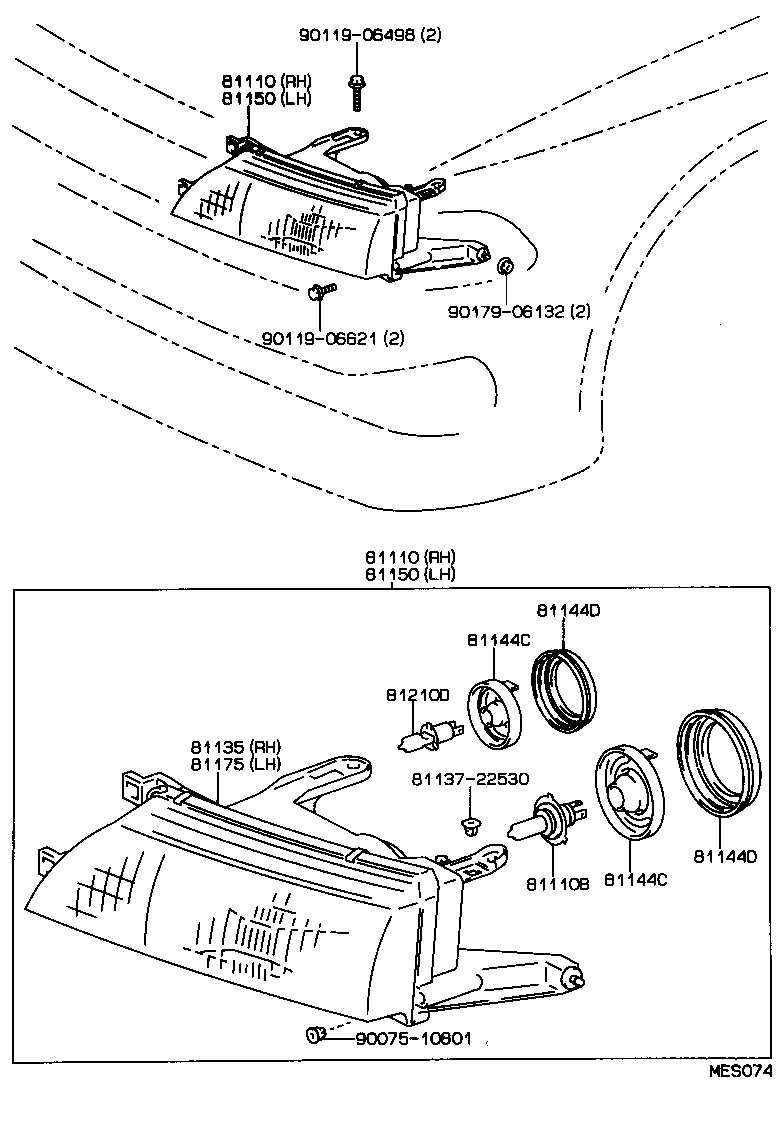

Figure MEN813B MEN813B 1989-09 → 1991-08 Figure MES074 MES074 1991-08 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81144D Cap, Headlamp Locking
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
