Toyota Corona Exiv

1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

28 part groups · 5 illustrations

Illustrations

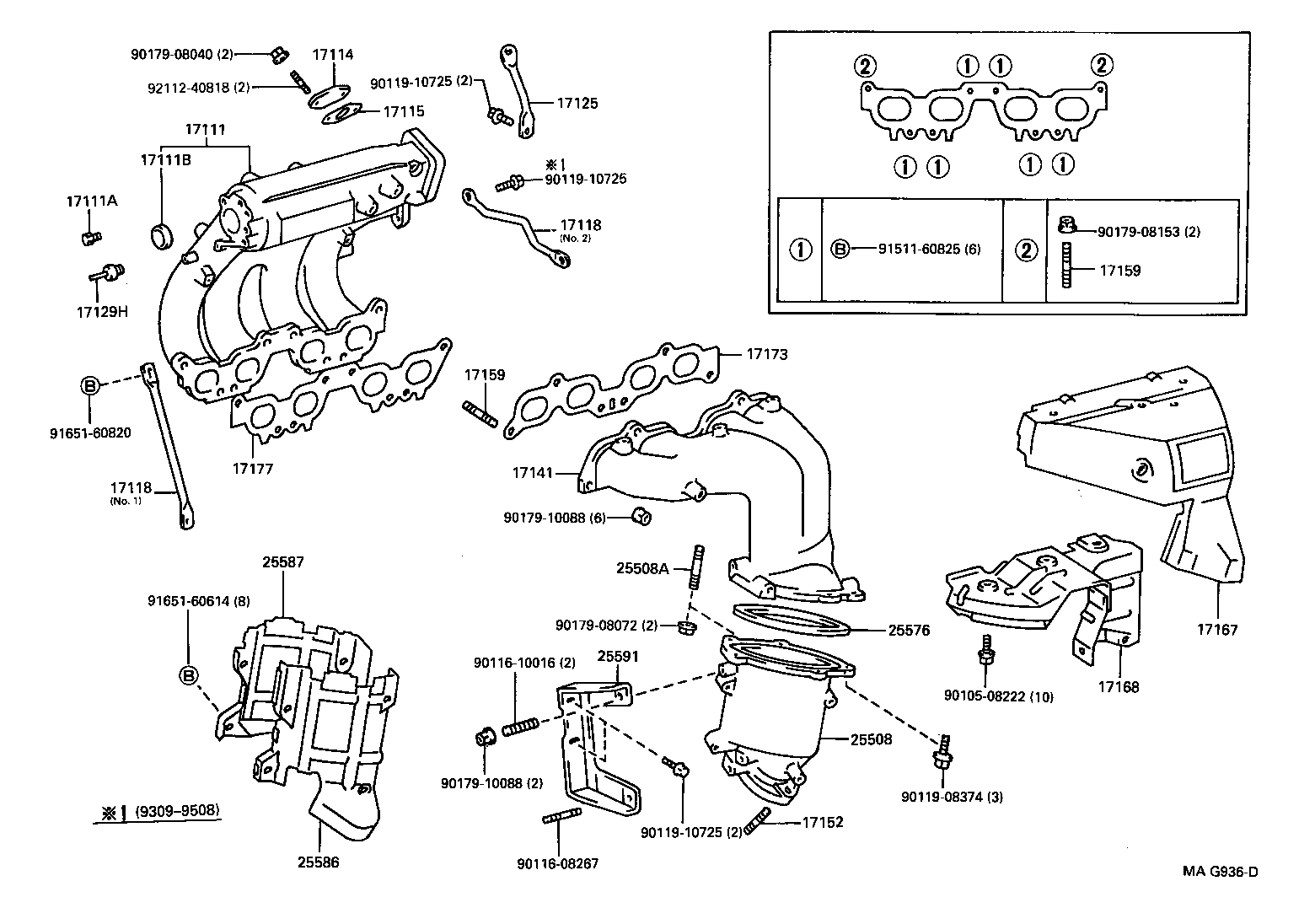

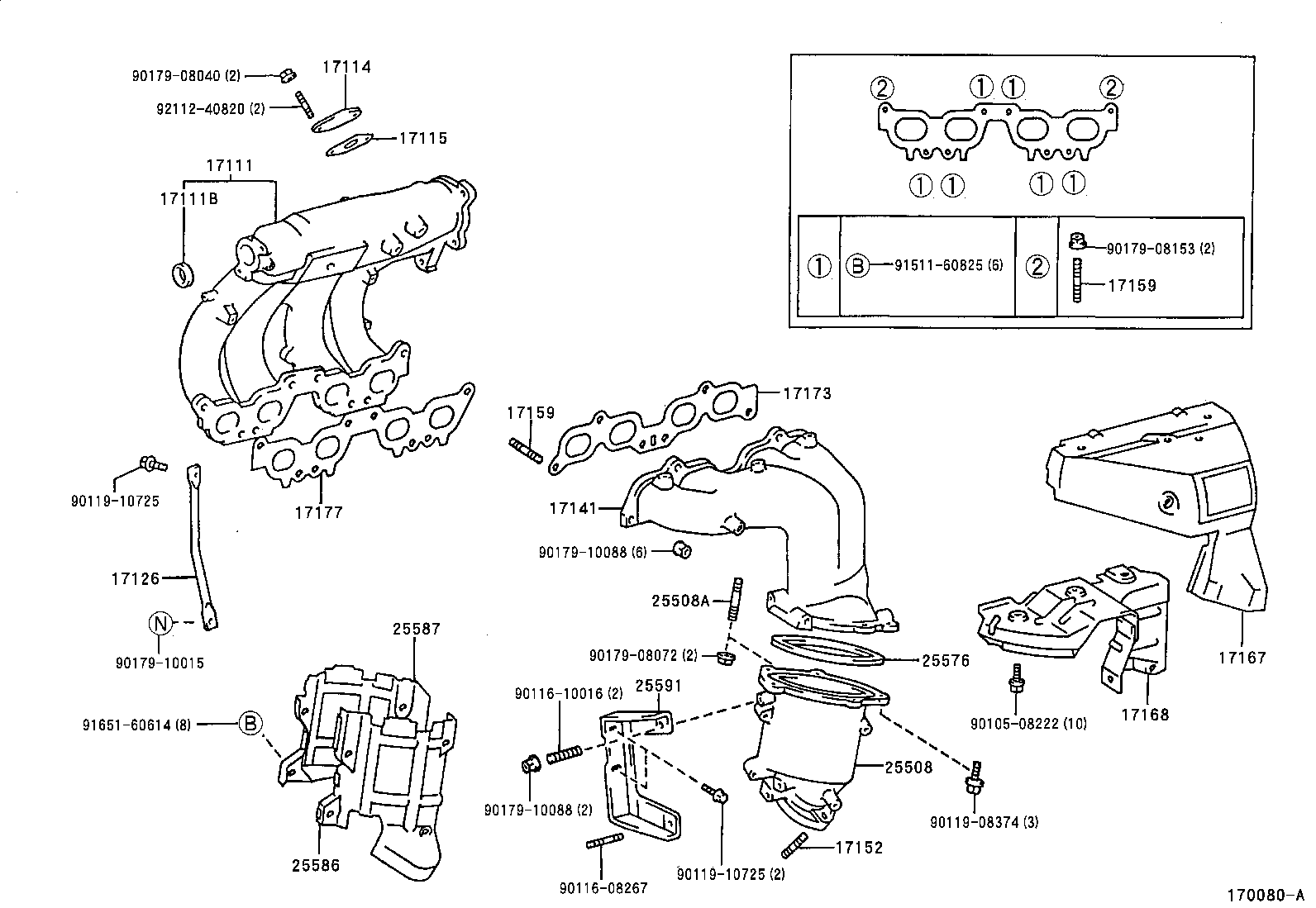

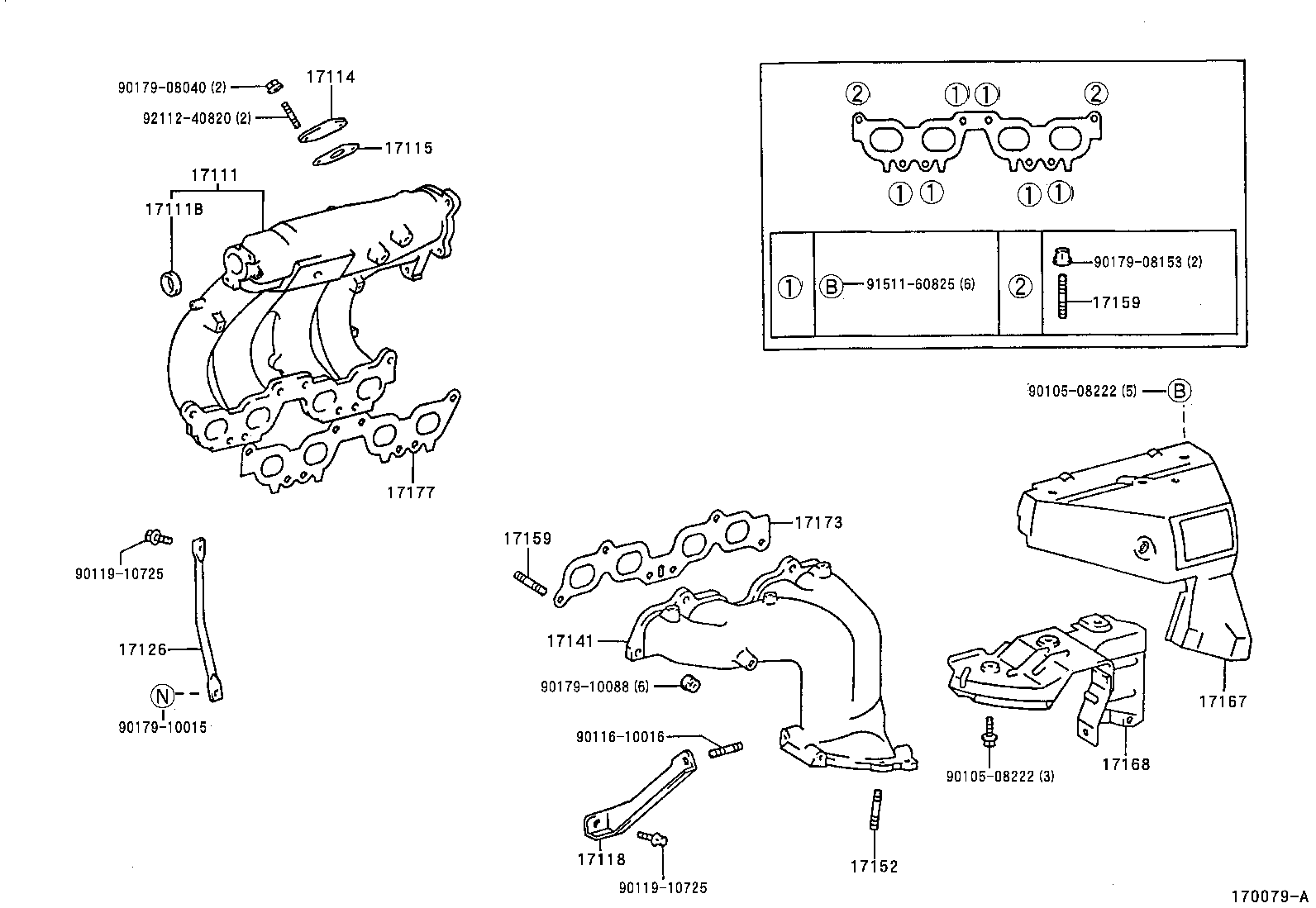

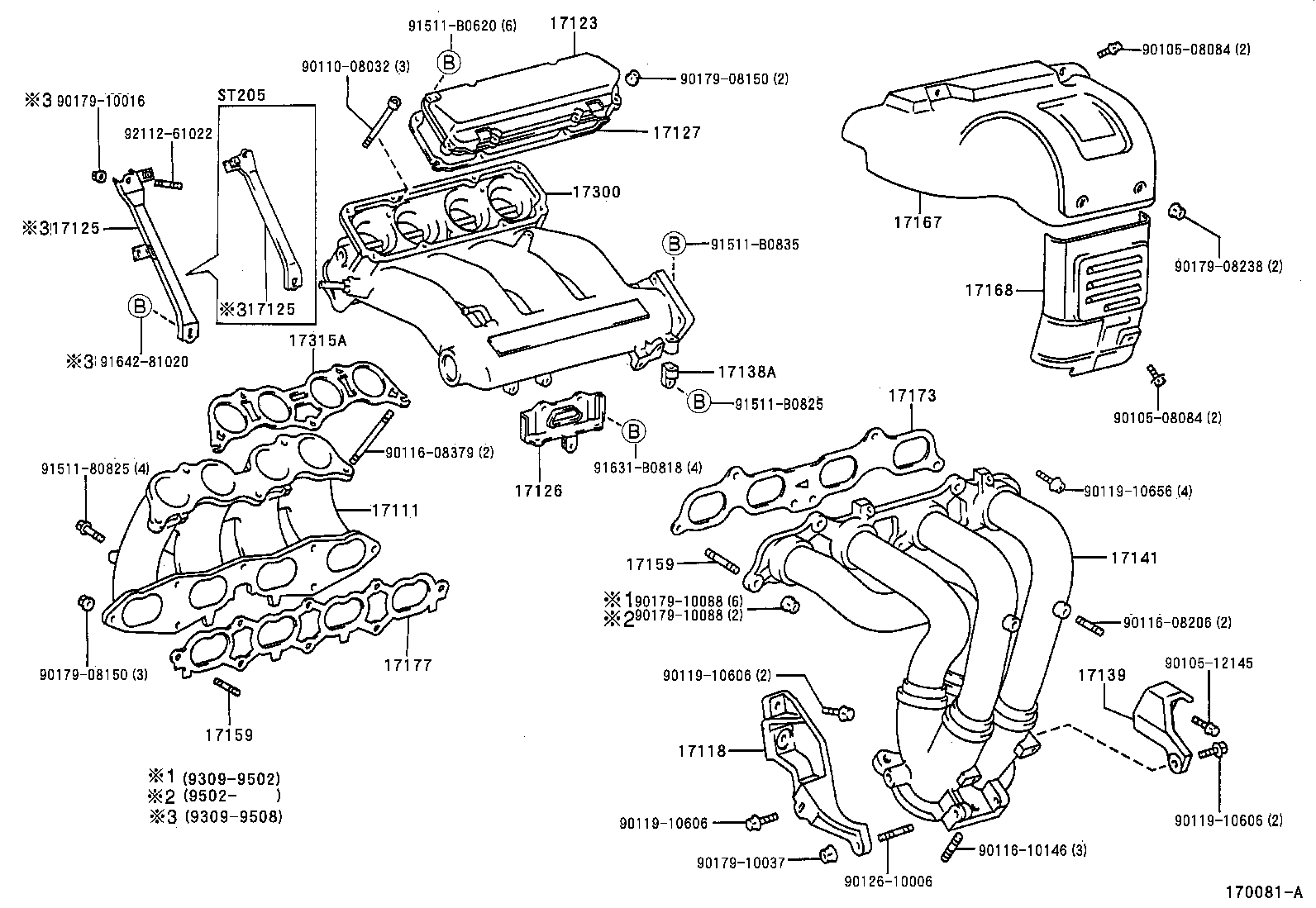

Figure 170078 170078 1993-09 → 1996-06 Figure 170079A 170079A 1996-06 → — Figure MAG936D MAG936D 1993-09 → 1996-06 Figure 170080A 170080A 1996-06 → — Figure 170081A 170081A 1993-09 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17114 Plate, Intake Manifold Hole Cover
17115 Gasket, Intake Manifold Hole Cover
17118 Stay, Manifold
17123 Cover, Surge Tank
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17127 Gasket, Surge Tank Cover
17129H Union, NO.4
17138A Stay, Intake Pipe
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17300 Valve Assy, Intake Air Control
17315A Gasket, Intake Air Control Valve
25508 Converter Sub-assy, Manifold
25508A Bolt, Stud(FOR MANIFOLD CONVERTER)
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
