Toyota Corona Exiv
1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan
Discontinued model
Data version 1998-11

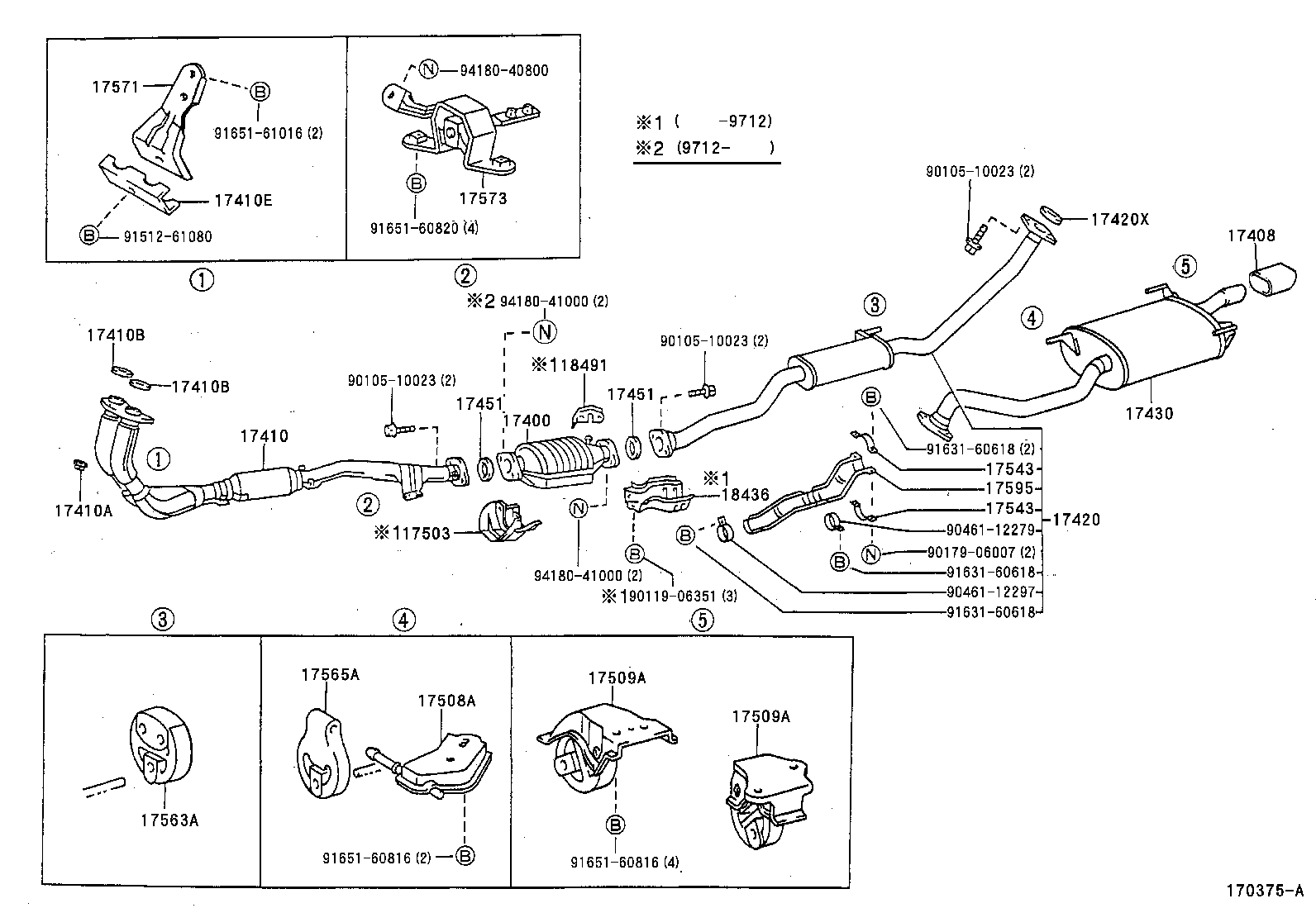

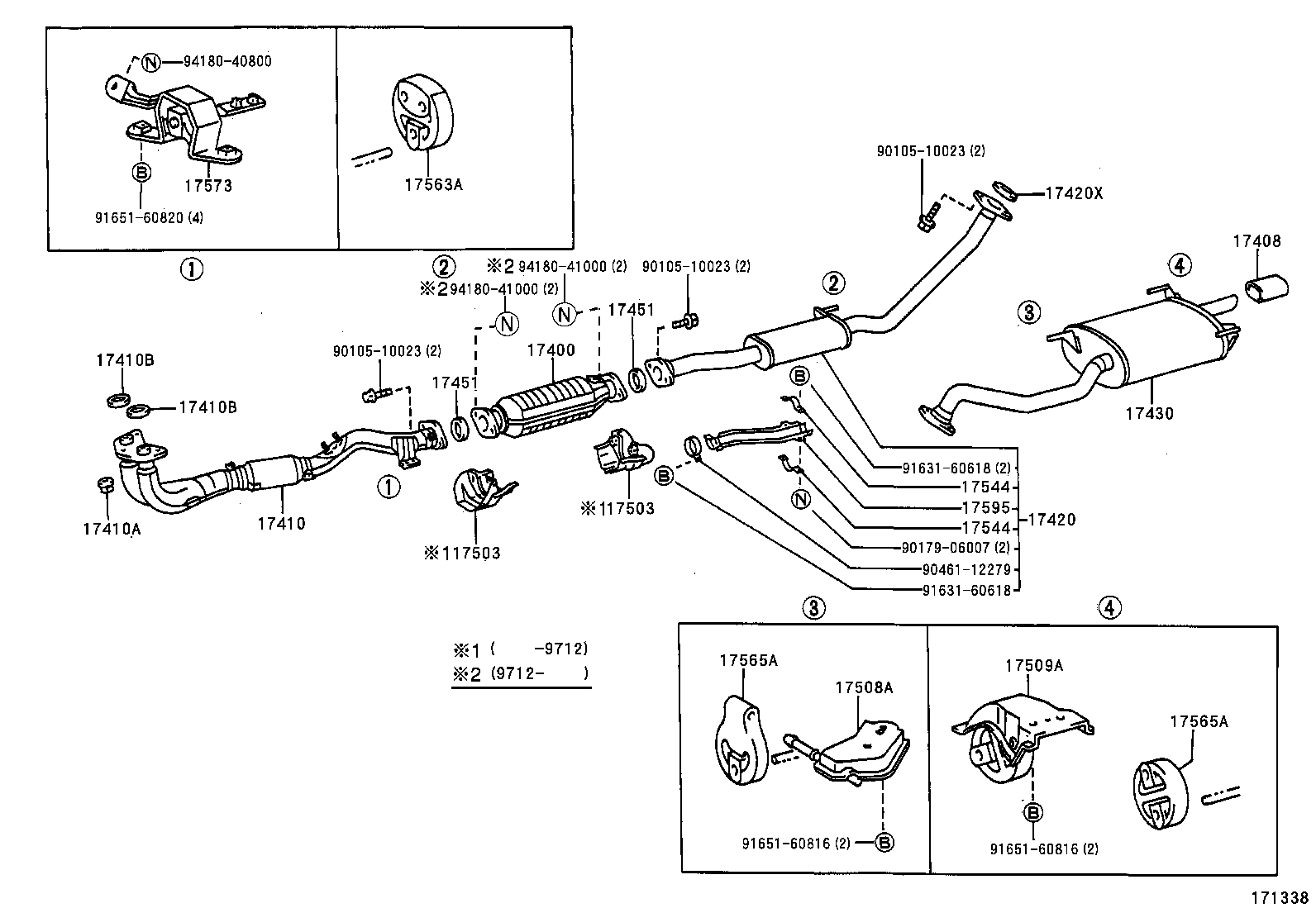

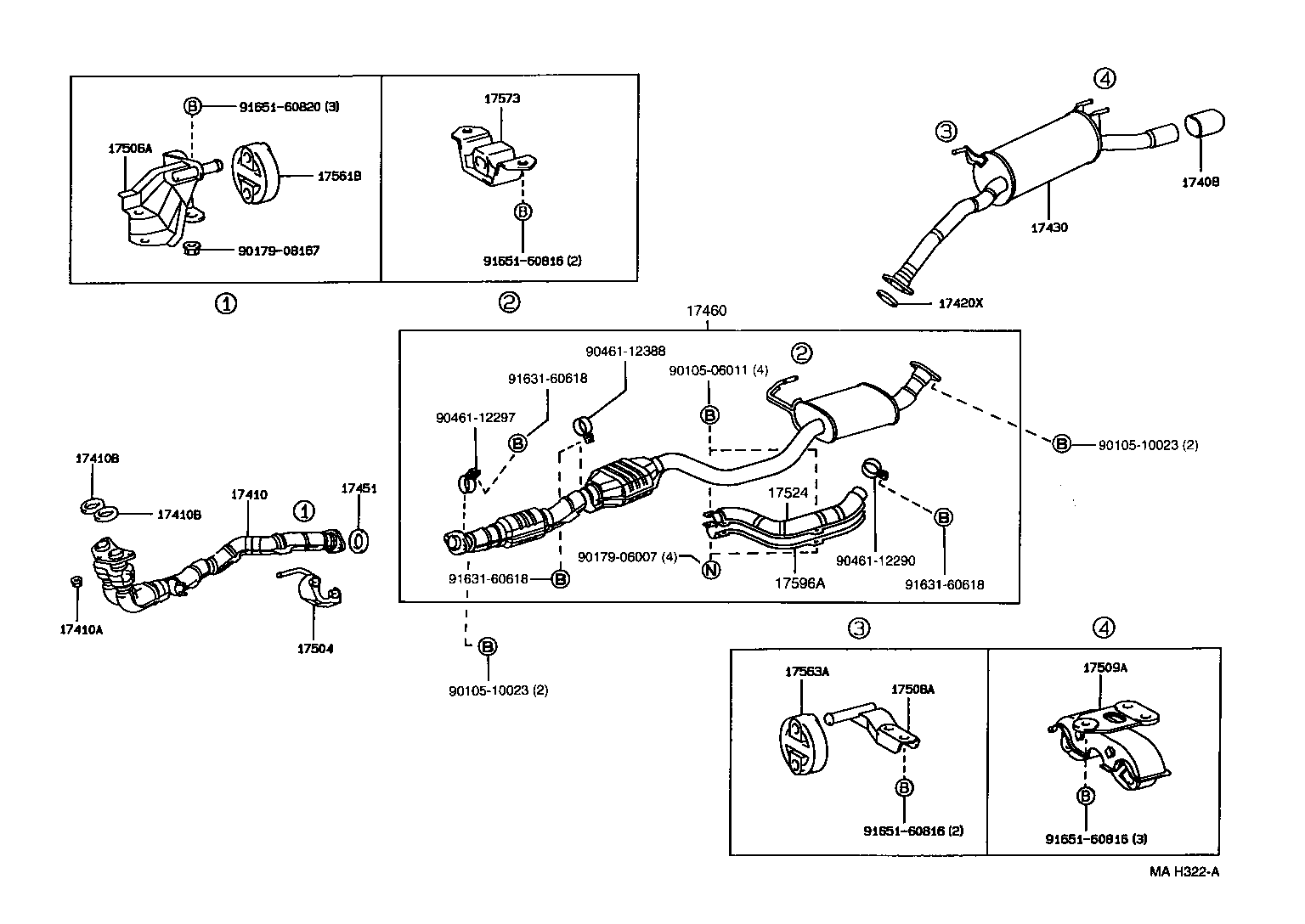

Exhaust Pipe
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17408 | Baffle Sub Assy, Exhaust Tailpipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17460 | Converter Assy, Catalytic W/Pipe |
| 17503 | Bracket Sub-assy, Catalytic Converter, Rear |
| 17504 | Bracket Sub-assy, Catalytic Converter |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17508A | Bracket Sub-assy, Exhaust Pipe NO.3 Support |
| 17509A | Bracket Sub-assy, Exhaust Pipe NO.4 Support |
| 17524 | Protector, Exhaust Pipe, Upper NO.4 |
| 17542 | Stay, Exhaust Pipe Protector, NO.2 |
| 17543 | Stay, Exhaust Pipe Protector, NO.3 |
| 17544 | Stay, Exhaust Pipe Protector, NO.4 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17573 | Bracket, Exhaust Pipe NO.1 Support, Lower |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
| 17596A | Protector, Exhaust Pipe, Lower NO.4 |
| 18436 | Protector, Monolithic Converter, NO.1 |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
