Toyota Corona Exiv

1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 6 illustrations

Illustrations

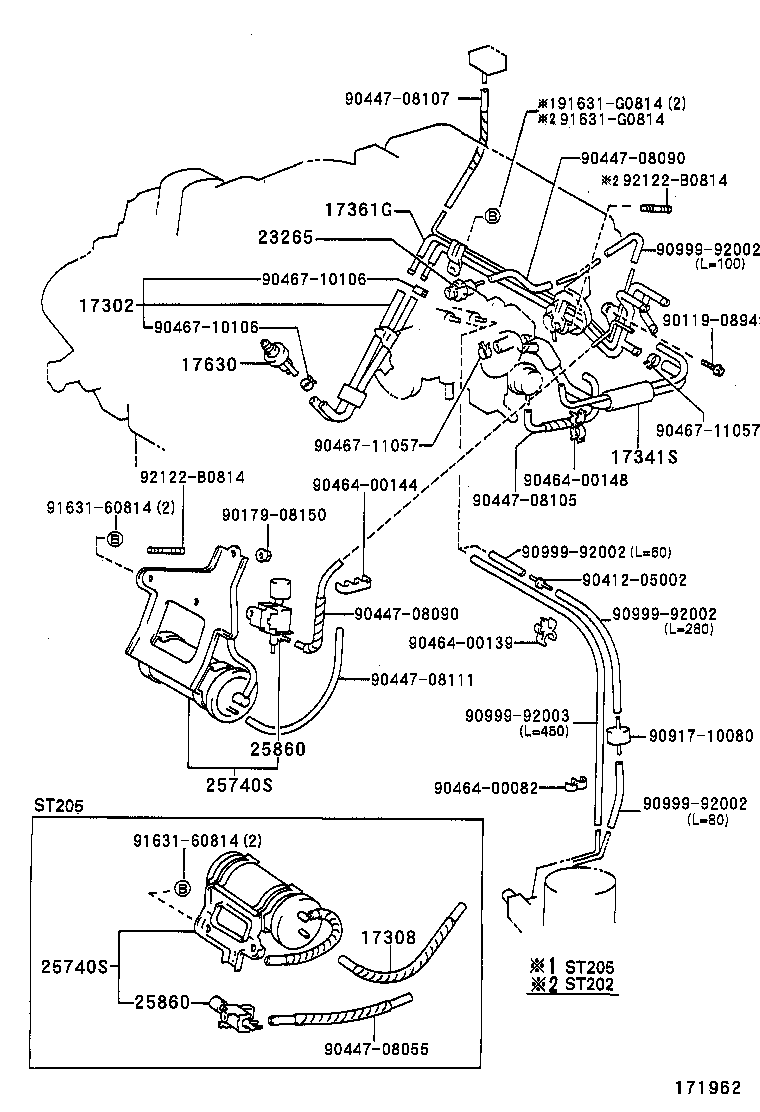

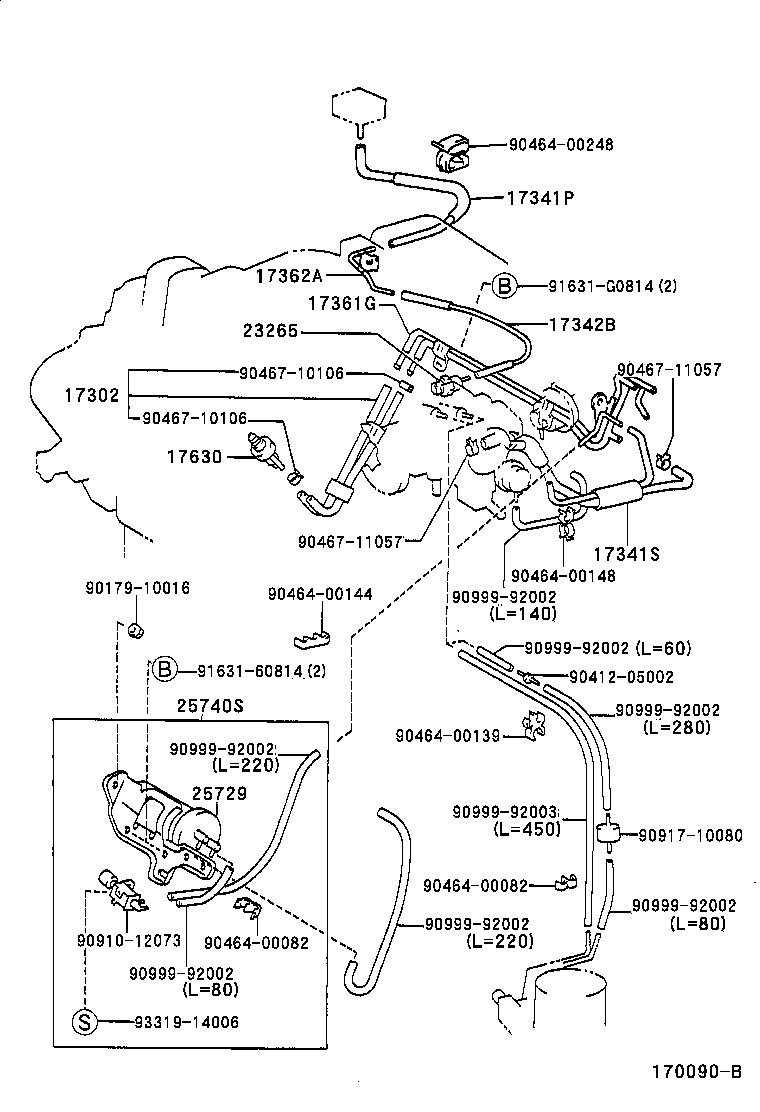

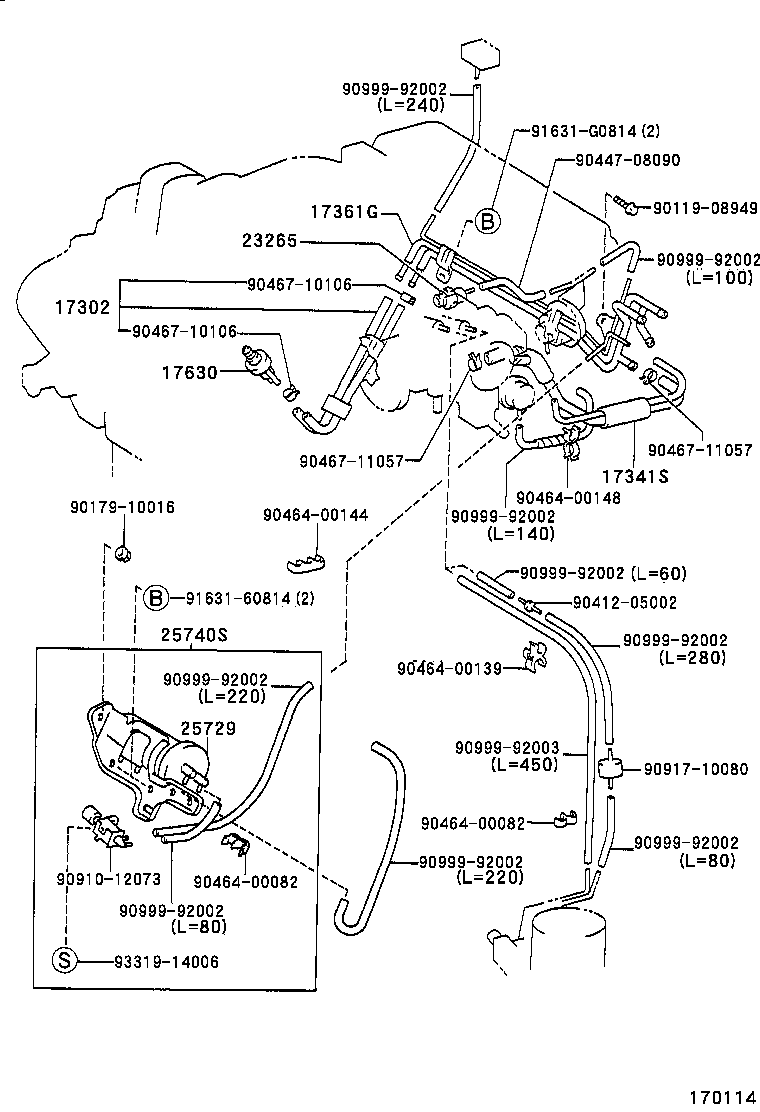

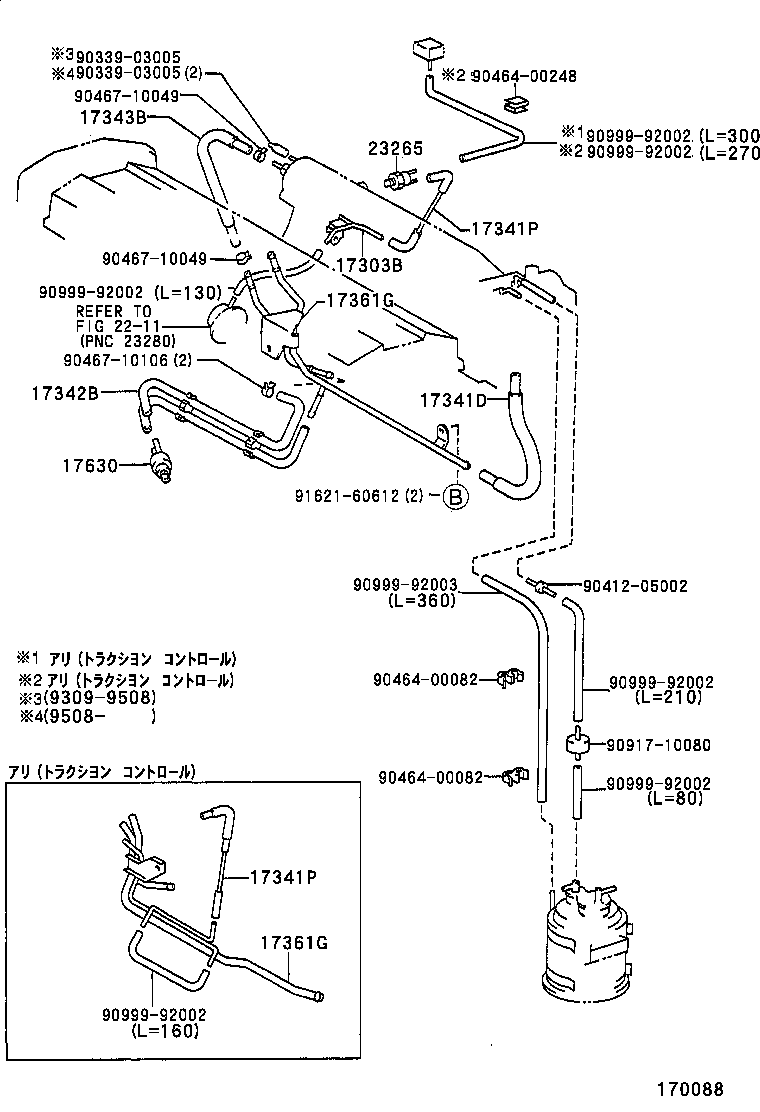

Figure 170020 170020 1993-09 → — Figure 170088 170088 1993-09 → 1996-06 Figure 170089 170089 1996-06 → — Figure 171962 171962 1993-09 → 1995-08 Figure 170114 170114 1995-08 → 1996-06 Figure 170090B 170090B 1996-06 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17341S Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17362A Tube, Air, NO.2
17630 Valve Assy, Air Control
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
25729 Tank, Vacuum Surge W/Bracket
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
