Toyota Corona Exiv

1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 2 illustrations

Illustrations

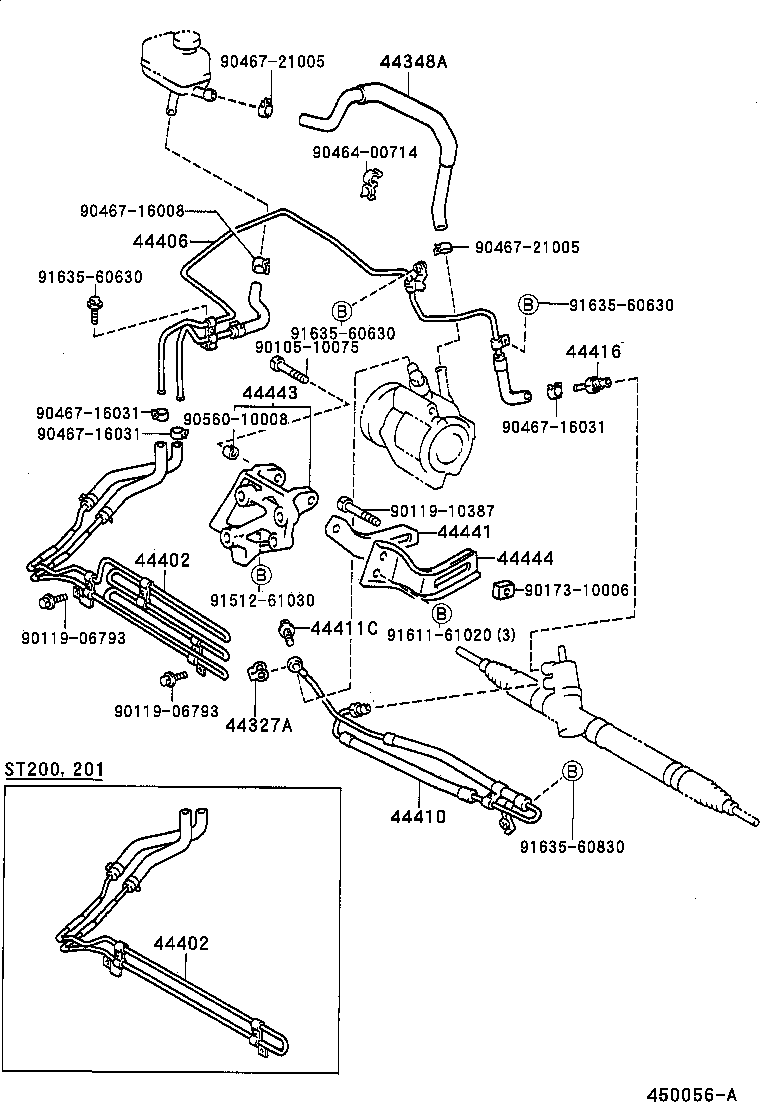

Figure 450055A 450055A 1993-09 → — Figure 450056A 450056A 1993-09 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
