Toyota Corona Exiv
1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan
Discontinued model
Data version 1998-11
Front Door Panel & Glass
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

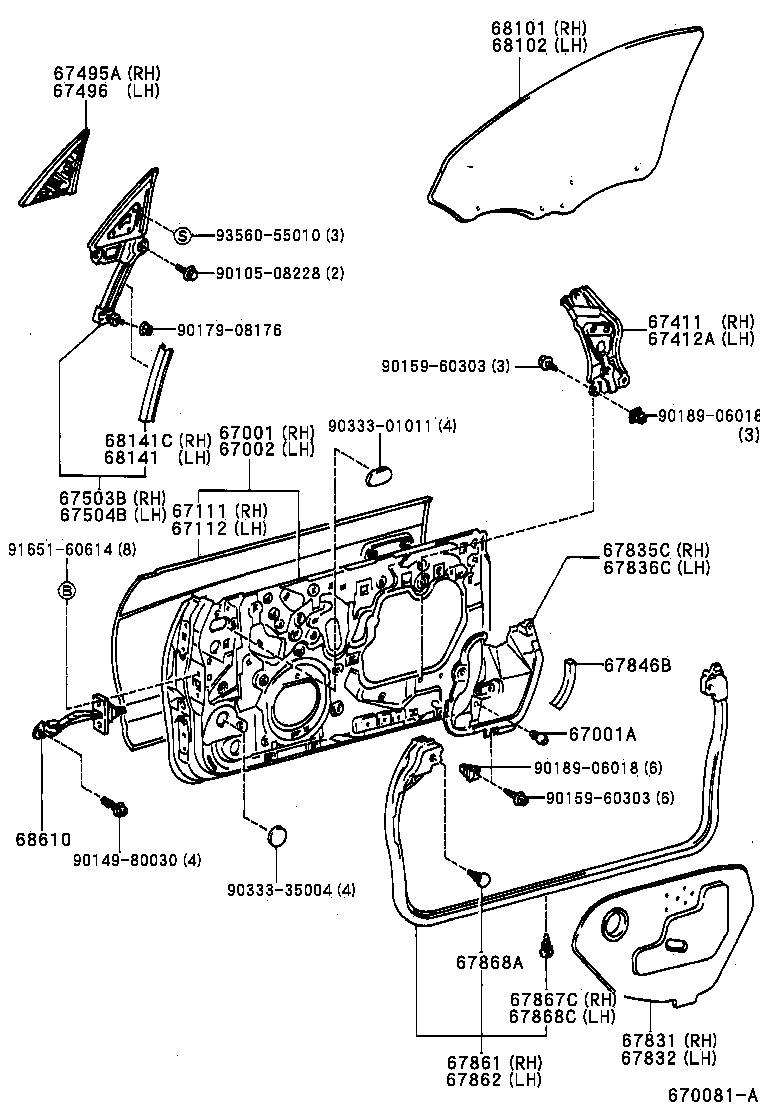

| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67411 | Frame, Front Door Window, Front Upper RH |
| 67412A | Frame, Front Door Window, Front Upper LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67495A | Cover, Front Door Front Lower Frame, Upper RH |
| 67496 | Channel, Canvas Door Weatherstrip Under Hold |
| 67503B | Bracket Sub-assy, Front Door Mirror, RH |
| 67504B | Bracket Sub-assy, Front Door Mirror, LH |

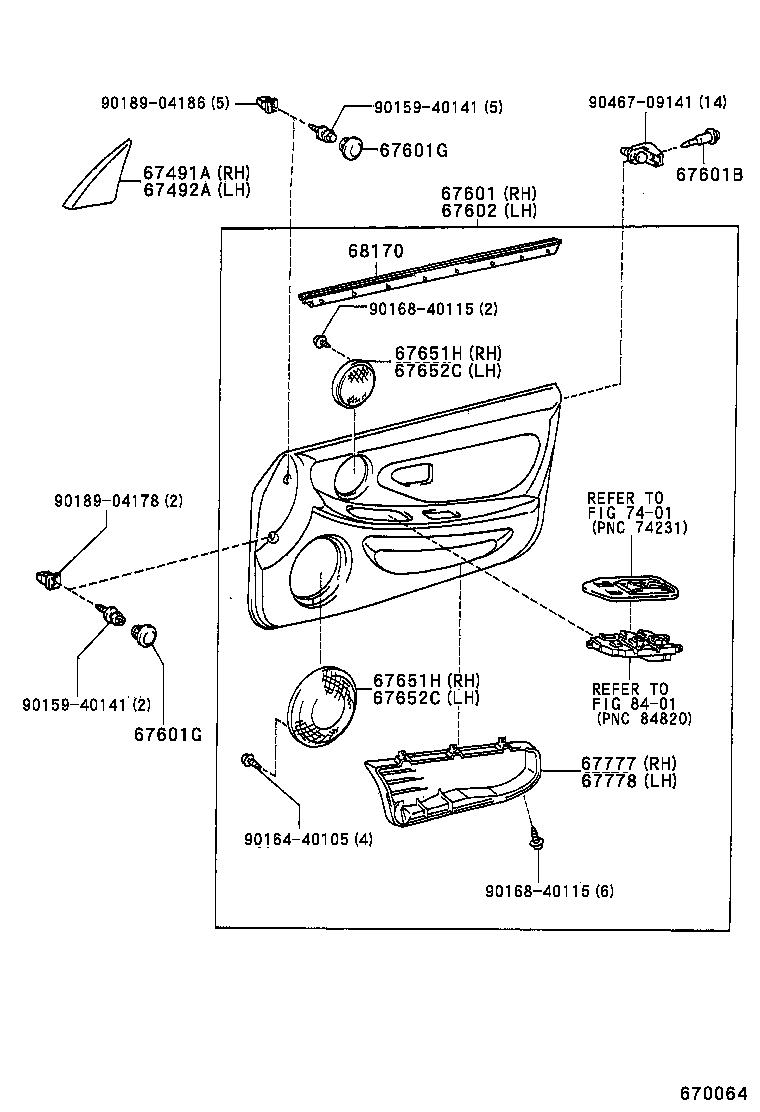

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67601G | Plug, Hole(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67651H | Grille, Speaker Door, RH |
| 67652C | Grille, Speaker Door, LH |
| 67661C | Base, Door Speaker Grille, RH |
| 67662A | Base, Door Speaker Grille, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67835C | Cover, Front Door Service Hole, NO.3 RH |
| 67836C | Cover, Front Door Service Hole, NO.3 LH |
| 67846B | Sub-sheet, Front Door Service Hole |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868A | Clip, Door Glass Weatherstrip(FOR FRONT DOOR) |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68141C | Run, Front Door Glass, RH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68610 | Check Assy, Front Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
