Toyota Corona Exiv

1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

25 part groups · 2 illustrations

Illustrations

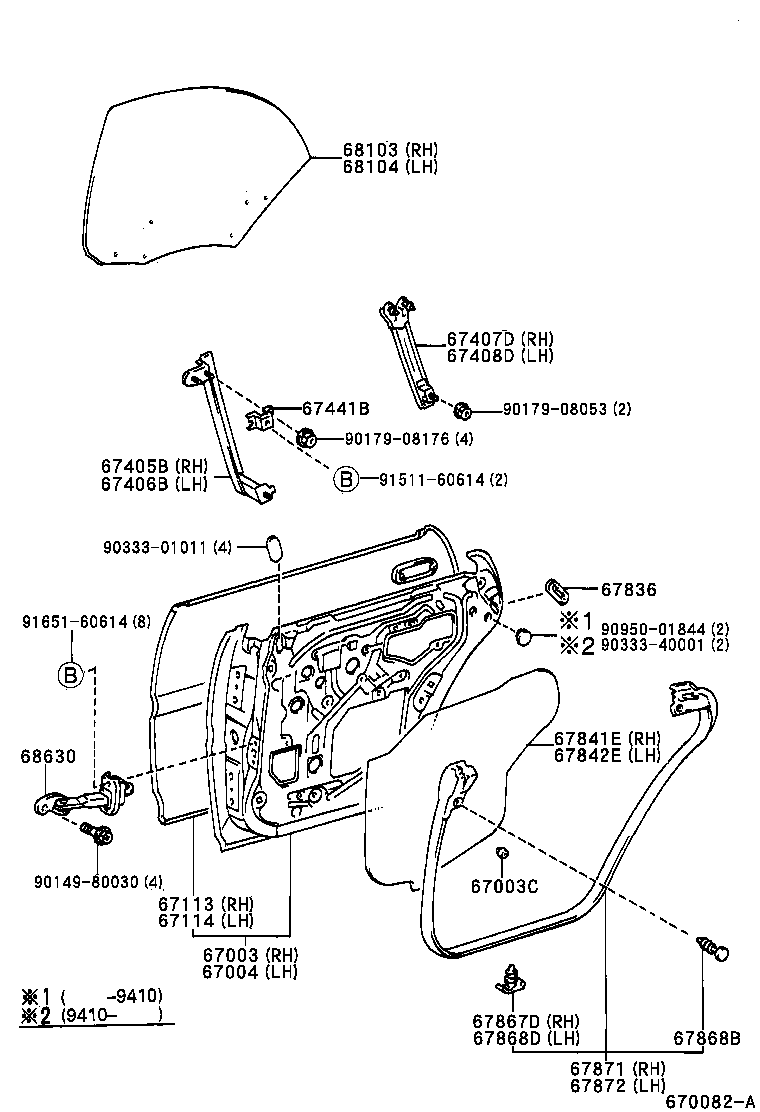

Figure MN2551A MN2551A 1993-09 → — Figure 670082A 670082A 1993-09 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67003C Cushion, Rear Door Panel
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67405B Guide Sub-assy, Rear Door Window, Front RH
67406B Guide Sub-assy, Rear Door Window, Front LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67441B Plate, Rear Door Front Guide, Upper
67603 Board Sub-assy, Rear Door Trim, RH
67603E Clip(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67836 Cover, Rear Door Lock Child Protection, RH
67841E Cover, Rear Door Service Hole, RH
67842E Cover, Rear Door Service Hole, LH
67867D Retainer, Rear Door Weatherstrip, RH
67868B Clip, Door Glass Weatherstrip(FOR REAR DOOR)
67868D Retainer, Rear Door Weatherstrip, LH
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68190 Weatherstrip Assy, Rear Door Glass, Inner
68630 Check Assy, Rear Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
