Toyota Corona Exiv

1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

26 part groups · 4 illustrations

Illustrations

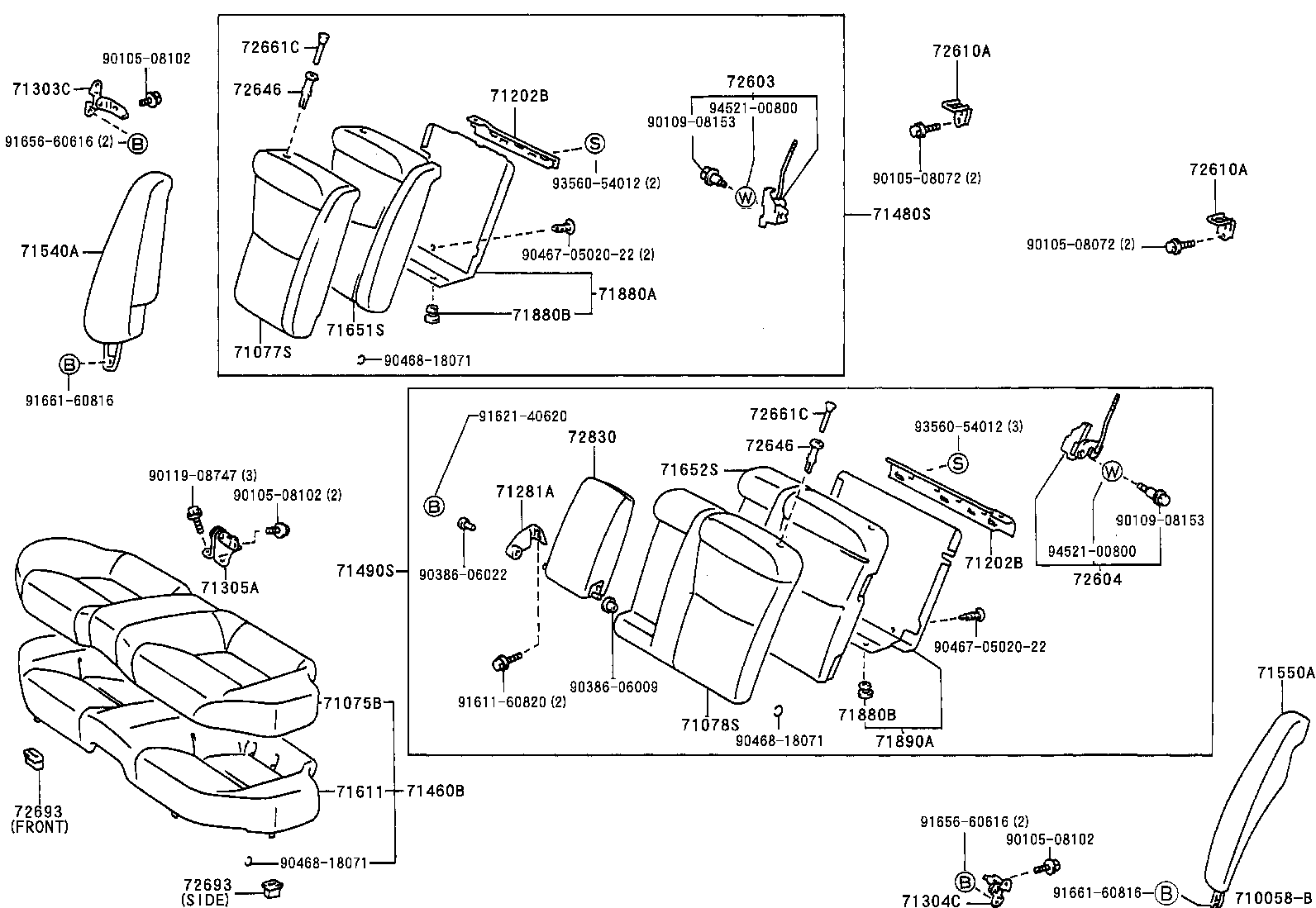

Figure 710057B 710057B 1993-09 → 1995-08 Figure 710057B 710057B 1995-08 → — Figure 710058B 710058B 1993-09 → 1995-08 Figure 710058B 710058B 1995-08 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71202B Panel, Rear Seatback
71281A Hinge, Rear Seat Center Armrest
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A Back Assy, Rear Side Seat, RH
71550A Back Assy, Rear Side Seat, LH
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71880A Carpet Assy, Rear Seatback Board, RH
71880B Clip(FOR REAR SEATBACK CARPET)
71890A Carpet Assy, Rear Seatback Board, LH
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72610A Striker Assy, Rear Seatback Lock
72646 Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
