Toyota Corona Exiv

1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

24 part groups · 3 illustrations

Illustrations

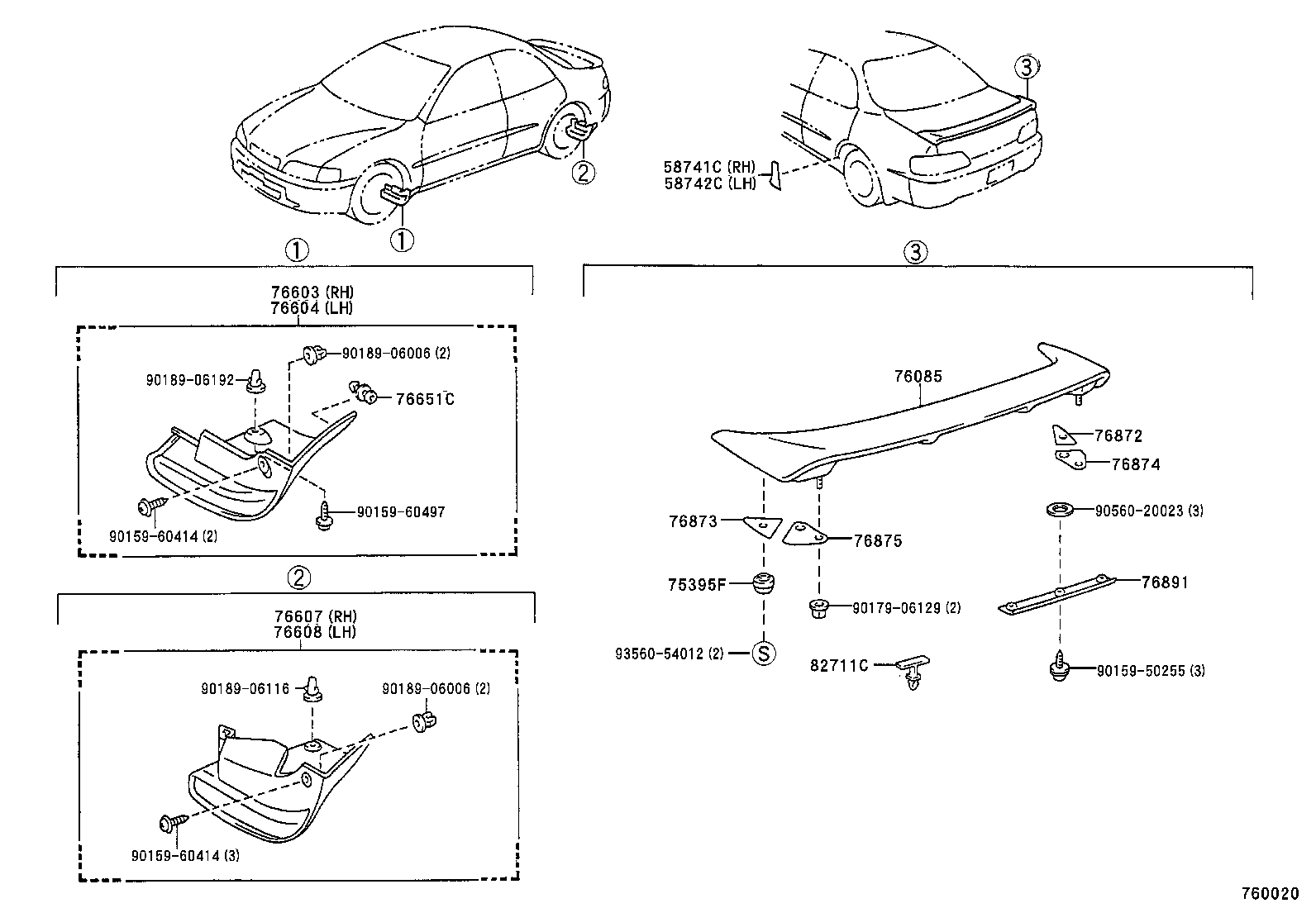

Figure MBX899D MBX899D 1993-09 → 1995-08 Figure 760020 760020 1995-08 → — Figure 760004 760004 1995-08 → —

Part groups

PNCDescription
58741C Protector, Quarter Panel, RH
58742C Protector, Quarter Panel, LH
75395F Clip, Outside Moulding, NO.1
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76651C Retainer, Front Mudguard
76651D Retainer, Side Mudguard, NO.2
76865A Retainer, Side Mudguard
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76891 Spoiler, Rear NO.1
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76922D Protector, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
76927 Protecter, Rear Mudguard, RH
76928 Protecter, Rear Mudguard, LH
82711C Clamp, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
