Toyota Corona Exiv

1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 11 illustrations

Illustrations

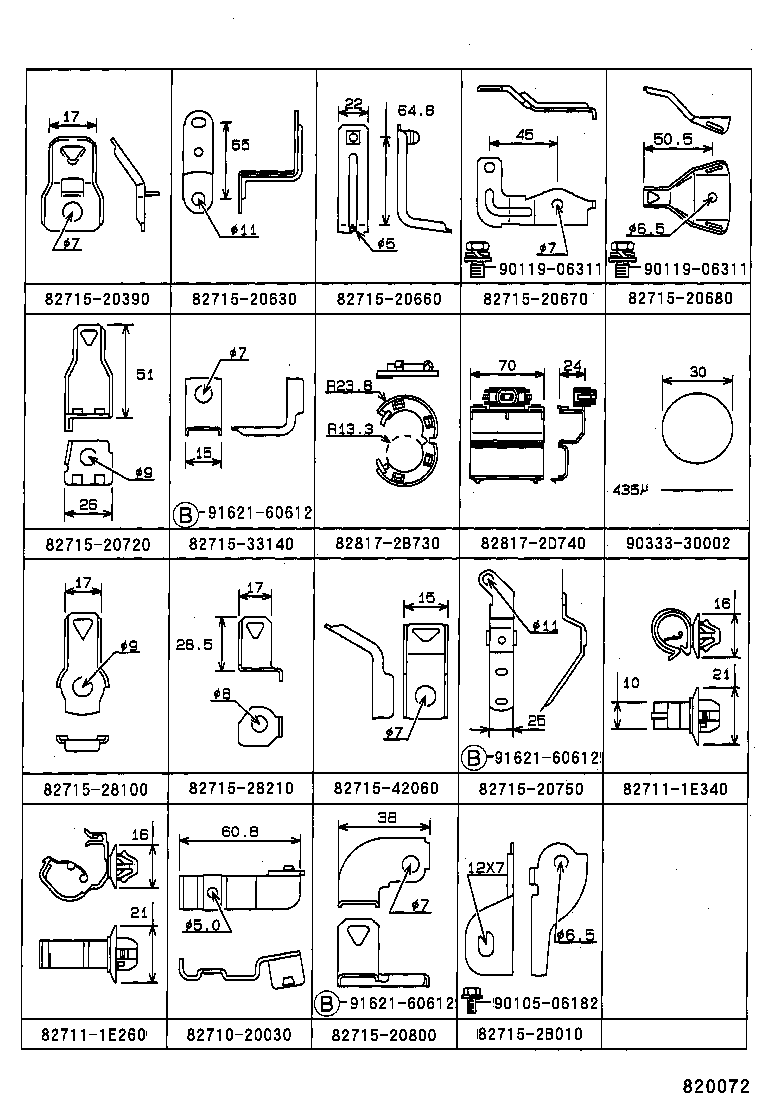

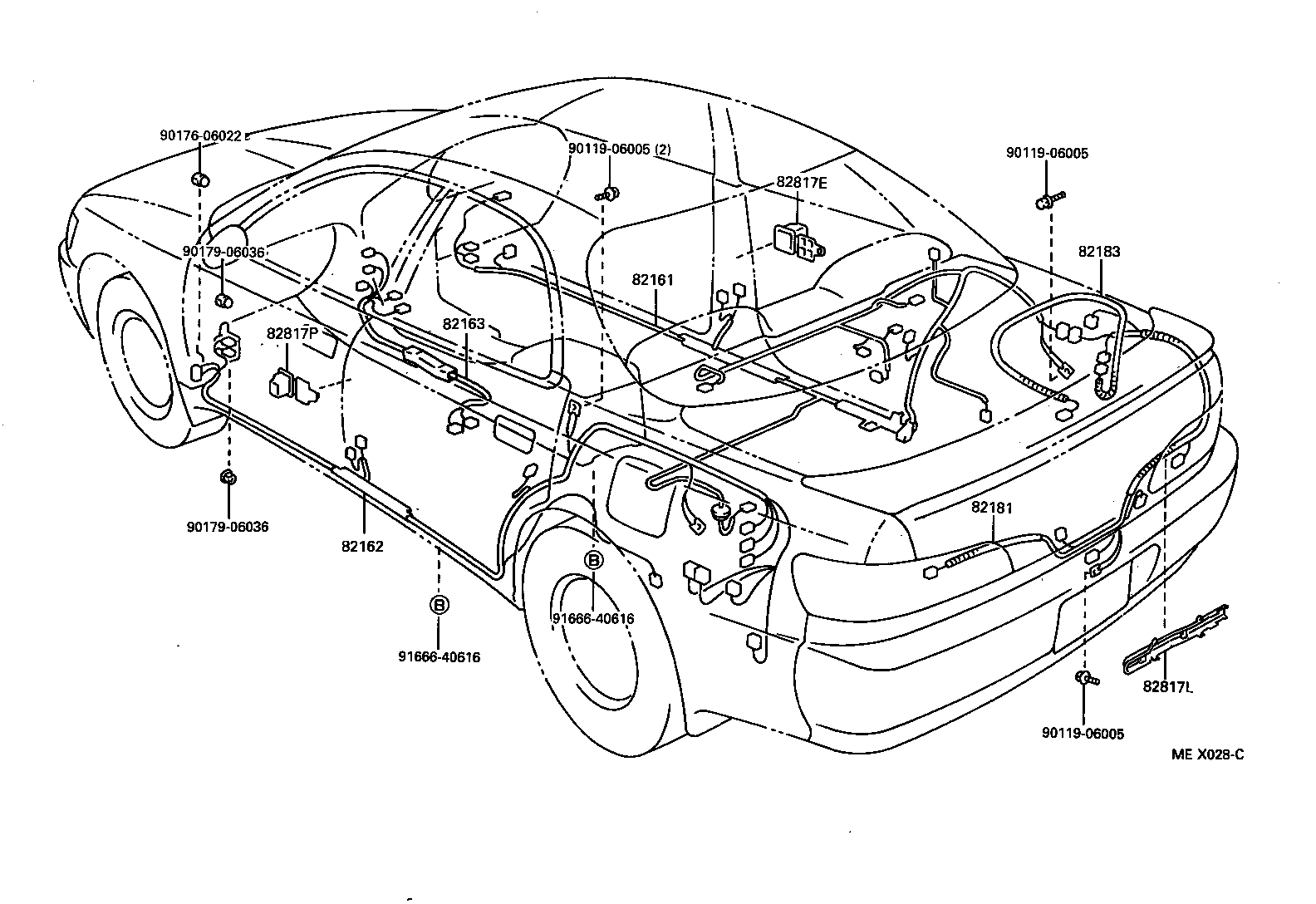

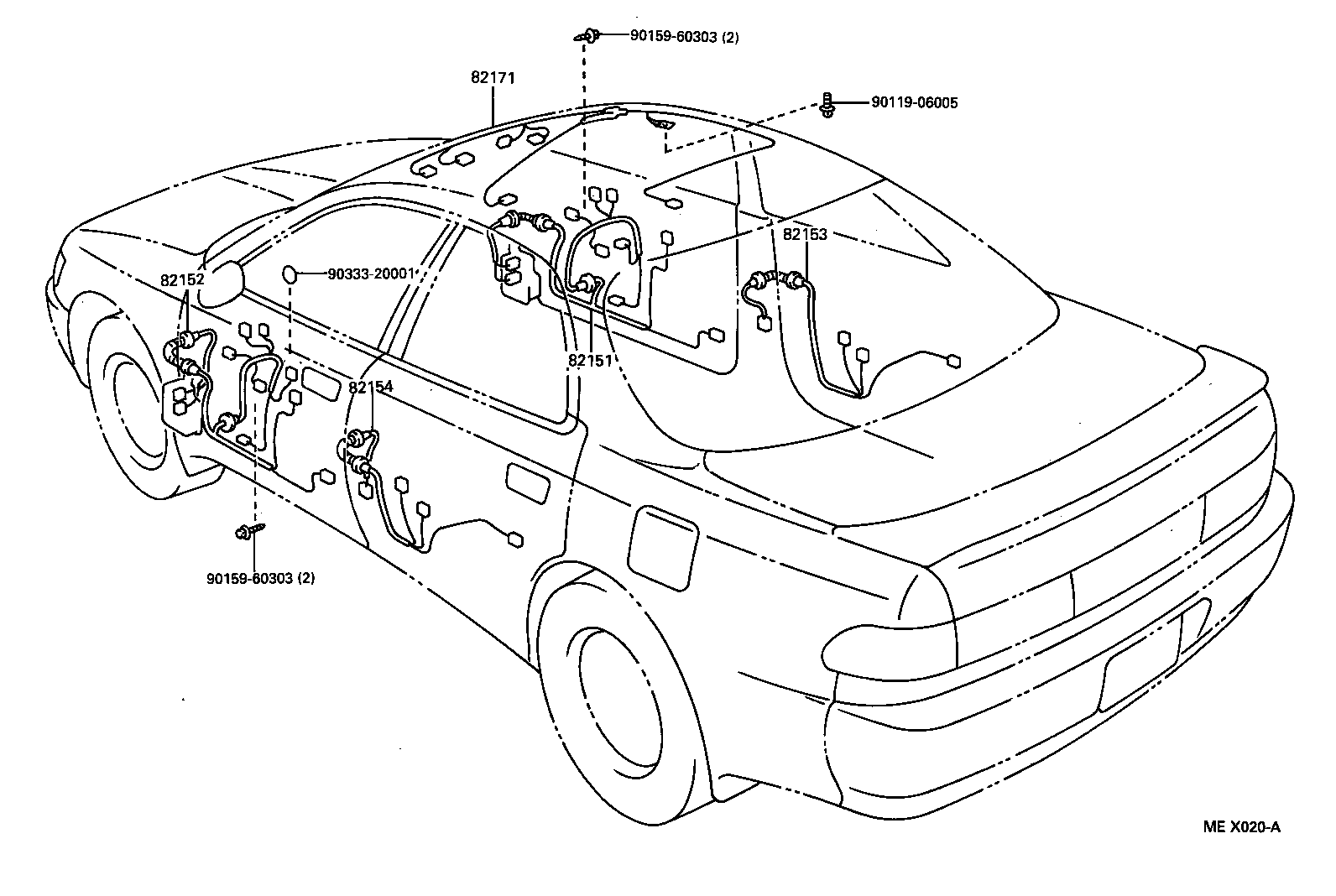

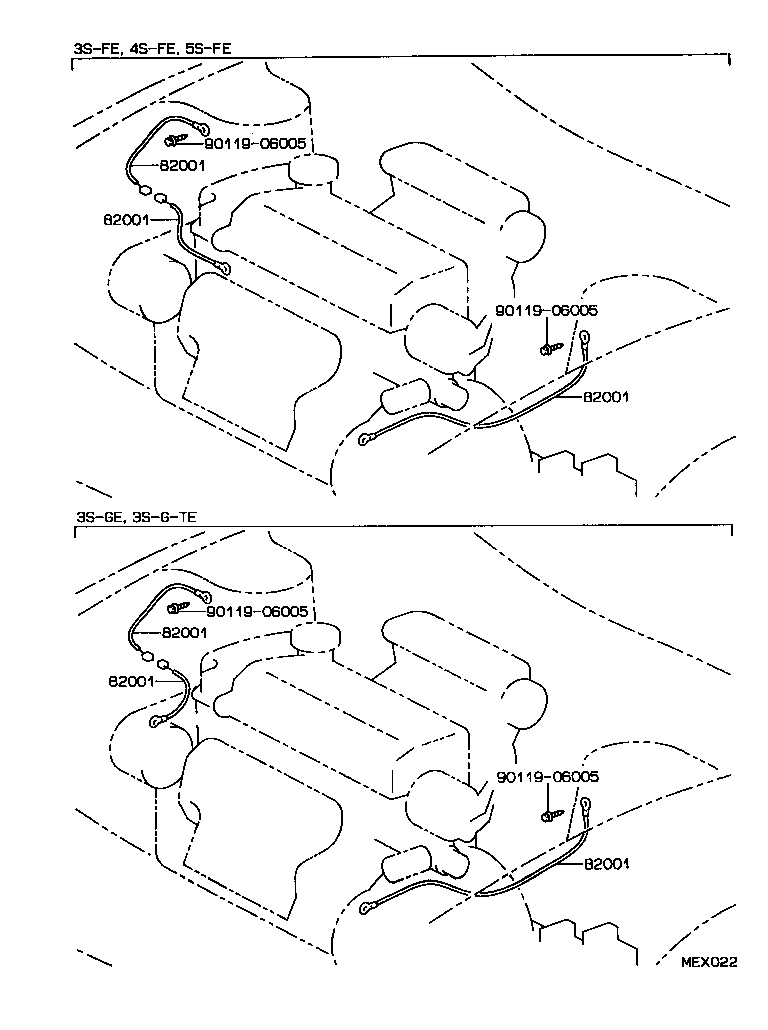

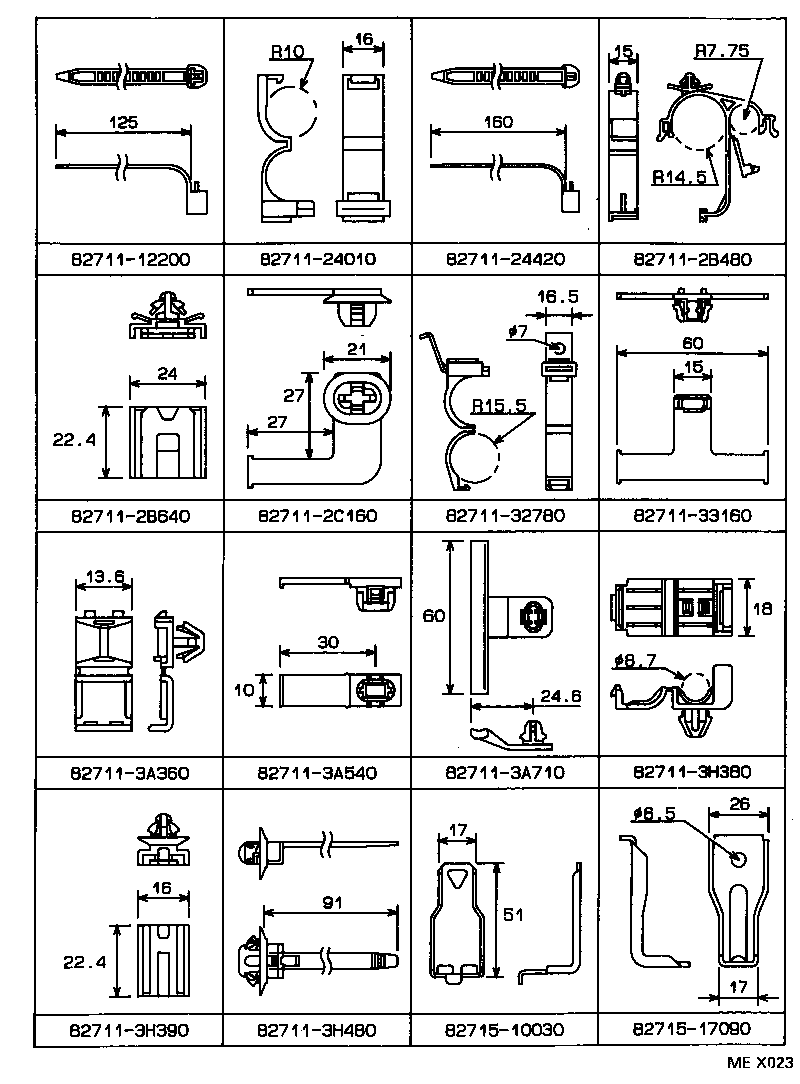

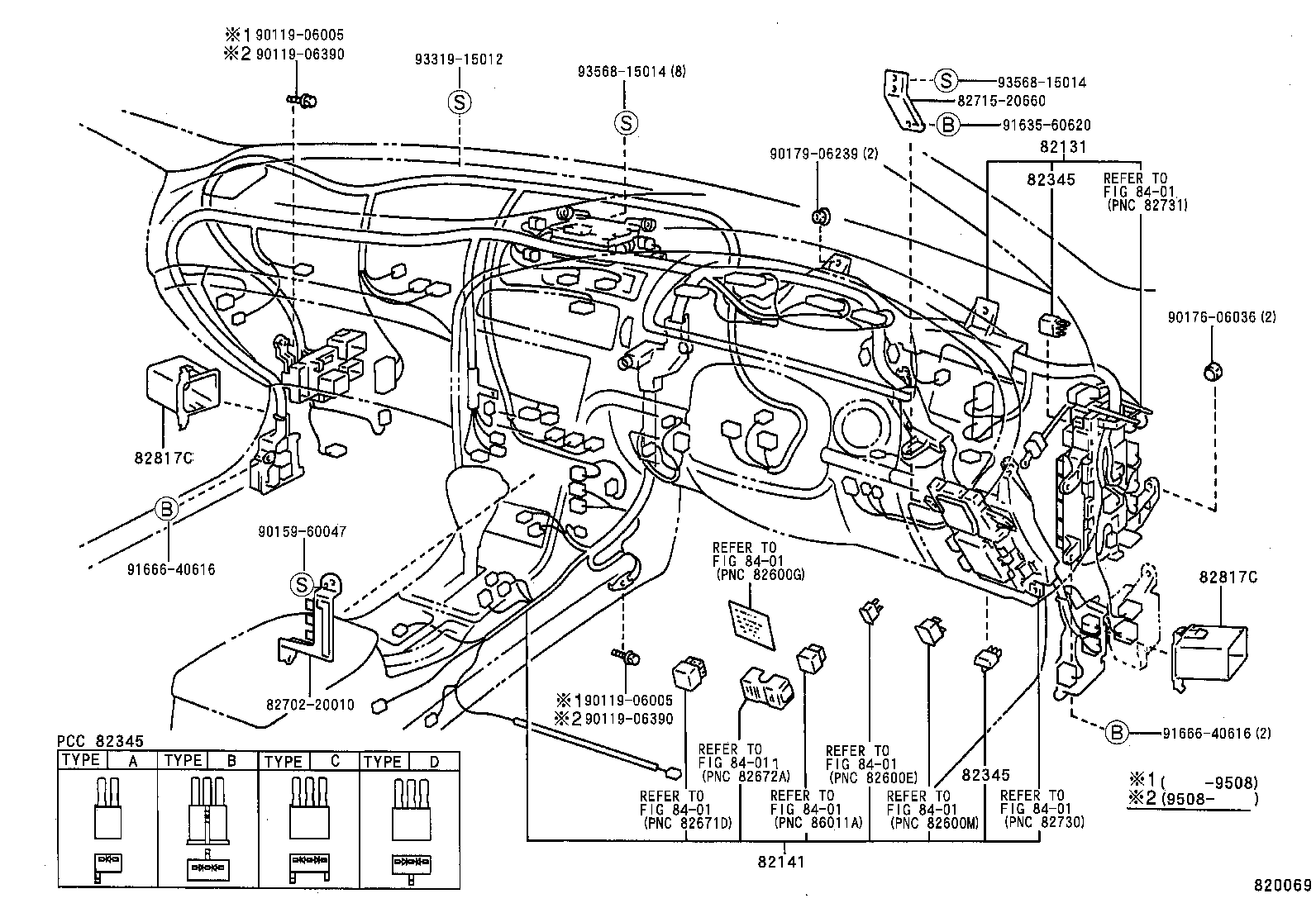

Figure 823294 823294 1993-09 → — Figure 820242A 820242A 1993-09 → — Figure 820243A 820243A 1993-09 → — Figure 820068B 820068B 1993-09 → — Figure 820069 820069 1993-09 → — Figure MEX020A MEX020A 1993-09 → — Figure MEX028C MEX028C 1993-09 → — Figure MEX022 MEX022 1993-09 → — Figure MEX023 MEX023 1993-09 → — Figure 820072 820072 1993-09 → — Figure 822065 822065 1993-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3
82210C Fusible Link
82345 Diode
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817L Protector, Wiring Harness, NO.11
82817P Protector, Wiring Harness, NO.14
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
