Toyota Corona Exiv
1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan
Discontinued model
Data version 1998-11
Overdrive & Electronic Controlled Transmission

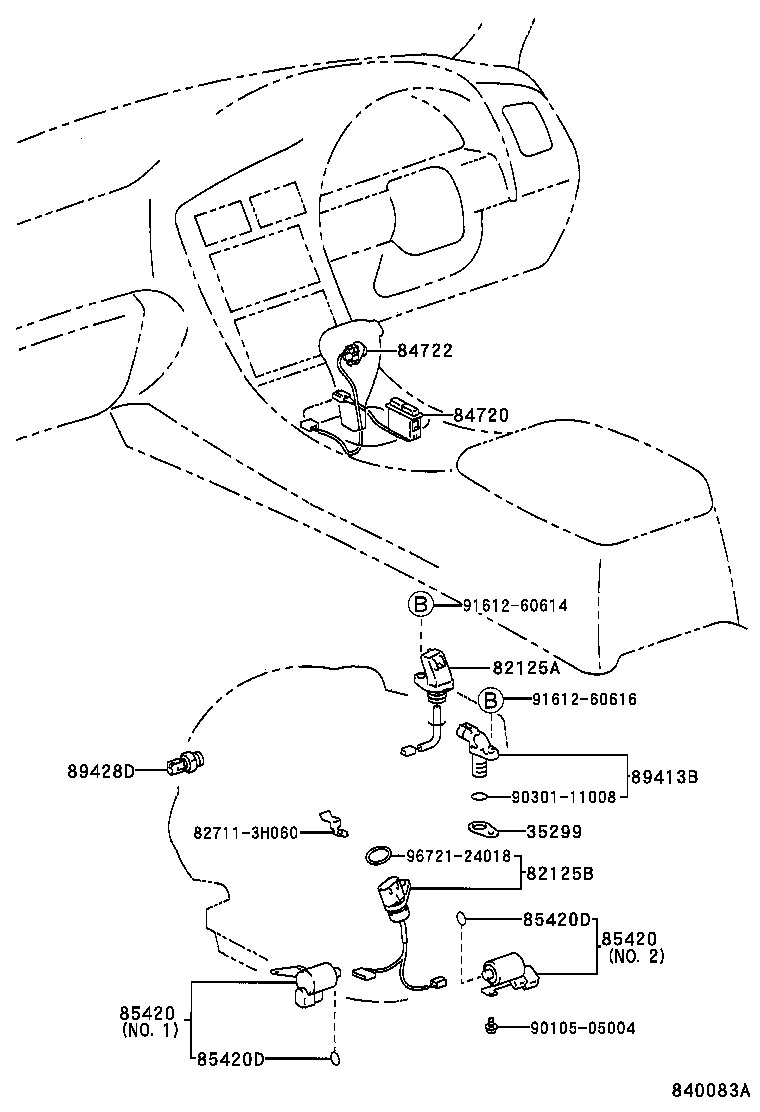

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35299 | Spacer, Transmission Revolution Sensor |
| 82125A | Wire, Transmission |
| 82125B | Wire, Transmission |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89413B | Sensor, Transmission Revolution |
| 89428D | Switch, Temperature, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
