Toyota Corona Exiv

1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan

Discontinued model Data version 1998-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 2 illustrations

Illustrations

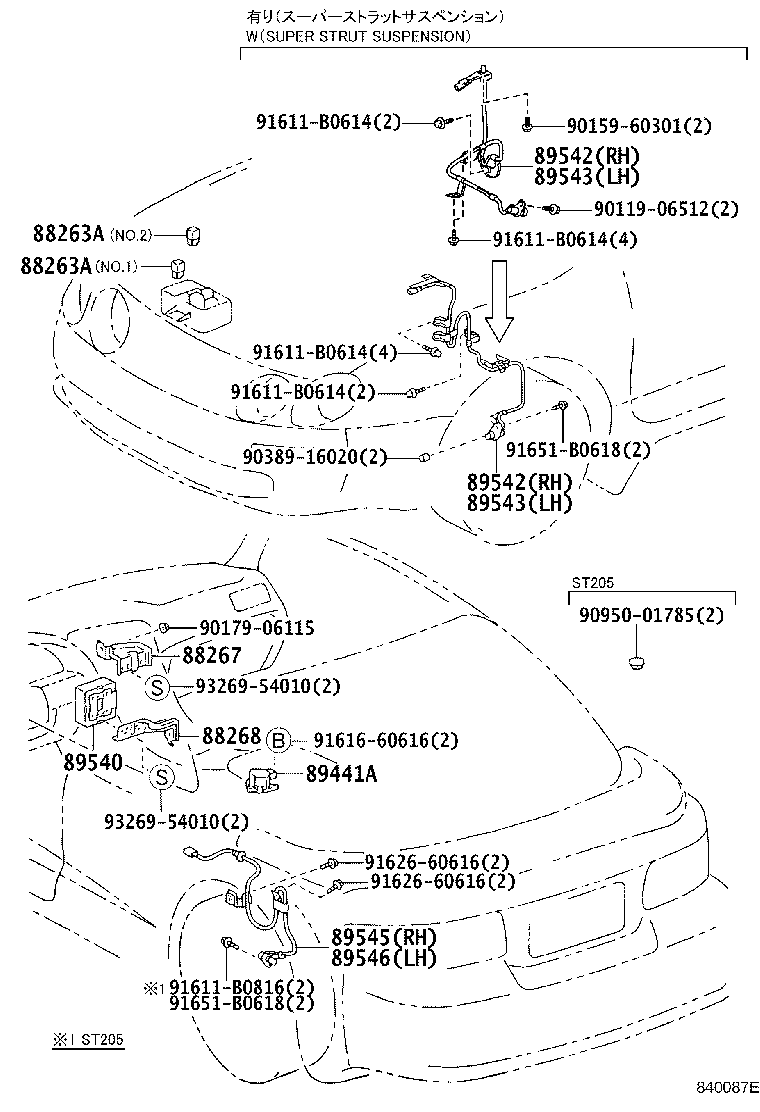

Figure 840086A 840086A 1993-09 → 1995-08 Figure 840087E 840087E 1995-08 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88267 Bracket, Skid Control Computer, NO.1
88268 Bracket, Skid Control Computer, NO.2
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
