Heating & Air Conditioning - Cooler Unit

17 part groups · 3 illustrations

Illustrations

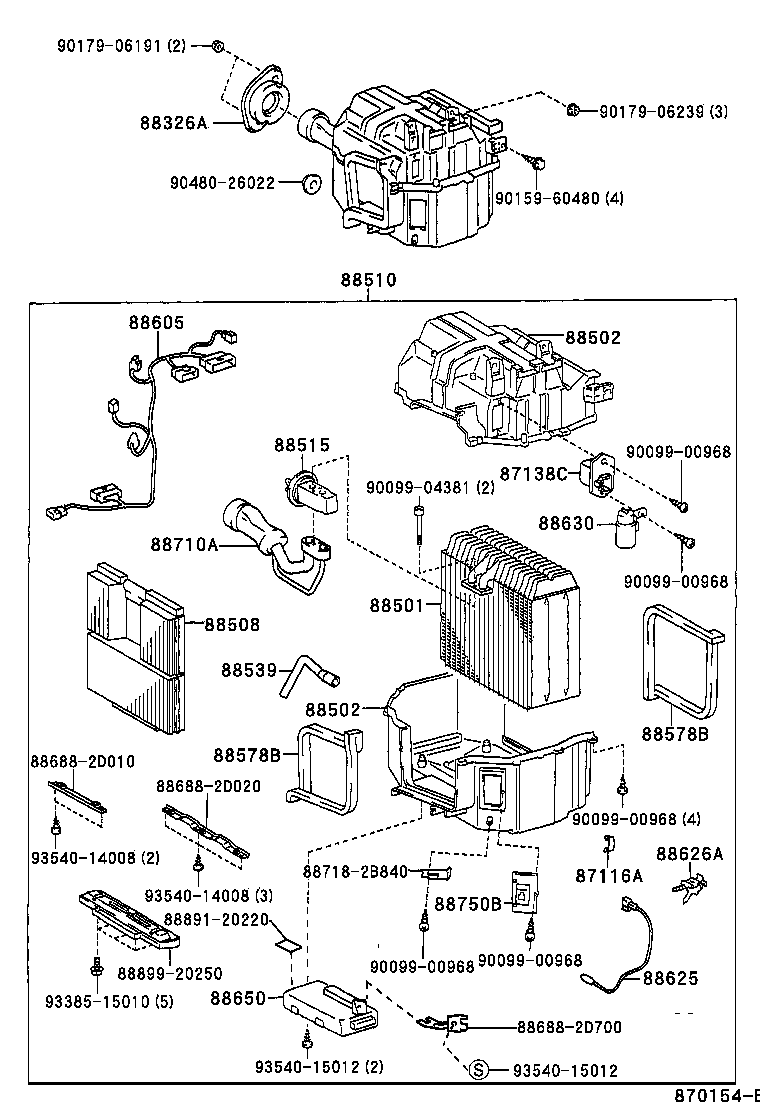

Figure 870155B 870155B 1993-09 → — Figure 870154B 870154B 1993-09 → — Figure 870152 870152 1993-09 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88326A Plate, Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88508 Filter Sub-assy, Clean Air
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
88750B Transistor Assy, Blower Resistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
