Toyota Corona Exiv
1993-09 → 1998-04 · chassis ST20# · catalogue 253140 · Japan
Discontinued model
Data version 1998-11

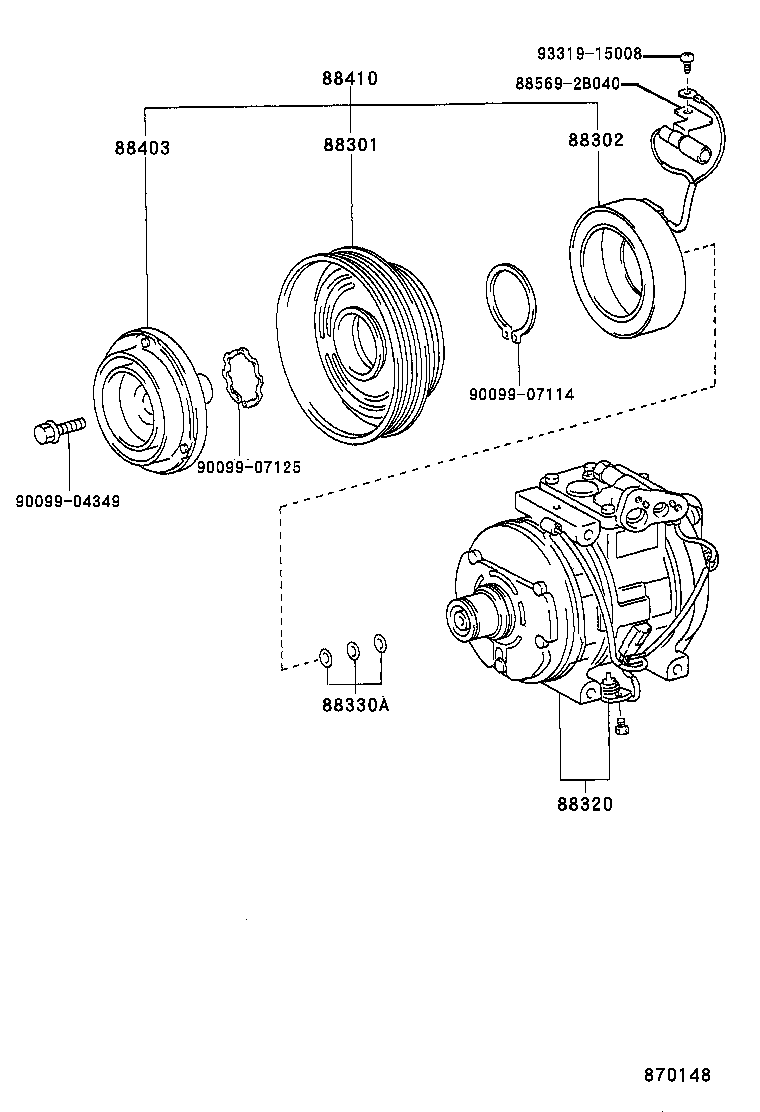

Heating & Air Conditioning - Compressor
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88440B | Pulley Assy, Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
