Toyota Curren

1994-02 → 1998-07 · chassis ST20# · catalogue 254110 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

25 part groups · 3 illustrations

Illustrations

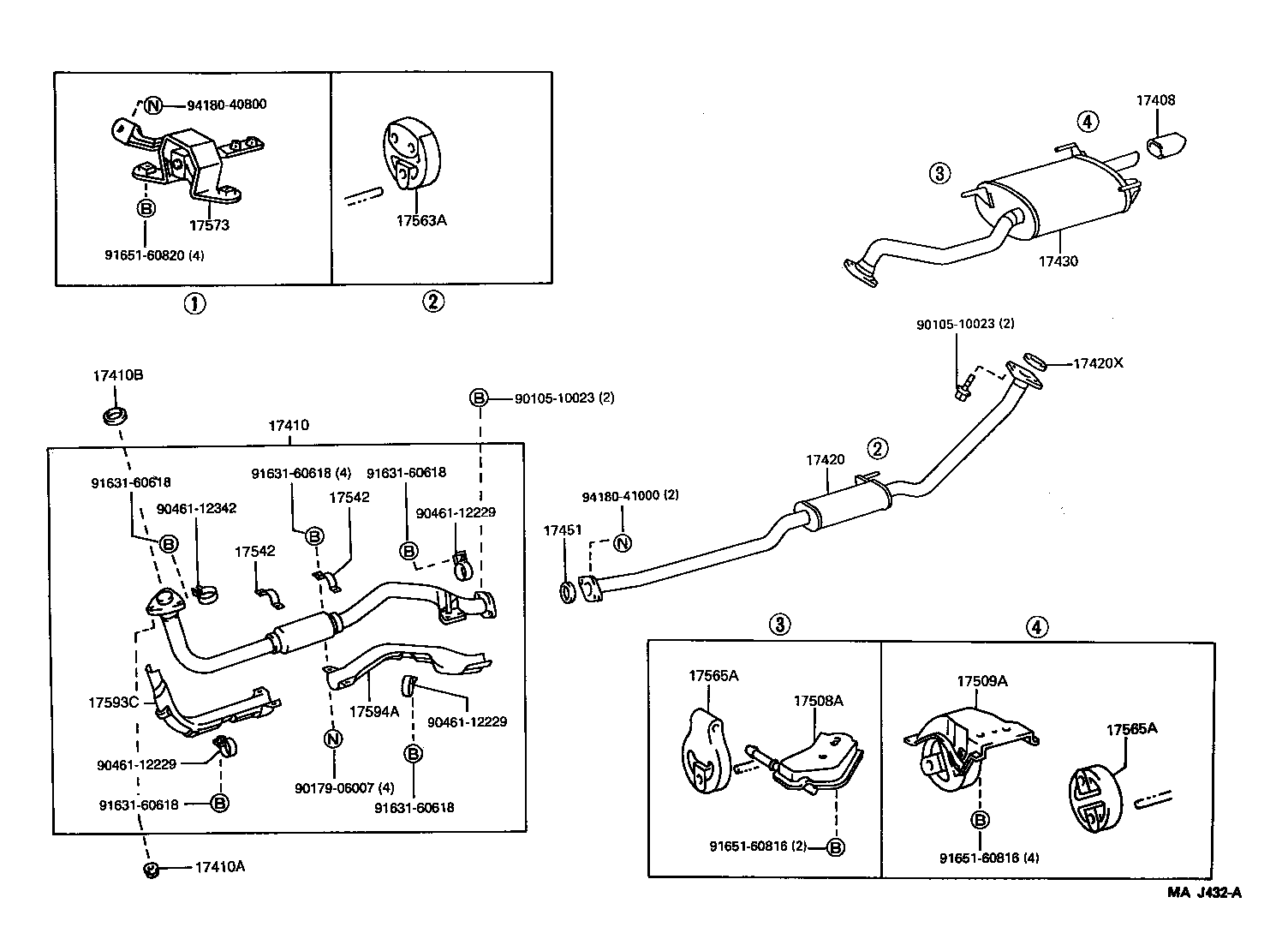

Figure 170376A 170376A 1994-02 → — Figure 171338 171338 1994-02 → — Figure MAJ432A MAJ432A 1995-09 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17542 Stay, Exhaust Pipe Protector, NO.2
17543 Stay, Exhaust Pipe Protector, NO.3
17544 Stay, Exhaust Pipe Protector, NO.4
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
18436 Protector, Monolithic Converter, NO.1
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
