Toyota Curren
1994-02 → 1998-07 · chassis ST20# · catalogue 254110 · Japan
Discontinued model
Data version 1999-01

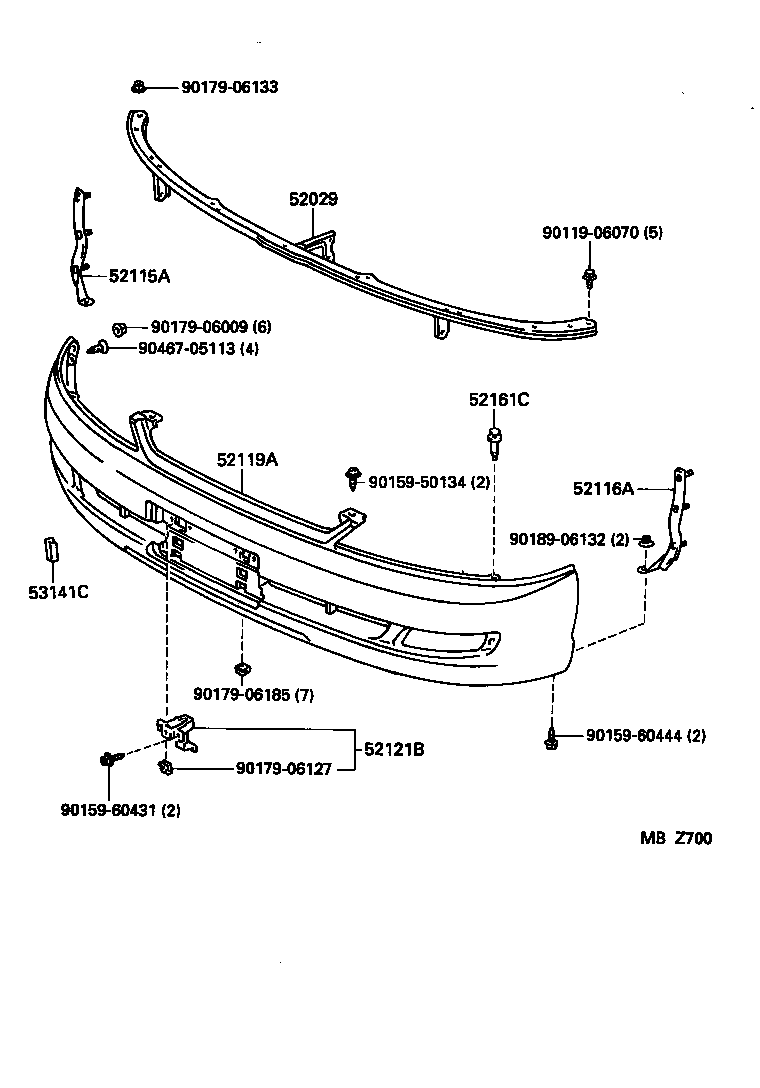

Front Bumper & Bumper Stay
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52121B | Bracket, Front Licence Plate Mounting |
| 52131A | Reinforcement, Front Bumper |
| 52161C | Piece, Front Bumper |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52525 | Retainer, Front Bumper, Lower Center |
| 52611 | Absorber, Front Bumper Energy |
| 53141B | Garnish, Radiator Grille, NO.1 |
| 53141C | Garnish, Radiator Grille |
| 53145B | Clip, Radiator Grille Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
