Toyota Curren

1994-02 → 1998-07 · chassis ST20# · catalogue 254110 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

22 part groups · 3 illustrations

Illustrations

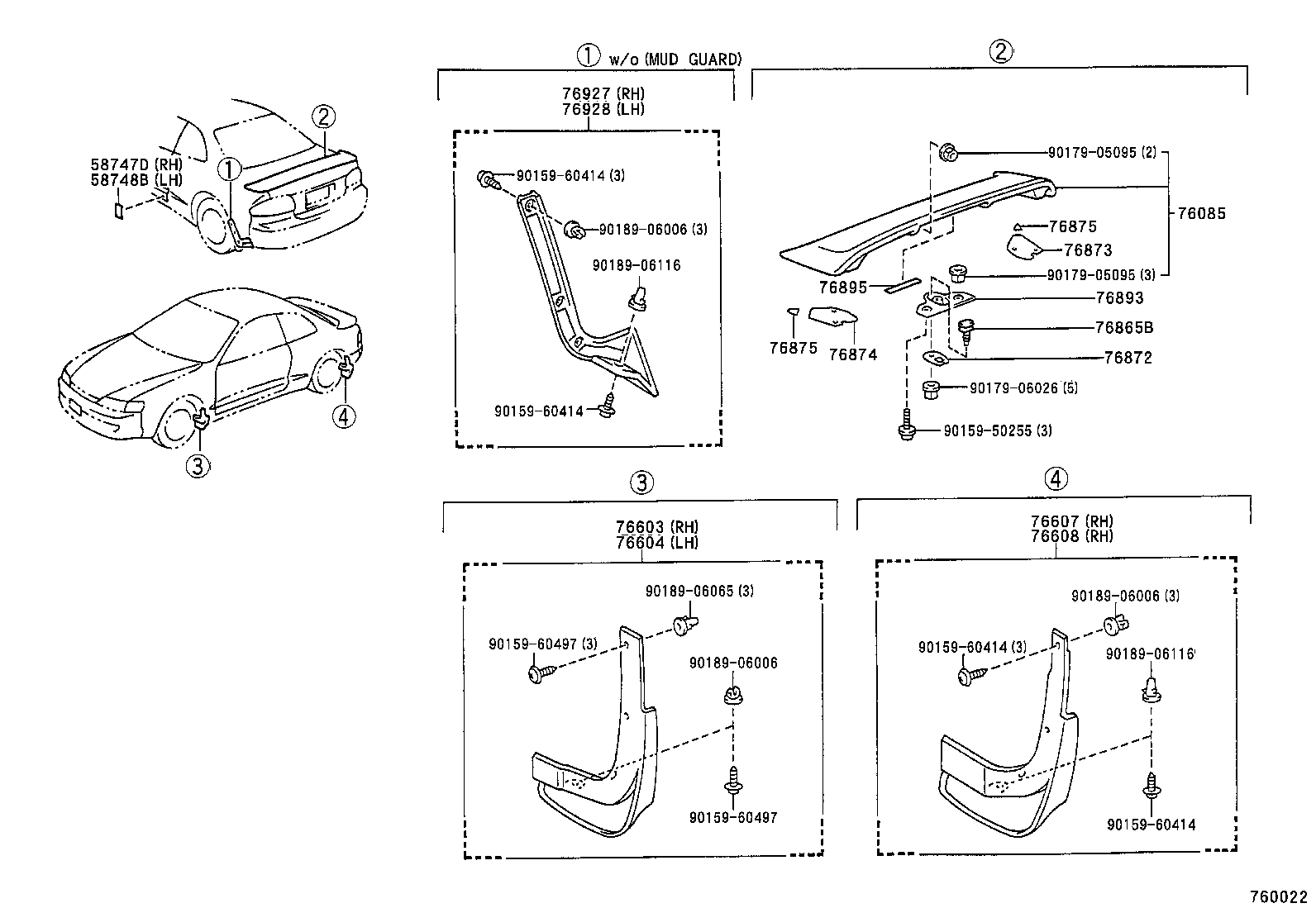

Figure 760021 760021 1994-02 → 1995-09 Figure 760022 760022 1995-09 → — Figure 760005 760005 1995-09 → —

Part groups

PNCDescription
58747D Protector, Quarter Panel, Rear RH
58748B Protector, Quarter Panel, Rear LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76865A Retainer, Side Mudguard
76865B Retainer, Rear Spoiler
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76893 Cover, Rear Spoiler, NO.1
76895 Protector, Rear Spoiler, NO.5
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76922D Protector, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
76927 Protecter, Rear Mudguard, RH
76928 Protecter, Rear Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
