Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

17 part groups · 8 illustrations

Illustrations

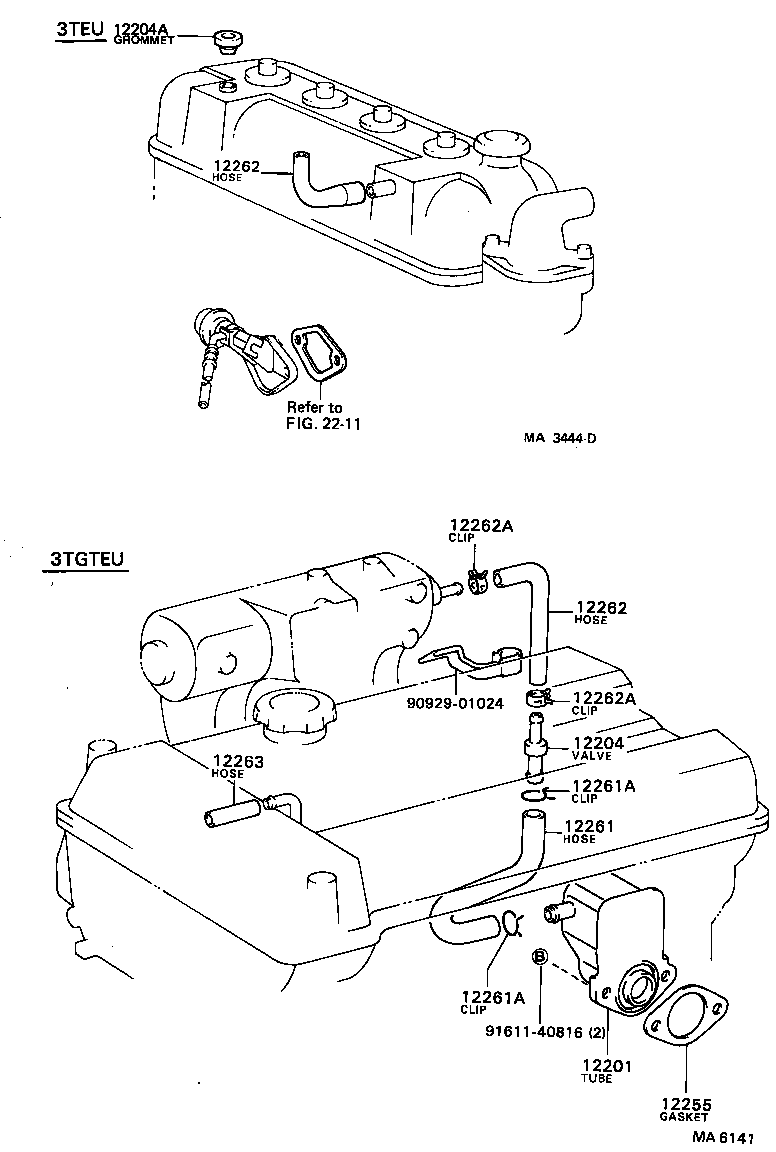

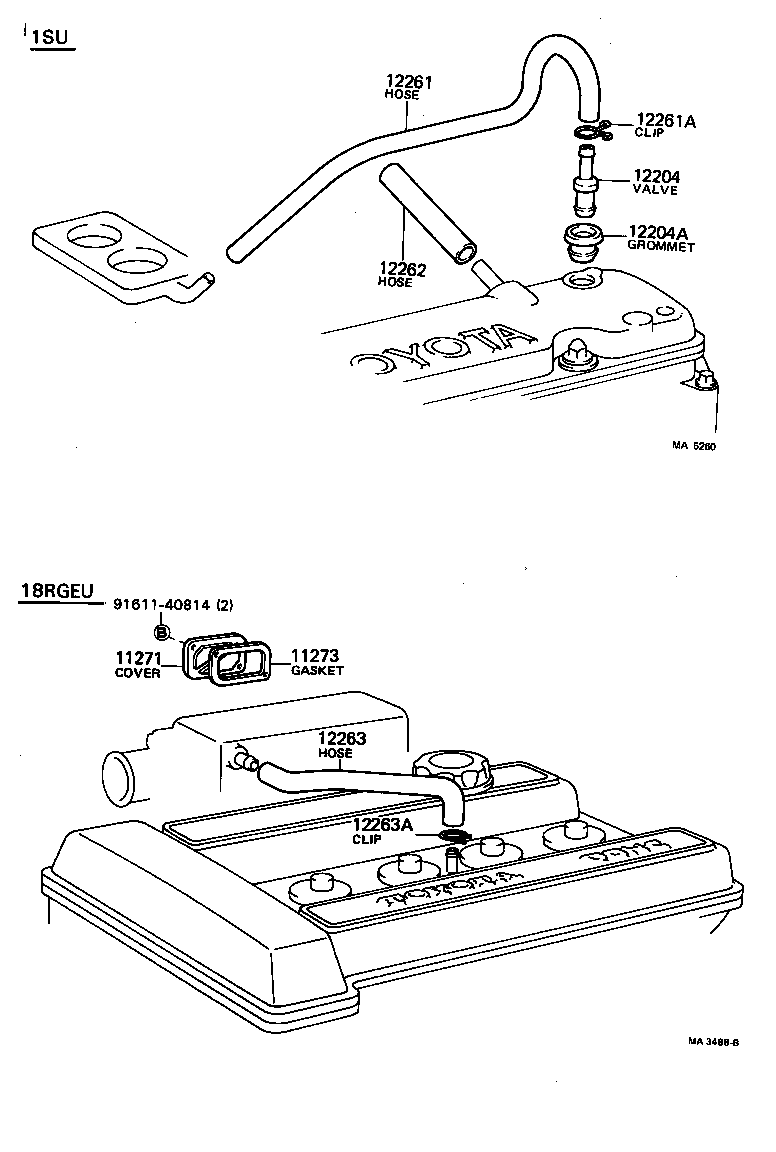

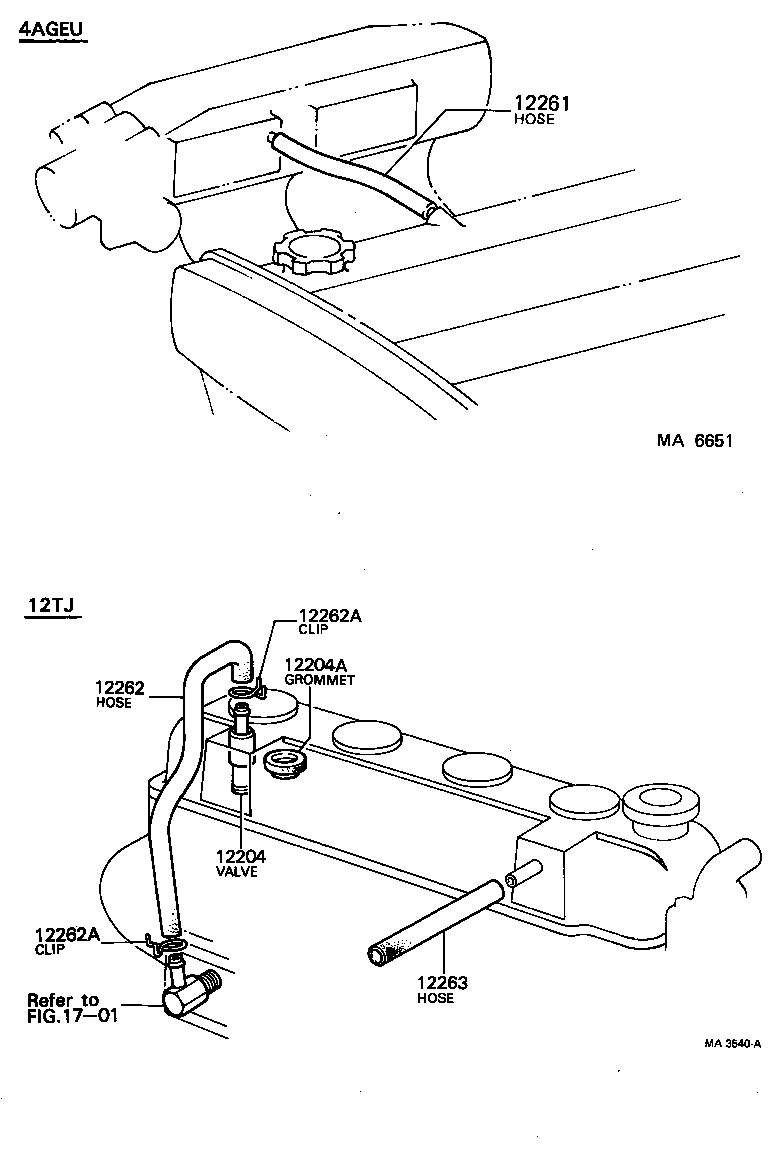

Figure AS0401 AS0401 1982-01 → 1987-12 Figure MA5644A MA5644A 1982-01 → 1991-11 Figure MA6993 MA6993 1983-10 → 1987-12 Figure AS0304A AS0304A 1982-01 → 1987-12 Figure AS0304A AS0304A 1982-01 → 1987-12 Figure AS0302A AS0302A 1982-01 → 1985-08 Figure AS0303A AS0303A 1982-01 → 1985-08 Figure MA6177C MA6177C 1982-09 → —

Part groups

PNCDescription
11271 Cover, Cylinder Block Side
11273 Gasket, Cylinder Block Side Cover
12201 Tube Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12221 Tube, Ventilation NO.1
12233 Connector, Ventilation NO.1
12233A Ring, O(FOR VENTILATION CONNECTOR)
12234 Connector, Ventilation NO.2
12254 Cover, Ventilation Valve
12255 Gasket, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
