Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

14 part groups · 10 illustrations

Illustrations

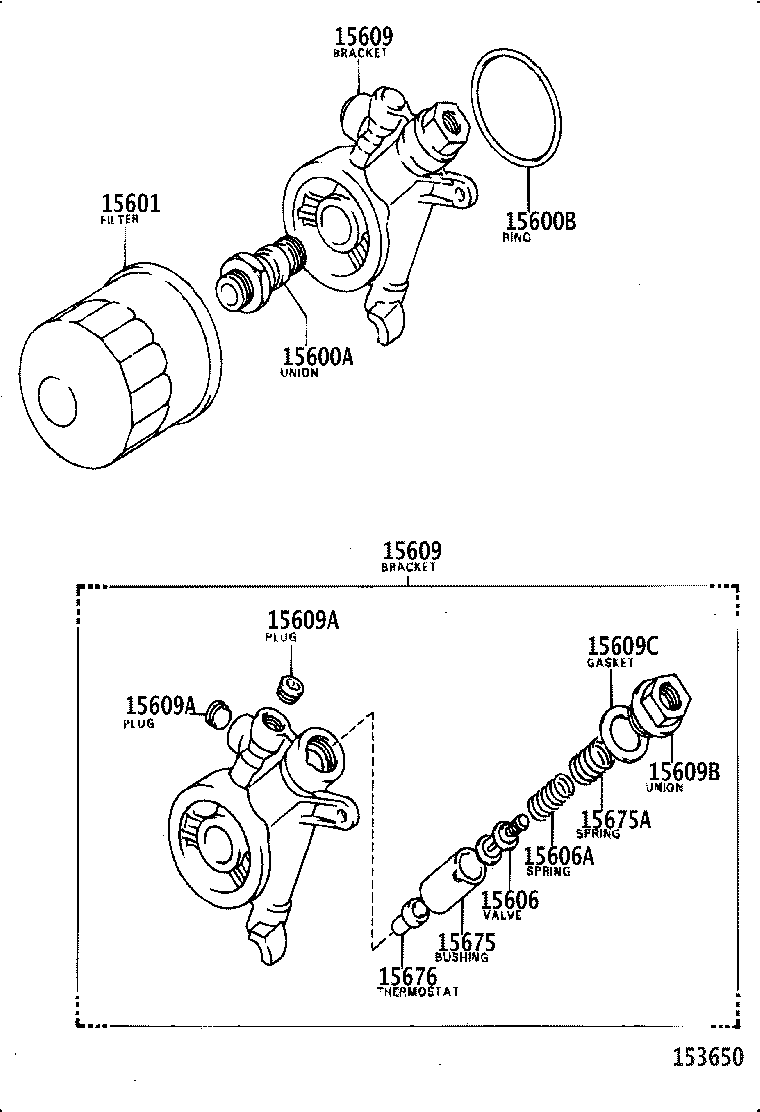

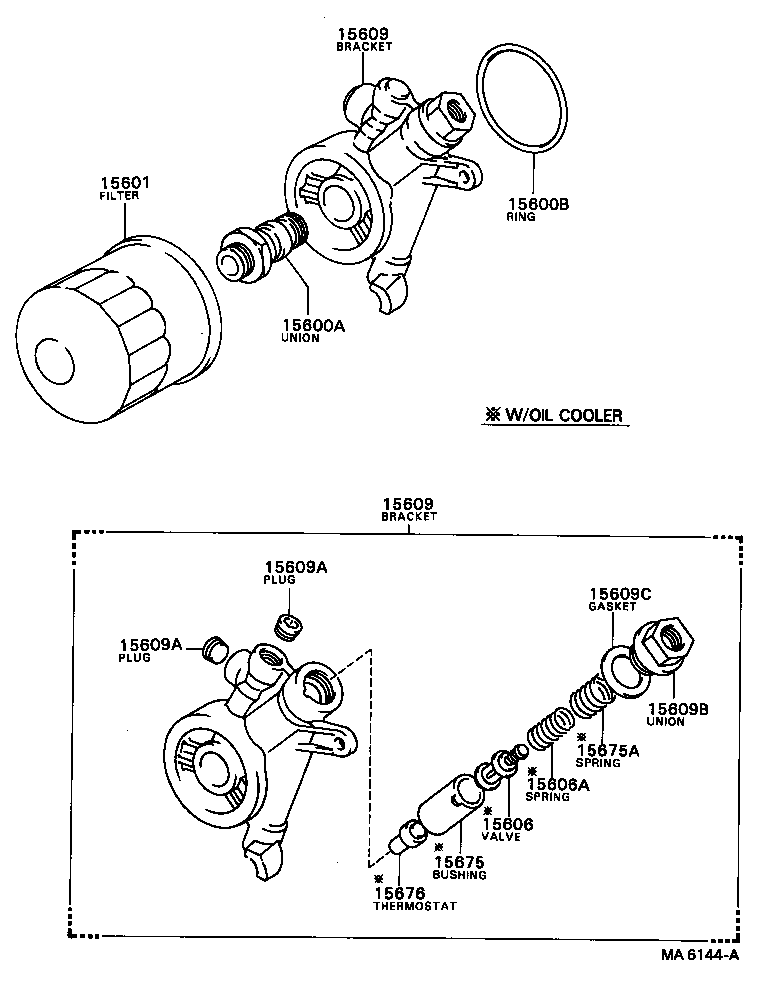

Figure AS0426A AS0426A 1982-01 → 1987-12 Figure MA5649E MA5649E 1982-01 → 1991-11 Figure AS0426A AS0426A 1982-01 → 1987-12 Figure MA6144A MA6144A 1982-01 → — Figure AS0340D AS0340D 1982-01 → — Figure AS0426A AS0426A 1982-01 → 1987-12 Figure 153651 153651 1982-01 → — Figure 153650 153650 1982-10 → — Figure MA6144A MA6144A 1982-01 → — Figure AS0340D AS0340D 1982-01 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600B Ring, O, NO.1(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15606 Valve Sub-assy, Oil Switching
15606A Spring, Compression(FOR OIL SWITCHING VALVE)
15609 Bracket Sub-assy, Oil Filter
15609A Plug, Taper Screw(FOR OIL FILTER BRACKET)
15609B Union(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15621 Gasket, Oil Filter Body
15675 Bushing, Oil Valve
15675A Spring, Compression(FOR OIL VALVE BUSHING)
15676 Thermostat, Oil
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
