Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

73 part groups · 12 illustrations

Illustrations

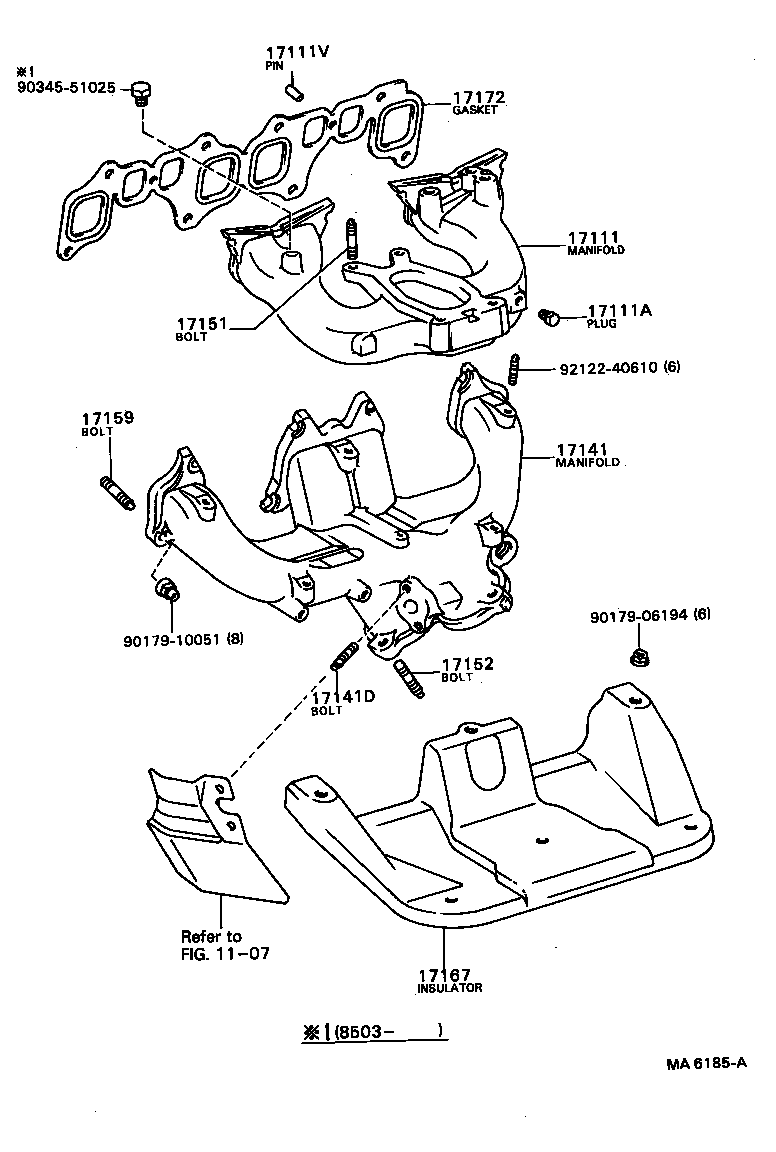

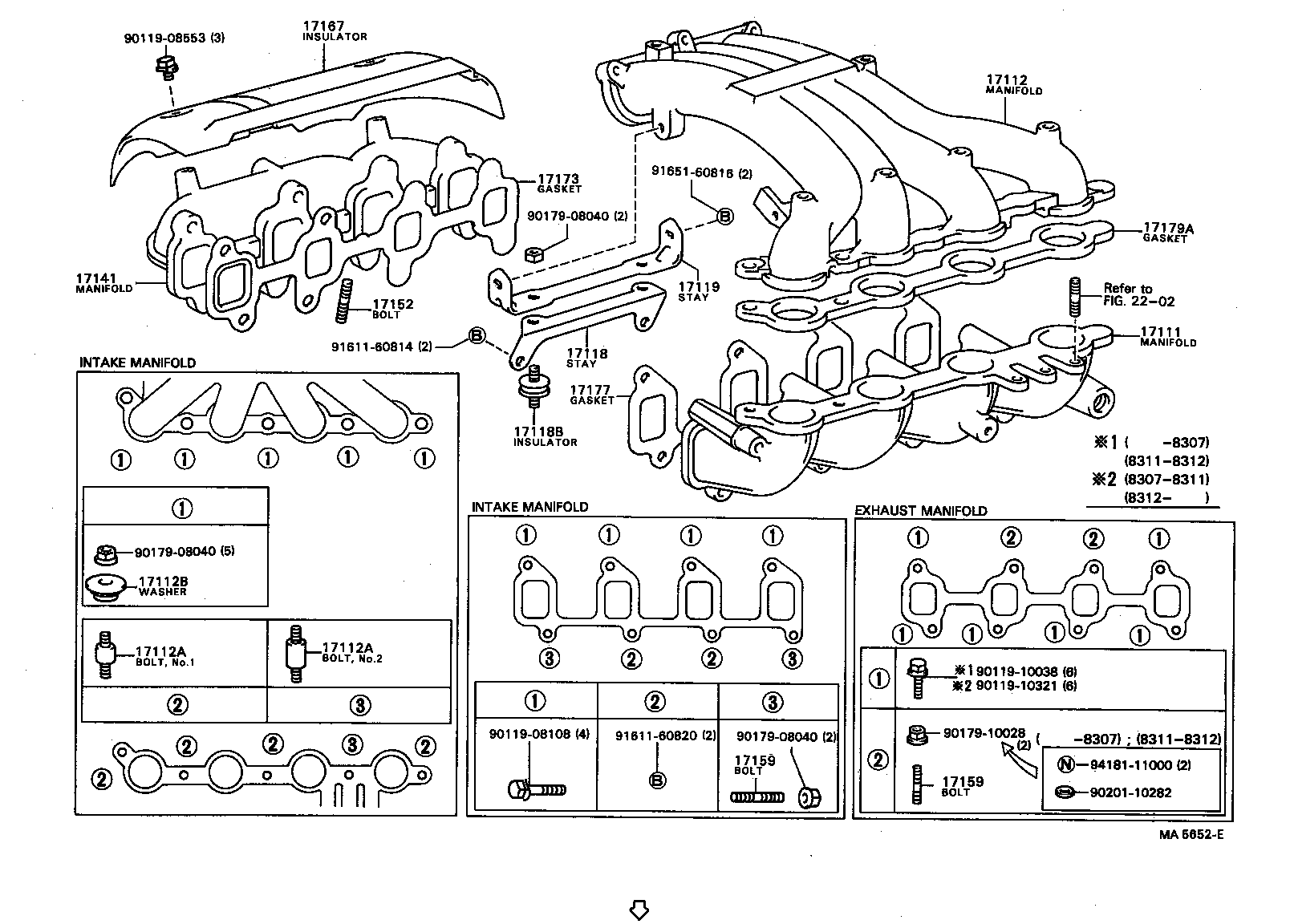

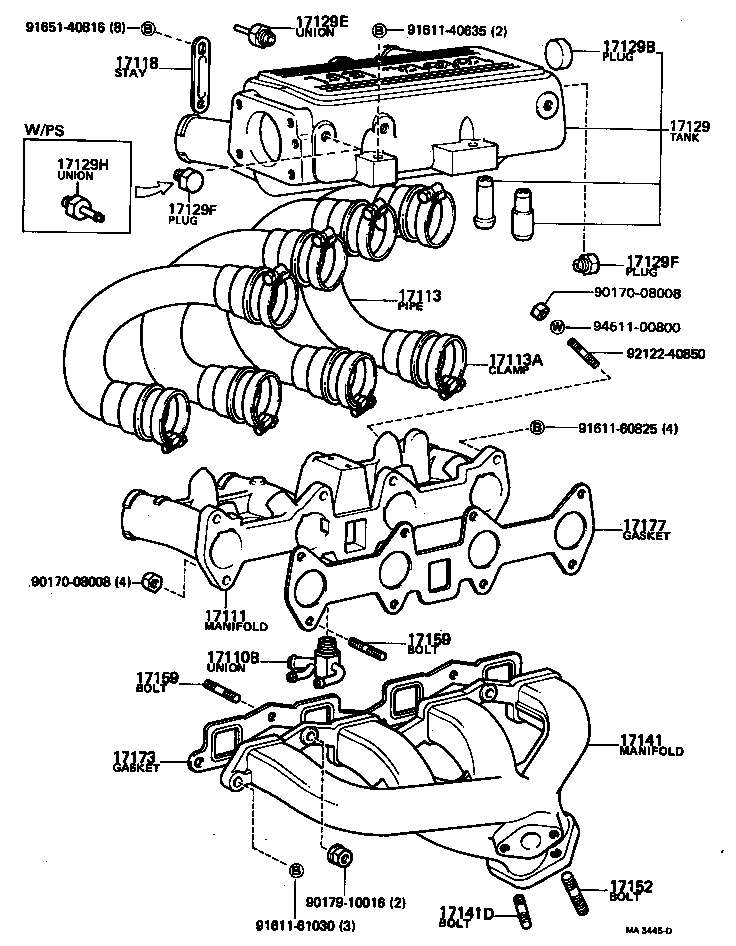

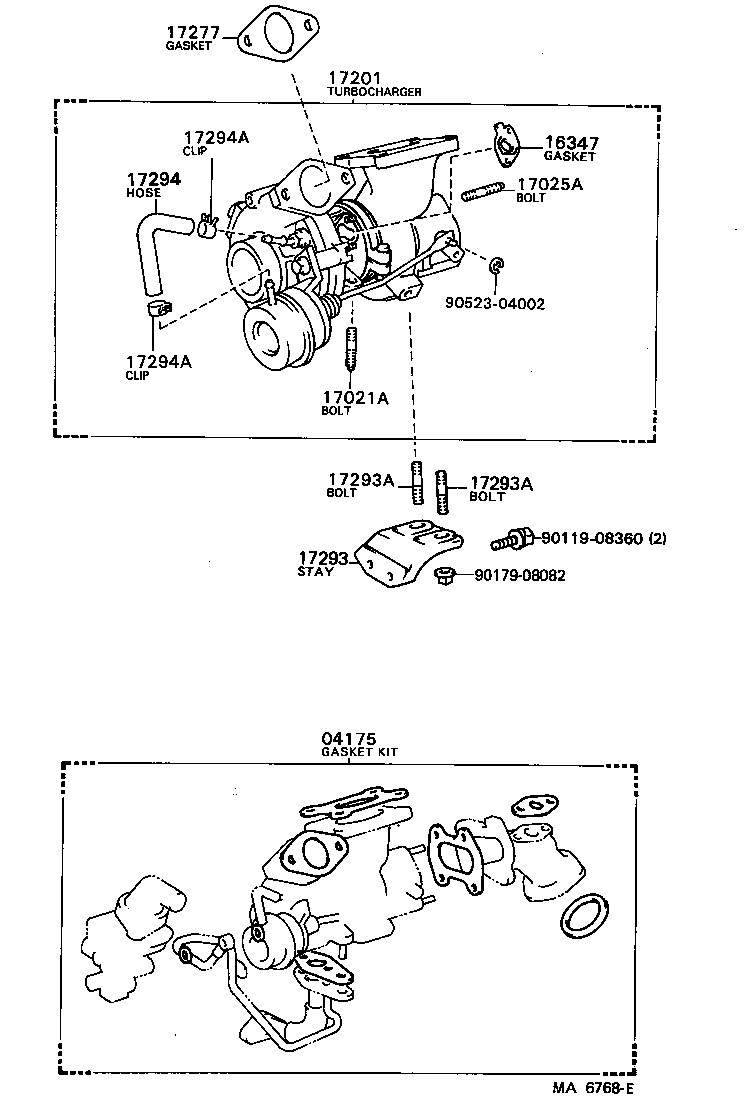

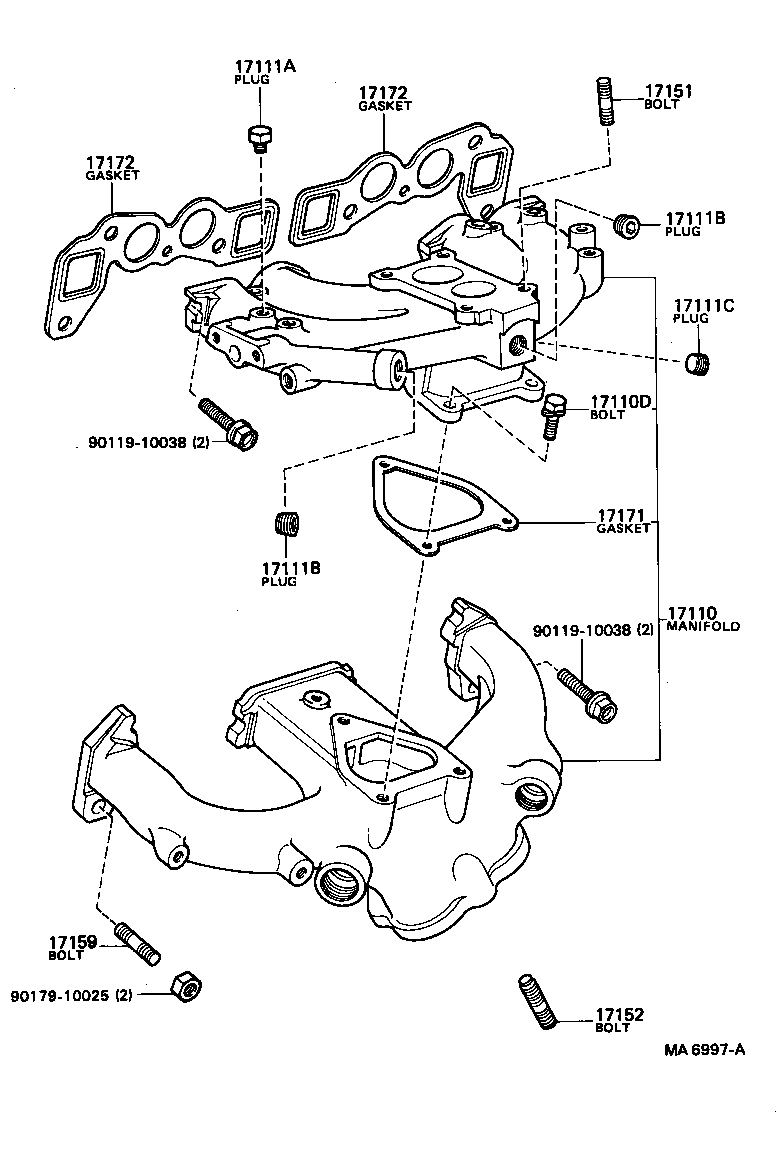

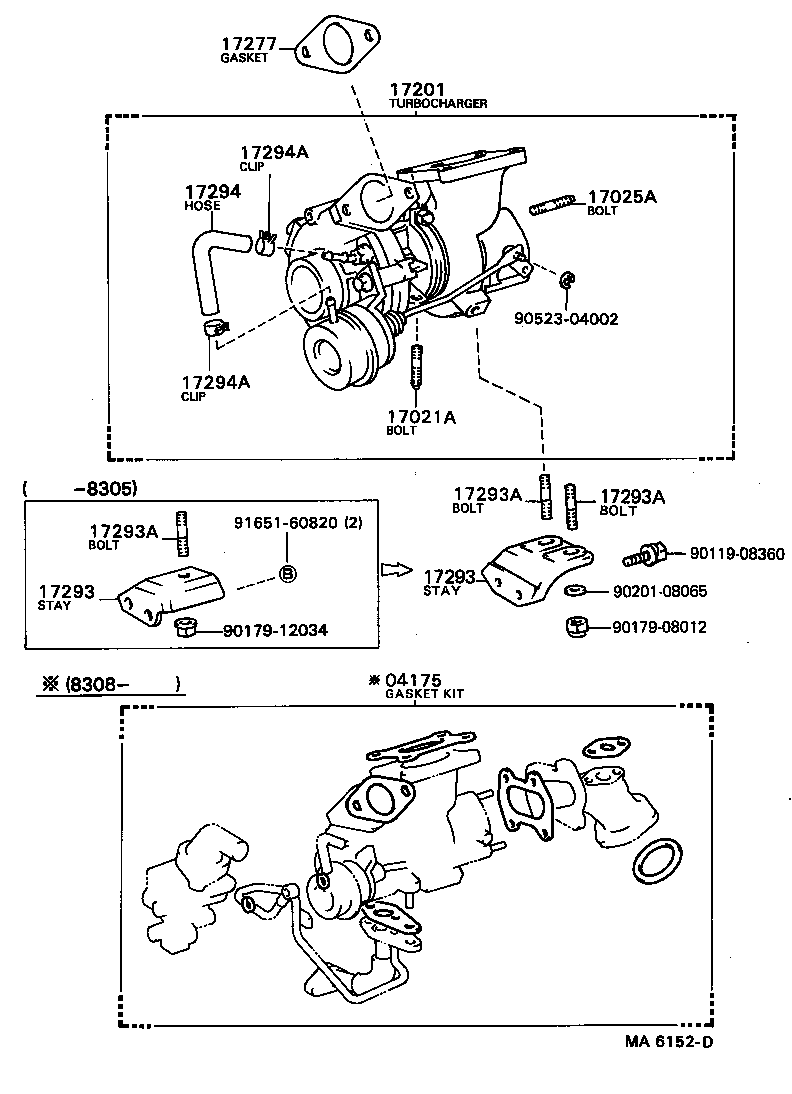

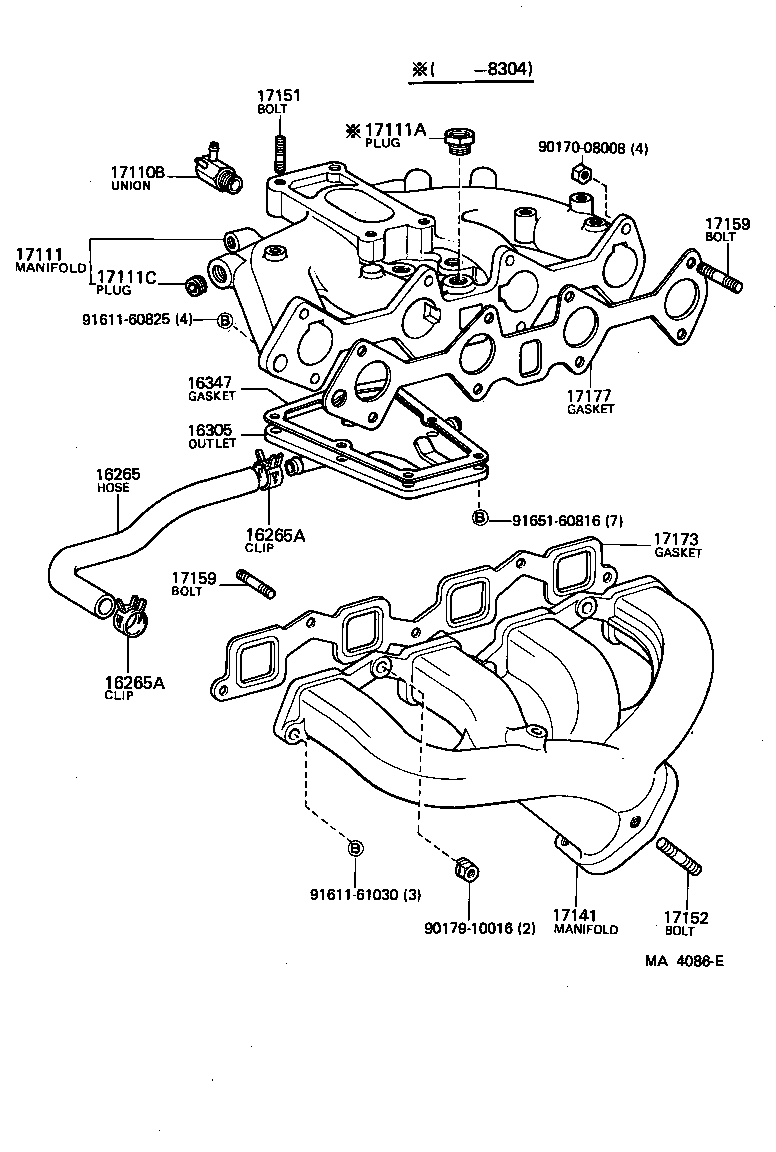

Figure MA5469E MA5469E 1982-01 → 1987-12 Figure MA6758G MA6758G 1983-10 → 1985-08 Figure MA5652E MA5652E 1982-01 → — Figure MA6997A MA6997A 1983-10 → 1987-12 Figure MA5287B MA5287B 1982-01 → 1982-10 Figure MA5267E MA5267E 1982-01 → 1987-12 Figure MA4086E MA4086E 1982-01 → 1983-10 Figure MA3445D MA3445D 1982-01 → 1983-10 Figure MA6151G MA6151G 1982-10 → 1985-08 Figure MA6152D MA6152D 1982-10 → 1983-10 Figure MA6768E MA6768E 1983-10 → 1985-08 Figure MA6185A MA6185A 1982-09 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407C Ring, O(FOR TURBO OIL PIPE)
15471 Gasket, Turbo Oil Inlet
15707C Pipe Sub-assy, Oil
15707D Bolt, Union(FOR OIL PIPE)
15707E Gasket(FOR OIL PIPE)
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16347 Gasket, Water By-pass
17021A Bolt, Stud(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111H Union(FOR INTAKE MANIFOLD WATER)
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17112 Manifold, Intake, NO.2
17112A Bolt, Stud(FOR INTAKE MANIFOLD NO.2 SET)
17112B Washer, Seal(FOR INTAKE MANIFOLD NO.2 SET)
17113 Pipe, Intake
17113A Clamp, Intake Pipe, NO.1
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129D Union, NO.2
17129E Union, NO.3
17129F Plug, Intake Manifold Suction Hole
17129H Union, NO.4
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17141 Manifold, Exhaust
17141C Plug, W/Head Straight Screw
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141G Bolt, Stud(FOR TURBOCHARGER)
17148B Gasket, Egr Inlet
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17293A Bolt, Stud(FOR TURBOCHARGER STAY)
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17300 Valve Assy, Intake Air Control
17344B Union(FOR AIR HOSE)
17361A Tube, Air(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
