Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

12 part groups · 6 illustrations

Illustrations

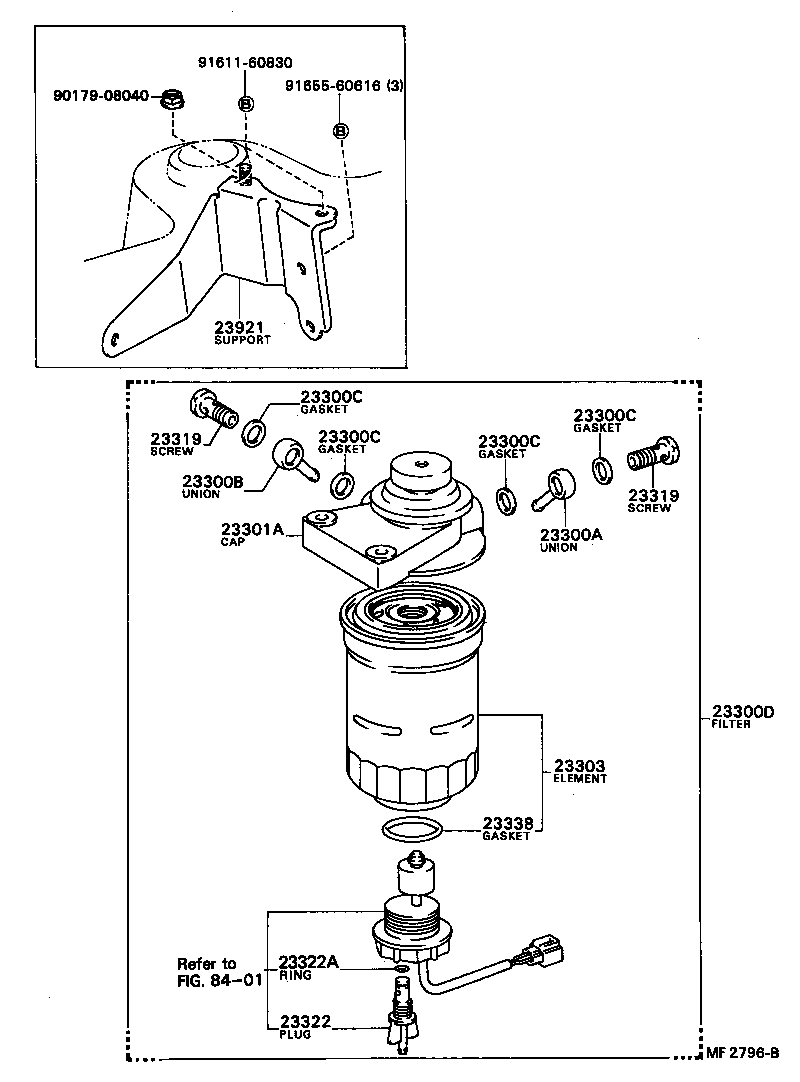

Figure AS0430 AS0430 1982-01 → 1987-12 Figure MF2796B MF2796B 1982-01 → 1986-06 Figure MF3900 MF3900 1986-06 → — Figure AS0430 AS0430 1982-01 → 1987-12 Figure AS0430 AS0430 1982-01 → 1987-12 Figure AS0430 AS0430 1982-01 → 1987-12

Part groups

PNCDescription
23300 Filter Assy, Fuel
23300A Union, Nipple(FOR FUEL FILTER INLET)
23300B Union, Nipple(FOR FUEL FILTER OUTLET)
23300C Gasket, Nipple Union(FOR FUEL)
23300D Filter Assy, Fuel(FOR DIESEL)
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23319 Screw, Fuel Pipe Follow
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23921 Support, Fuel Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
