Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

17 part groups · 5 illustrations

Illustrations

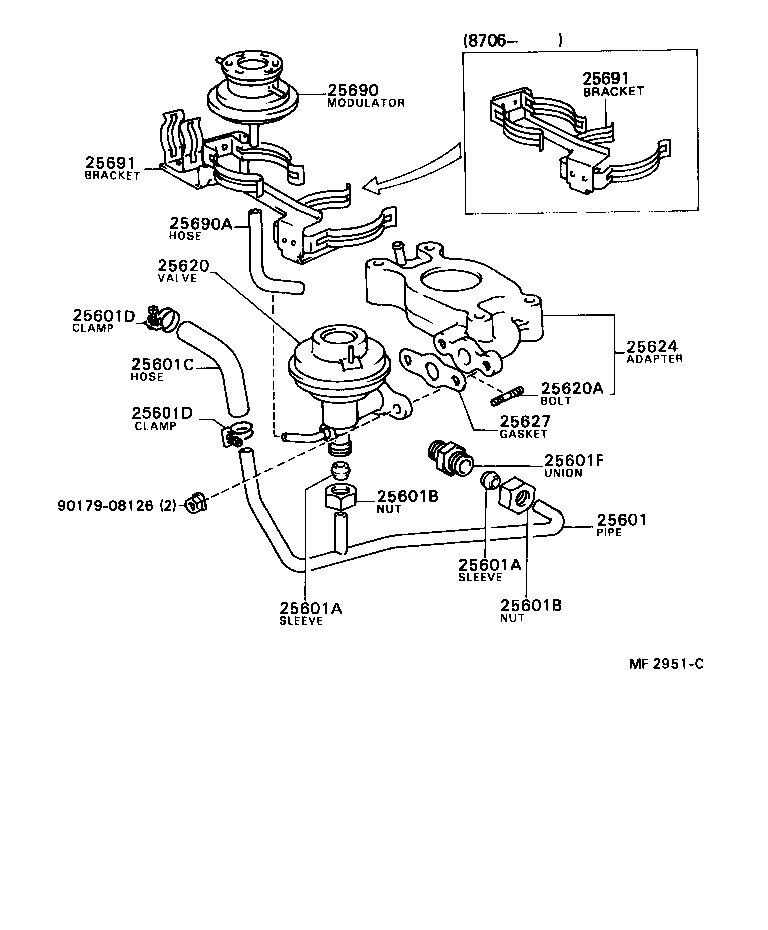

Figure AS0311 AS0311 1982-01 → 1987-12 Figure MF2772B MF2772B 1983-10 → 1987-12 Figure MF2694A MF2694A 1982-01 → 1987-12 Figure AS0311 AS0311 1982-01 → 1987-12 Figure MF2951C MF2951C 1982-09 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601A Sleeve, Ball, Egr Pipe, NO.1
25601B Nut, Union, Egr Pipe, NO.1
25601C Hose(FOR EGR PIPE, NO.1)
25601D Clip OR Clamp(FOR EGR PIPE, NO.1)
25601F Union(FOR EGR PIPE, NO.1)
25601H Bolt, Union(FOR EGR PIPE,NO.1)
25601J Gasket(FOR EGR PIPE, NO.1)
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25624 Adapter, Egr Valve
25627 Gasket, Egr Valve
25629 Gasket, Egr Valve Adapter
25630 Valve Assy, Egr, NO.2
25690 Modulator Assy, Egr Vacuum
25690A Hose(FOR EGR VACUUM MODULATOR)
25691 Bracket, Egr Vacuum Modulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
