Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 6 illustrations

Illustrations

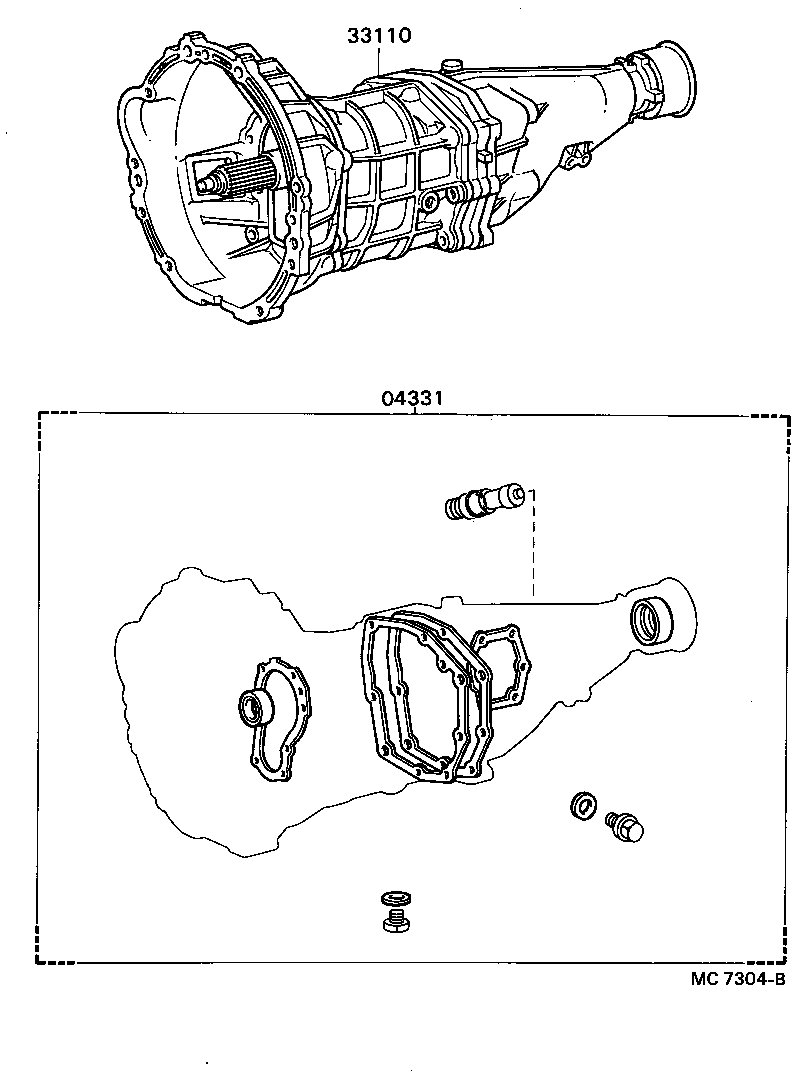

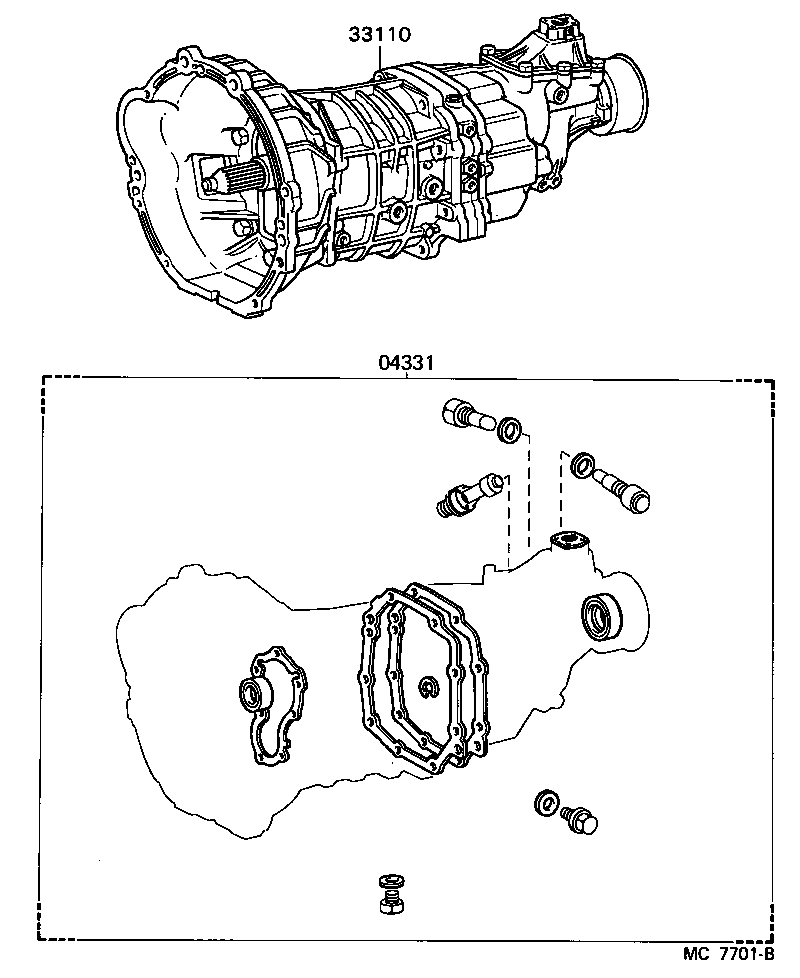

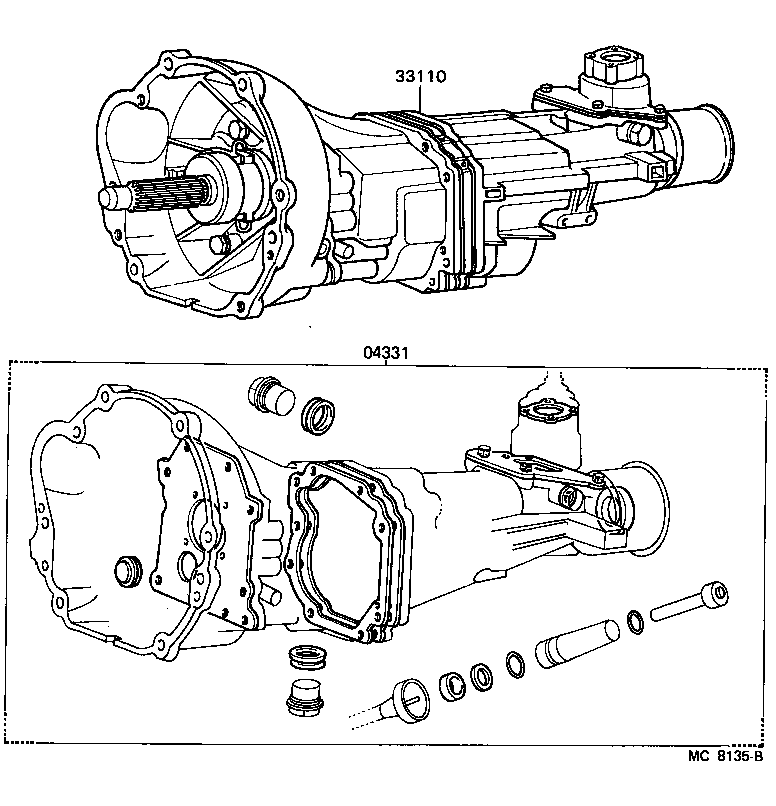

Figure MC7688B MC7688B 1982-01 → 1987-12 Figure MC7701B MC7701B 1982-01 → 1985-08 Figure MC7701B MC7701B 1982-09 → — Figure MC7701B MC7701B 1985-08 → 1991-11 Figure MC8135B MC8135B 1982-01 → 1985-08 Figure MC7304B MC7304B 1982-09 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
