Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

27 part groups · 9 illustrations

Illustrations

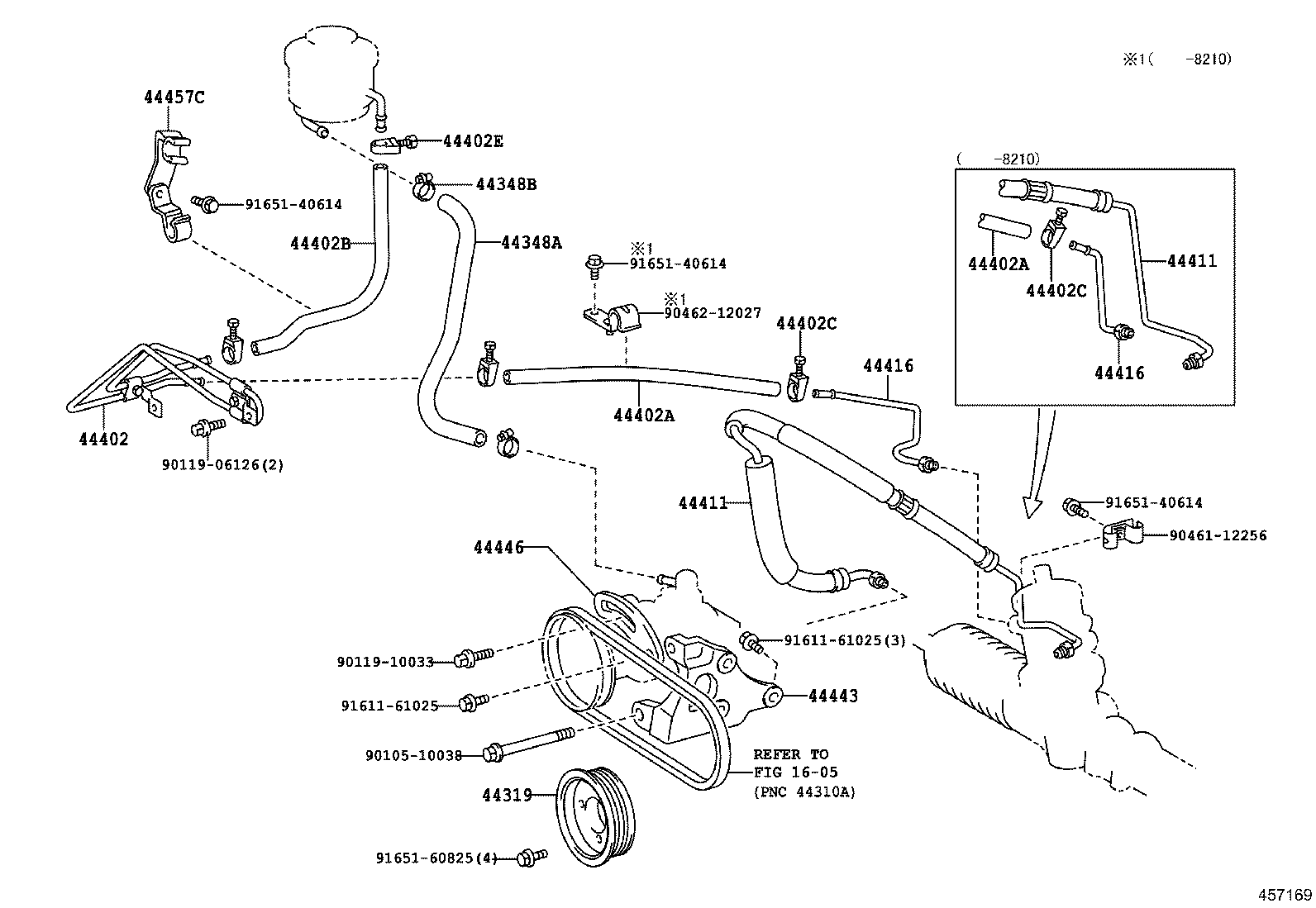

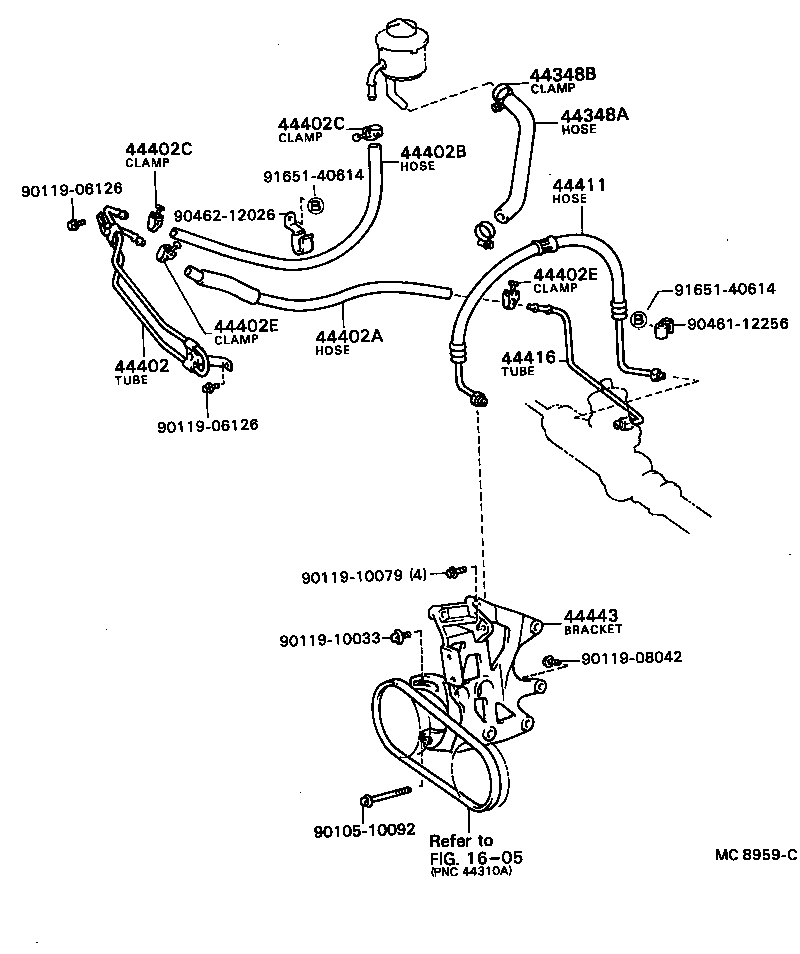

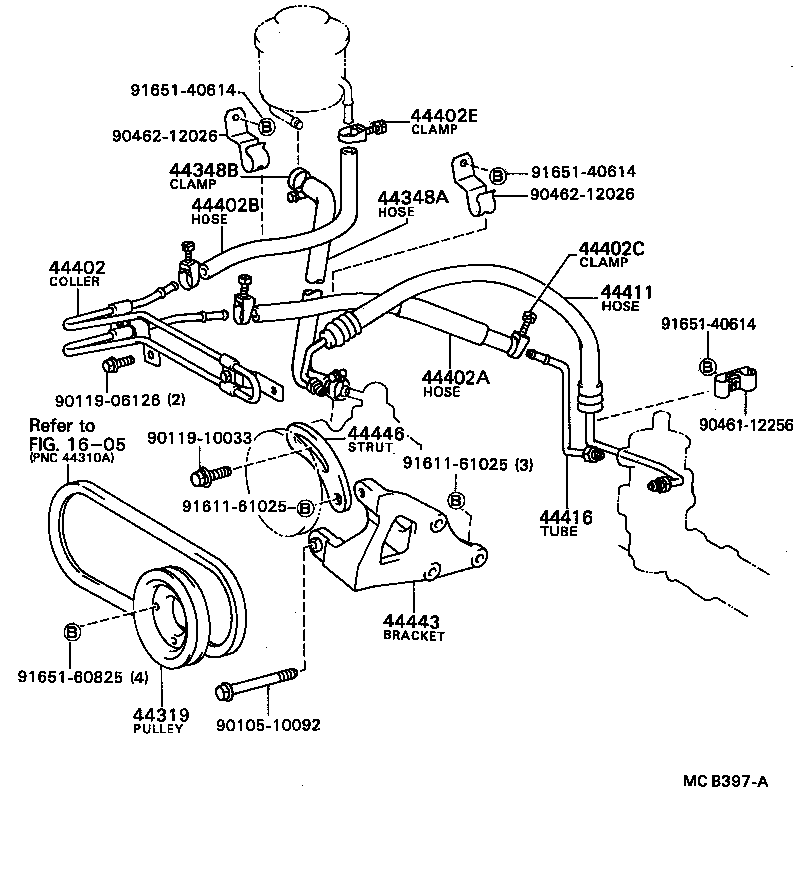

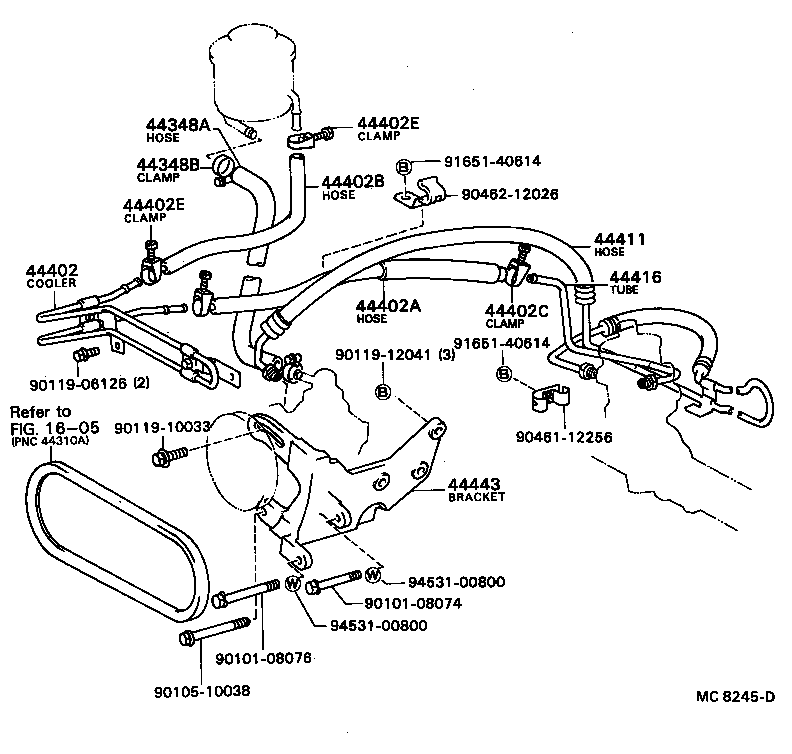

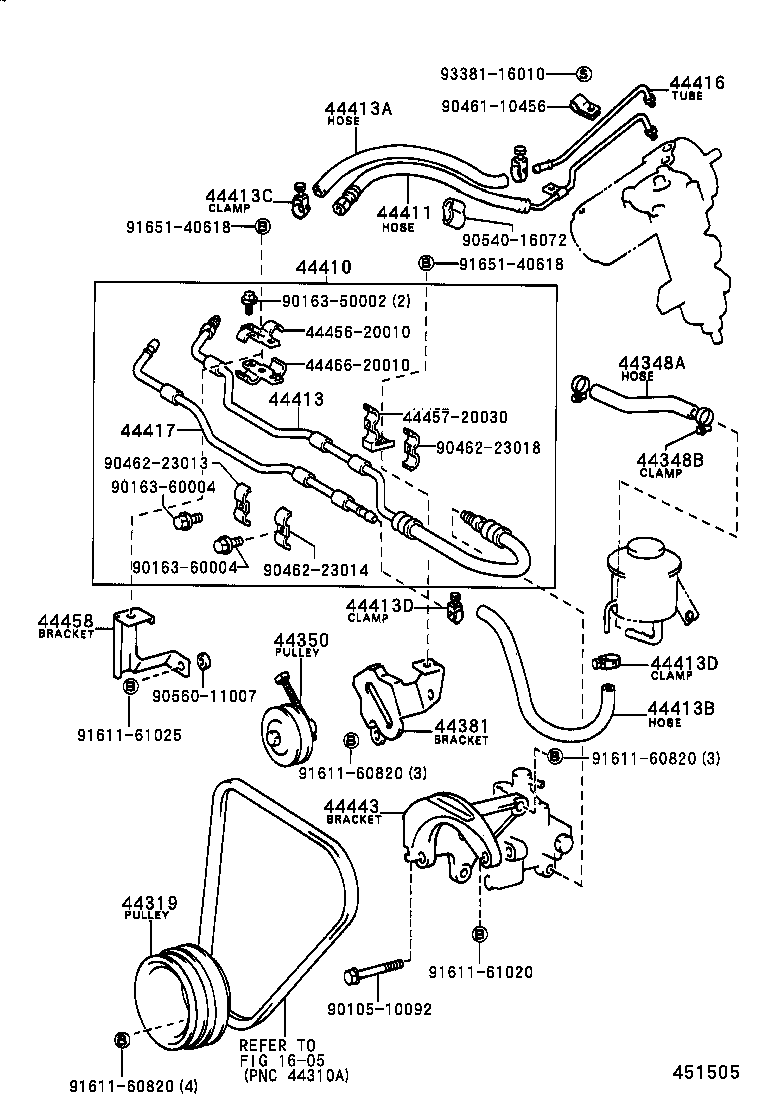

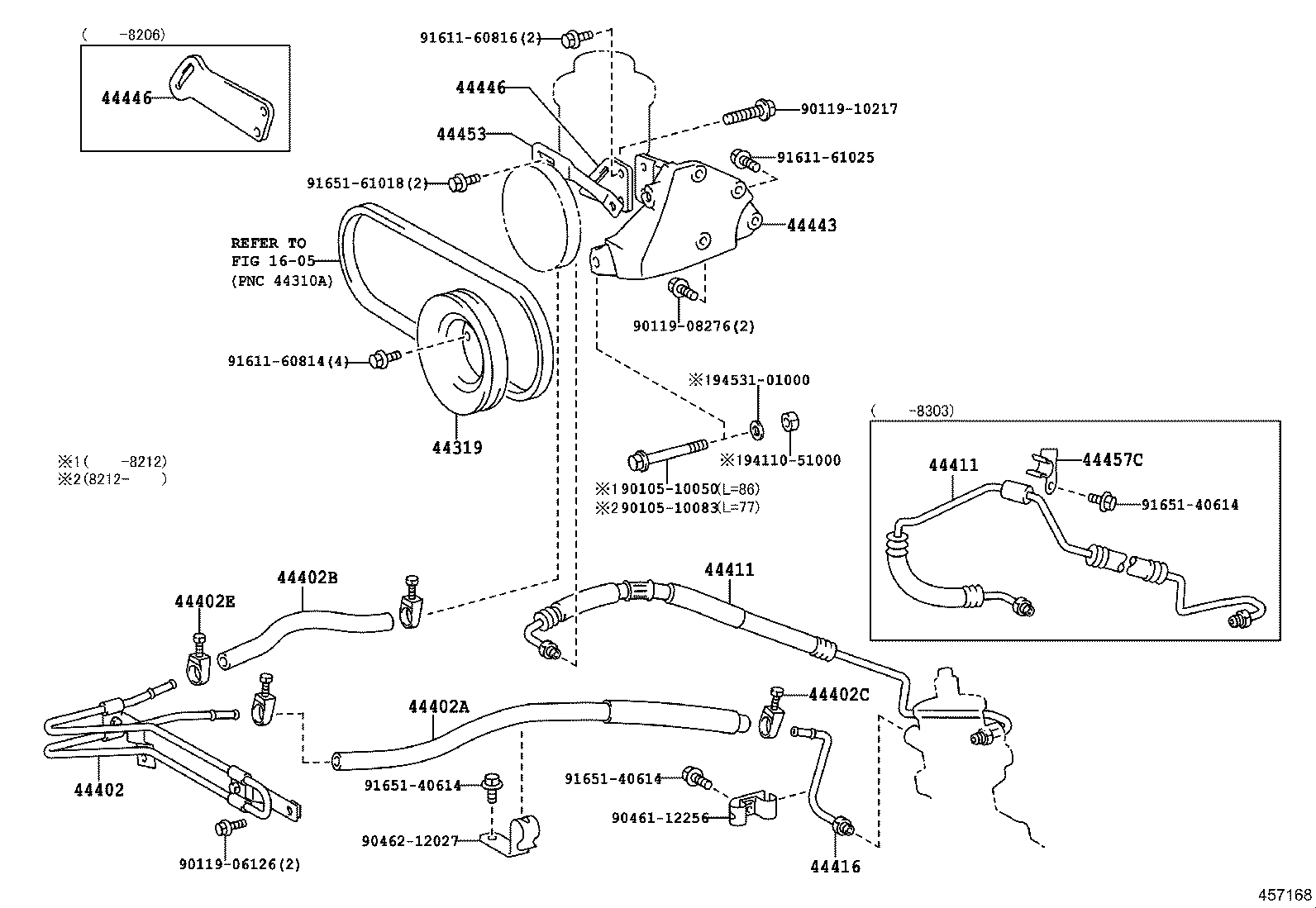

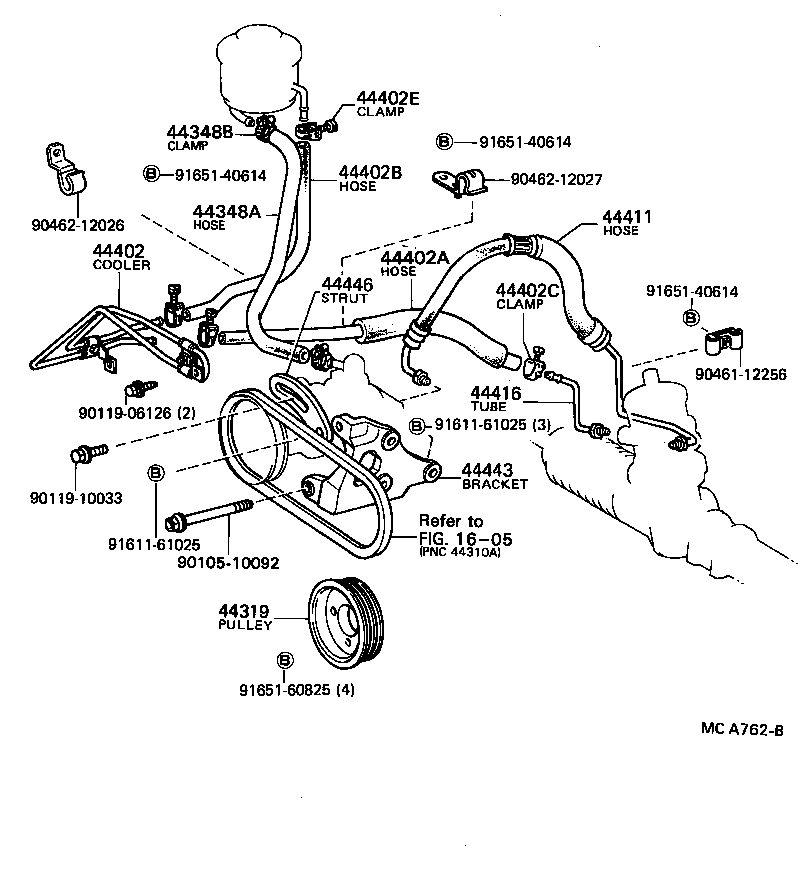

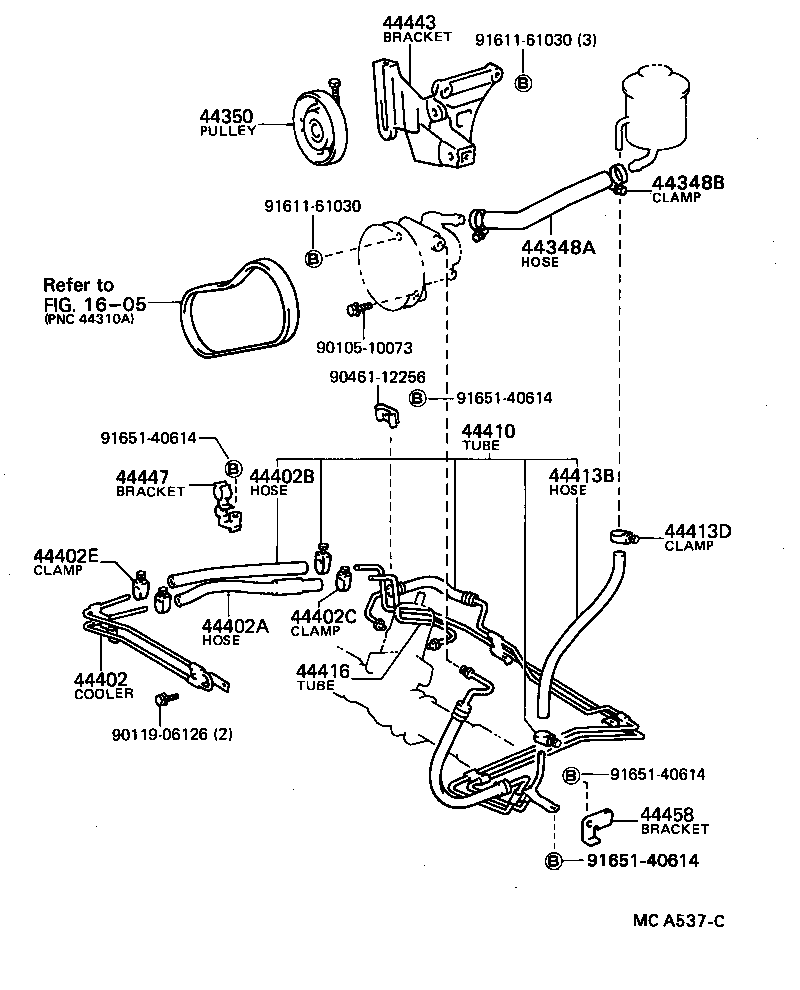

Figure MC8149B MC8149B 1982-01 → 1983-10 Figure MC8959C MC8959C 1982-10 → 1985-08 Figure 457168 457168 1982-01 → 1987-12 Figure MCA537C MCA537C 1982-10 → 1985-08 Figure 457169 457169 1982-01 → 1983-05 Figure MCA762B MCA762B 1983-05 → 1987-12 Figure MC8245D MC8245D 1982-01 → 1982-10 Figure MCB397A MCB397A 1982-01 → 1983-10 Figure 451505 451505 1982-09 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44413A Hose(FOR RETURN TUBE OUTLET)
44413B Hose(FOR RESERVOIR TANK INLET)
44413C Clamp(FOR RETURN TUBE OUTLET HOSE)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417 Tube, Return, NO.2
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44447 Bracket, Power Steering Oil Cooler Tube Support
44453 Stay, Pump, Front
44457C Bracket, Power Steering Tube Support, NO.1
44458 Bracket, Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
