Toyota Corona

1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan

Discontinued model Data version 1998-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

37 part groups · 5 illustrations

Illustrations

478689 1982-01 → 1985-08

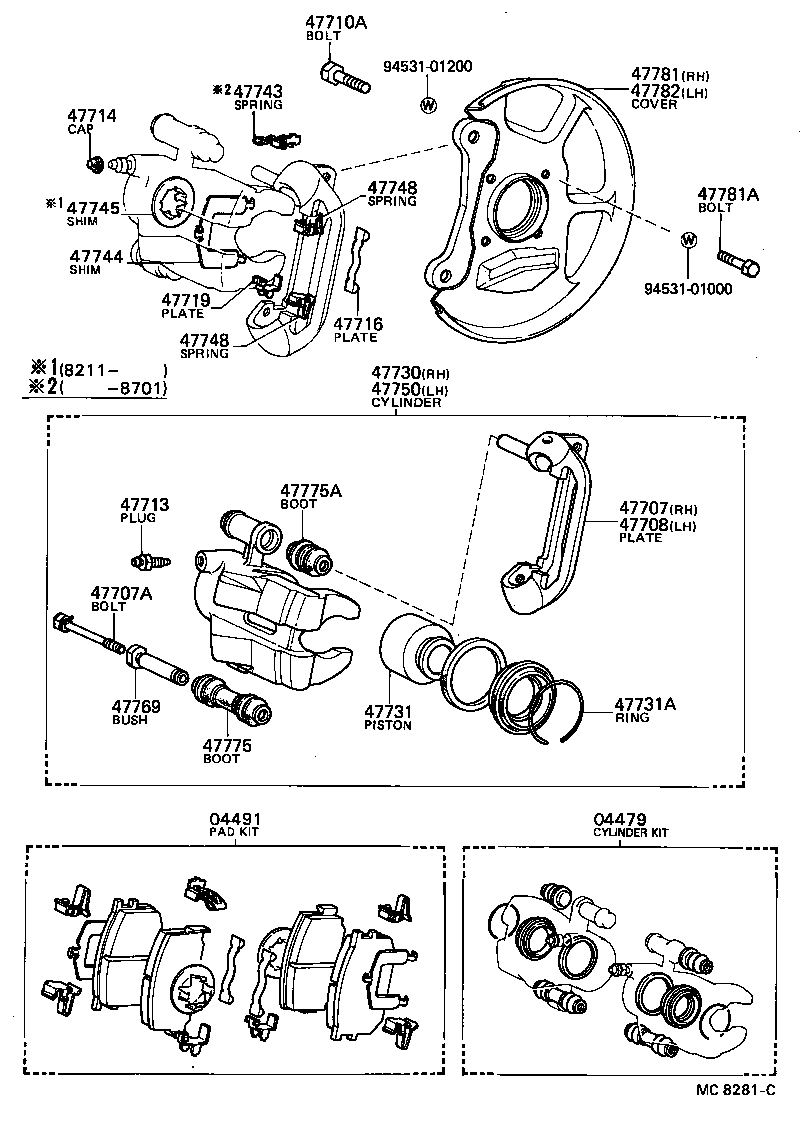

MC8281C 1982-01 → 1987-12

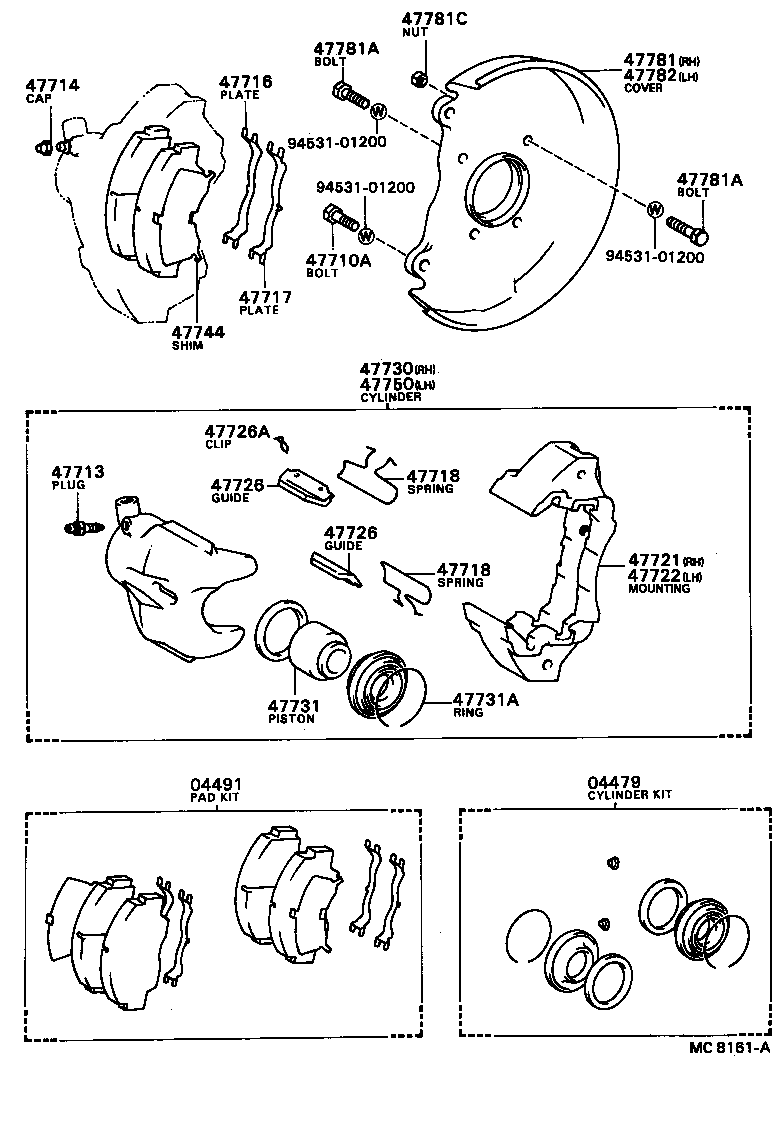

MC8161A 1982-01 → 1987-12

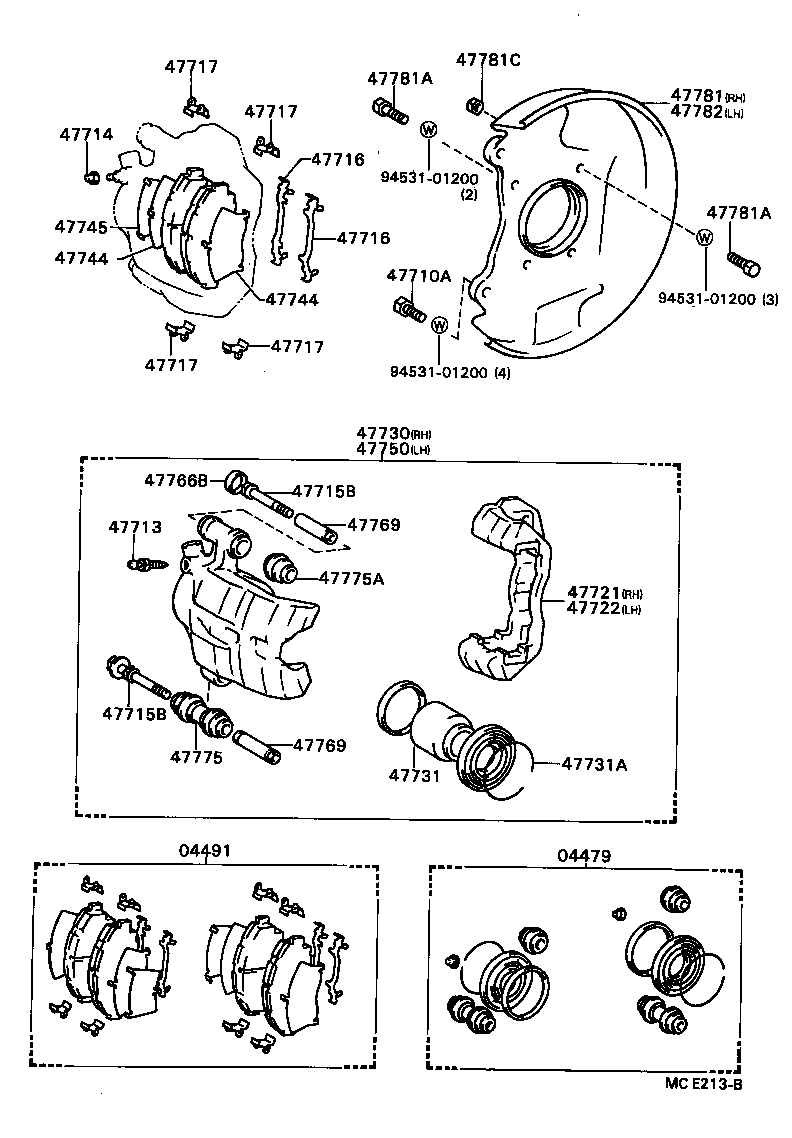

MCE213B 1987-12 → —

MCR482A 1982-01 → —

Part groups

PNC	Description
04465	Pad Kit, Disc Brake, Front
04479	Cylinder Kit, Disc Brake, Front
04491	Pad Kit, Disc Brake, Front
04945	Shim Kit, Anti Squeal, Front
04947	Fitting Kit, Disc Brake, Front
47707	Plate Sub-assy, Disc Brake Torque, Front RH
47707A	Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE)
47708	Plate Sub-assy, Disc Brake Torque, Front LH
47710A	Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47713	Plug, Bleeder(FOR FRONT DISC BRAKE)
47714	Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47715	Pin, Main(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715B	Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47716	Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47717	Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47718	Spring, Front Disc Brake Cylinder Support
47719	Plate, Front Disc Brake Pad Guide
47721	Mounting, Front Disc Brake Cylinder, RH
47722	Mounting, Front Disc Brake Cylinder, LH
47726	Guide, Front Disc Brake Cylinder
47726A	Clip(FOR FRONT DISC BRAKE CYLINDER)
47730	Cylinder Assy, Front Disc Brake, RH
47731	Piston, Front Disc Brake
47731A	Ring, Set(FOR FRONT DISC BRAKE PISTON)
47743	Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47744	Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47745	Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47748	Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47750	Cylinder Assy, Disc Brake, LH
47766B	Cap, Cylinder Slide Pin
47769	Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47775	Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775A	Boot, Pin
47781	Cover, Disc Brake Dust, Front RH
47781A	Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781C	Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782	Cover, Disc Brake Dust, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
