Toyota Corona
1982-01 → 1998-04 · chassis TT14#,AT14#,ST140,RT141,YT140,CT14#,KT147 · catalogue 261150 · Japan
Discontinued model
Data version 1998-10

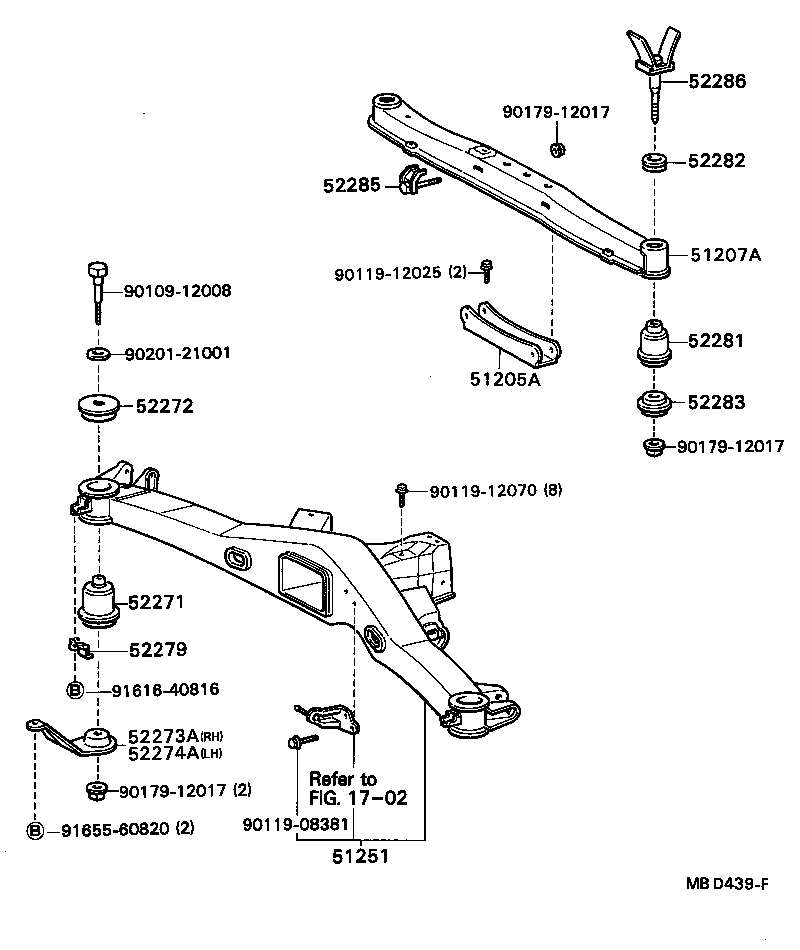

Suspension Crossmember & Under Cover
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51204B | Damper Sub-assy, Front Suspension Member |
| 51205A | Bracket Sub-assy, Differential Support |
| 51207A | Member Sub-assy, Differential Support |
| 51251 | Member Sub-assy, Rear Suspension |
| 51296 | Bolt, Front Suspension Member Mounting |
| 51441 | Cover, Engine Under, NO.1 |
| 51448 | Protector, Oil Pan |
| 51961 | Hook, NO.1 |
| 52271 | Cushion, Rear Suspension Member |
| 52272 | Stopper, Rear Suspension Member, Upper |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52279 | Retainer, Rear Suspension Member Cushion |
| 52281 | Cushion, Differential Support Member |
| 52282 | Stopper, Differential Support Member, Upper |
| 52283 | Stopper, Differential Support Member, Lower |
| 52285 | Bolt, Differential Support Member Mounting, NO.1 |
| 52286 | Bolt, Differential Support Member Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
